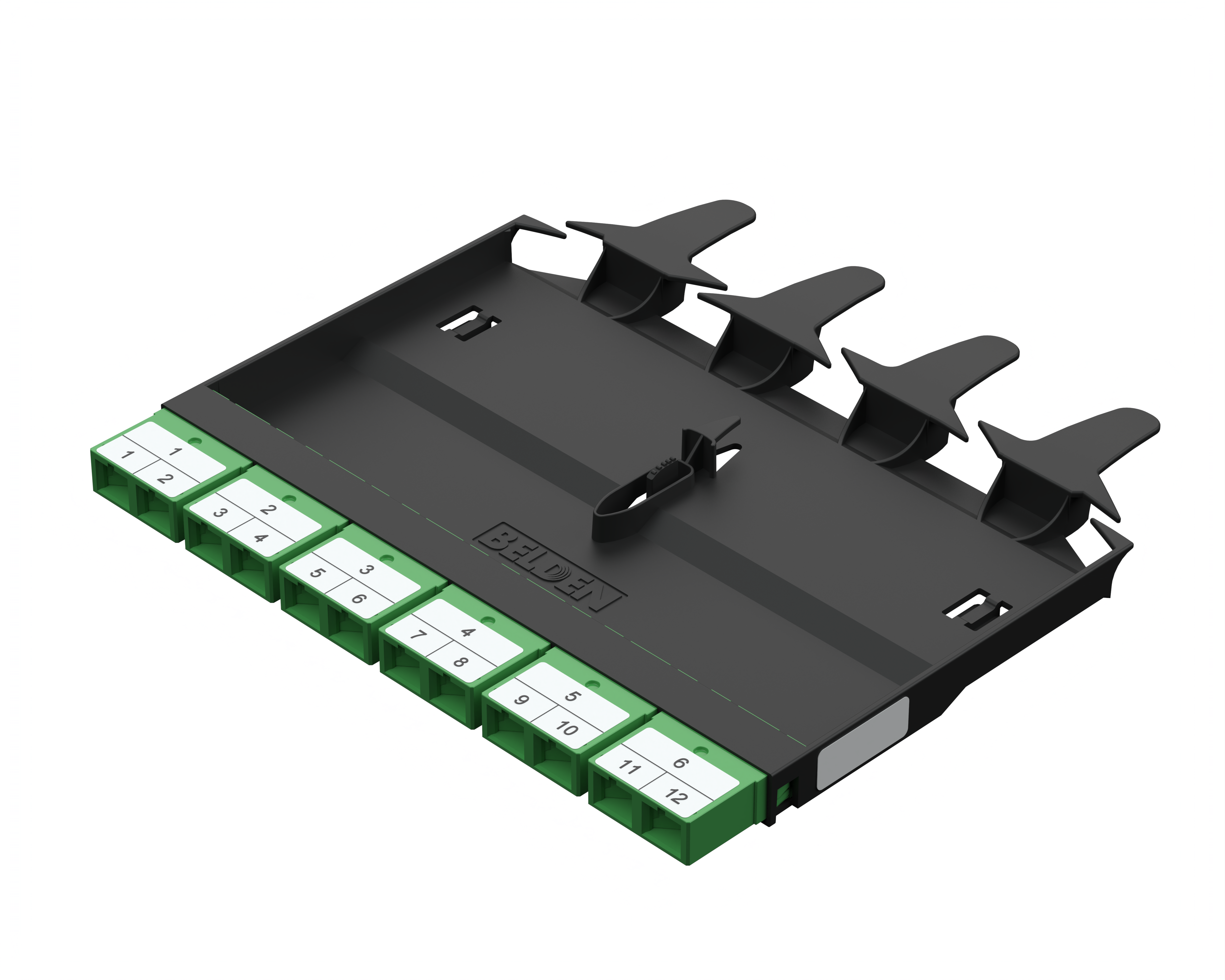

FX DCX FRAME, OS2, 06 PORTS, SC DUPLEX/APC
FX DCX FRAME, OS2, 06 PORTS, SC DUPLEX/APC, GREEN ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Weight | 0.168 lbs |
|---|---|
| Overall Height | 0.5 in |
| Overall Width | 6.8 in |
| Overall Depth | 6.5 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 6 Ports |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Frame | Plastic - UL94V-0 | Black |
| Front Connector Body | Plastic - UL94V-0 | Green |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.2 Revision Date: 11-24-2025 |
|---|
