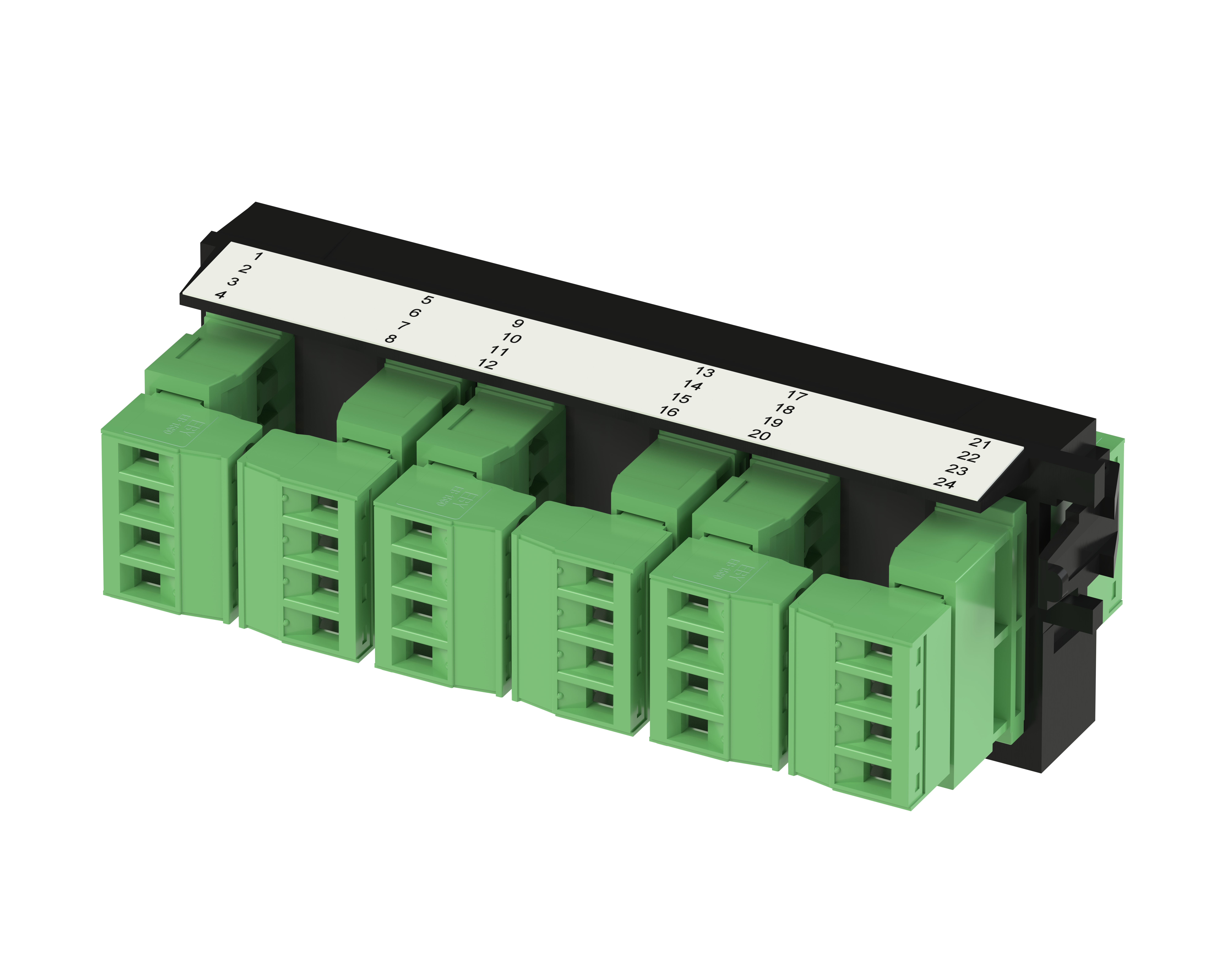

FX UHD FRAME, COPPER ADAPTERS, 24 PORTS
FX UHD FRAME, 24 PORTS, GREEN COPPER ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.29 lbs |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.46 in |
| Overall Depth | 2.20 in |
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Current Rating | 20 A |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Frame | PC Lexan 940 | Black |
| Front Connector Body | Plastic - UL94V-0 | Green |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FiberExpress Ultra Patch panels |
|---|
Product Notes
| Packaging | Individually packaged in a plastic bag. |
|---|
History
| Update and Revision | Revision Number: 0.8 Revision Date: 03-25-2026 |
|---|
