Modular Connectors - FX UHD FRAME

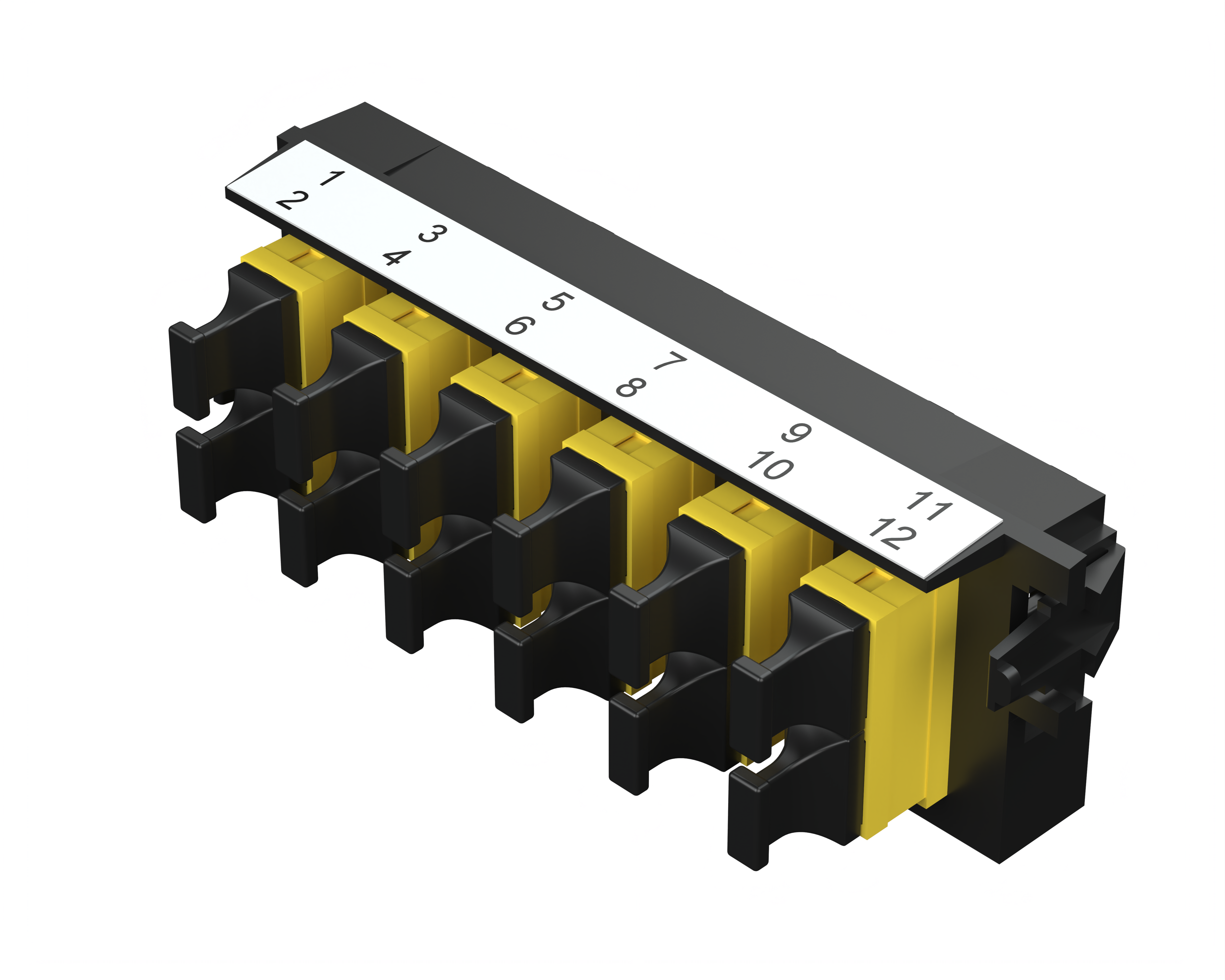

FX UHD FRAME, OM4, 12 PORTS, MPO-12 (KEY UP/ KEY DOWN), YELLOW ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.25 lbs |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.46 in |
| Overall Length | 1.75 in |
Fiber Cable Construction
| Fiber Type | OM4 |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Durabilities@Termination1 | 500 Cycles |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Frame | Plastic - UL94V-0 | Black |
| Front Connector Body | Plastic - UL94V-0 | Yellow |
Fiber Connector Performance
| Description | OM4 |
|---|---|
| Total Insertion Loss | 0.35 dB |
| Total Return Loss | -25 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Dust Caps |
|---|---|
| Related Parts | FiberExpress Ultra Patch panels, Pre-terminated MPO low loss cable assemblies |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (60/box) |
|---|
History
| Update and Revision | Revision Number: 0.6 Revision Date: 10-23-2025 |
|---|
