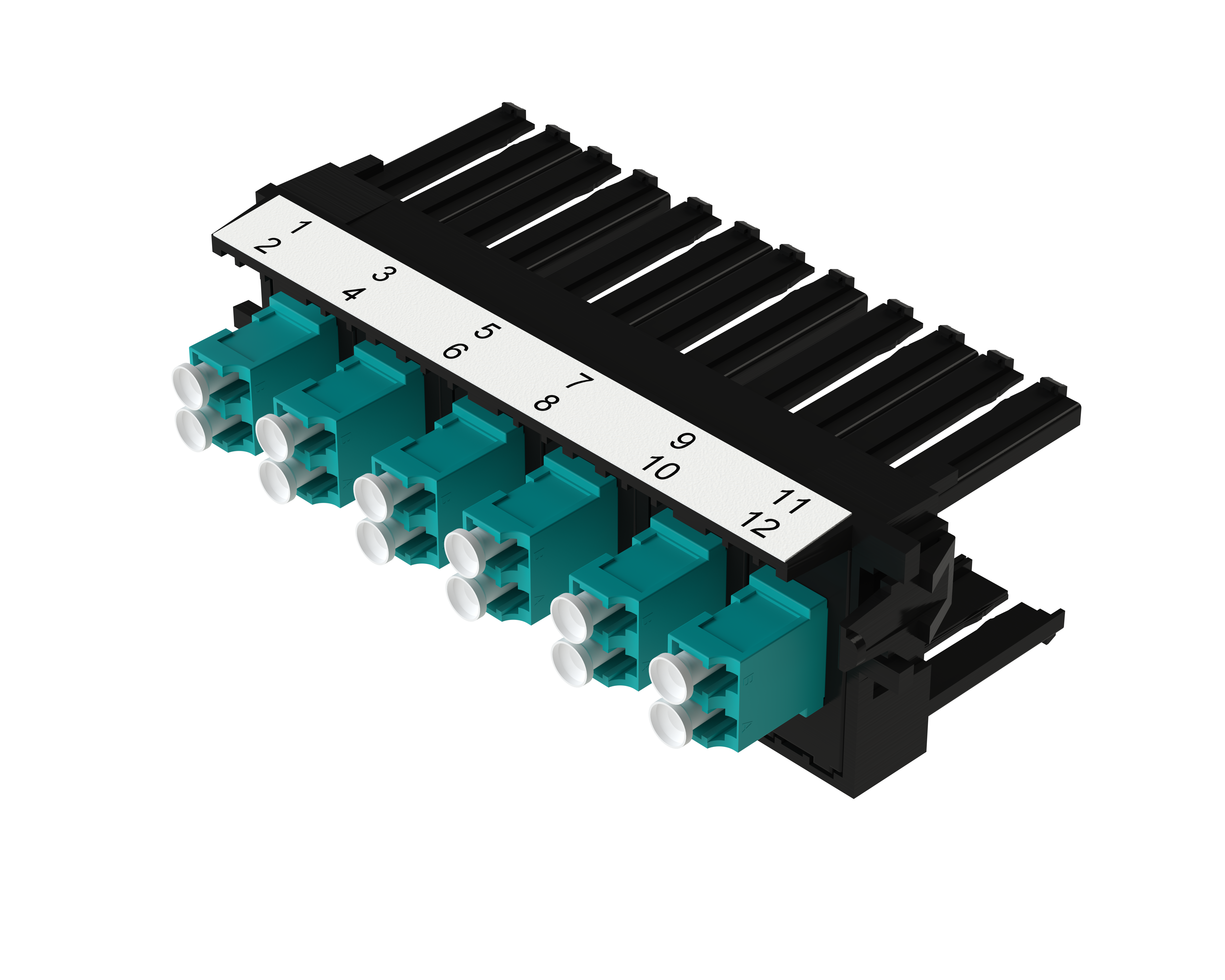

FXU Frame OM3 6P LC DUPLEX
FX Ultra Frame, OM3, 6 Ports, LC Duplex, Aqua Adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FF3U06LD is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Port Count | Fiber Count | Order |
|---|---|---|---|---|
| FF3U06LD | LC Duplex | 6 Port | 6 | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.25 |
|---|---|
| Overall Height | 1.5 |
| Overall Width | 4.46 in |
| Overall Depth | 2.2 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Frame | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Aqua | LC Duplex |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Dust Caps |
|---|---|
| Related Parts | FiberExpress Ultra Patch panels, Pre-terminated MPO low loss cable assemblies |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (60/box) |
|---|
History
| Update and Revision | Revision Number: 0.9 Revision Date: 10-23-2025 |
|---|
