Faceplates and Panels - DCX Splice Cassette LC Duplex

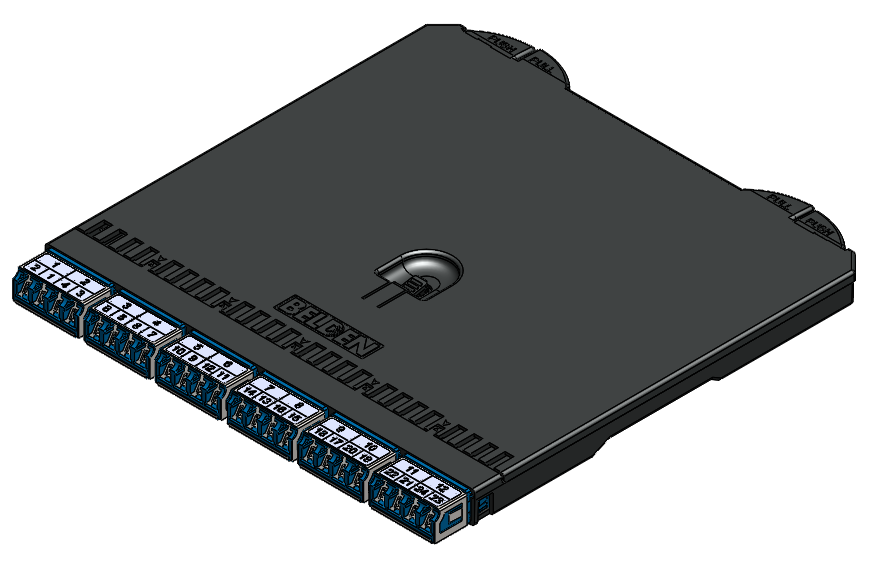

FX DCX SPLICE CASSETTE, OS2, 12 PORTS, LC DUPLEX (FLIPPED PAIR) WITH 250μm RIBBON PIGTAIL, BLUE ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | DCX, Data Centers, Central Equipment Room |
Construction
| Weight | 0.437 lbs |
|---|---|
| Overall Height | 0.500 in |
| Overall Width | 6.830 in |
| Overall Length | 7.190 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 24Fibers, 12 LC Duplex Ports |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Blue | LC Duplex w/ Internal Shutters |
| Adapter Sleeve | Zirconia-Ceramic |
Fiber Connector Performance
| Description | LC Duplex |
|---|---|
| Max. Insertion Loss | 0.25 dB |
| Min. Return Loss | -55 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250μm ribbon pigtails, splice chip, splice protectors |
|---|---|
| Related Parts | DCX,Frames Modules & Patch Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.13 Revision Date: 02-24-2026 |
|---|
