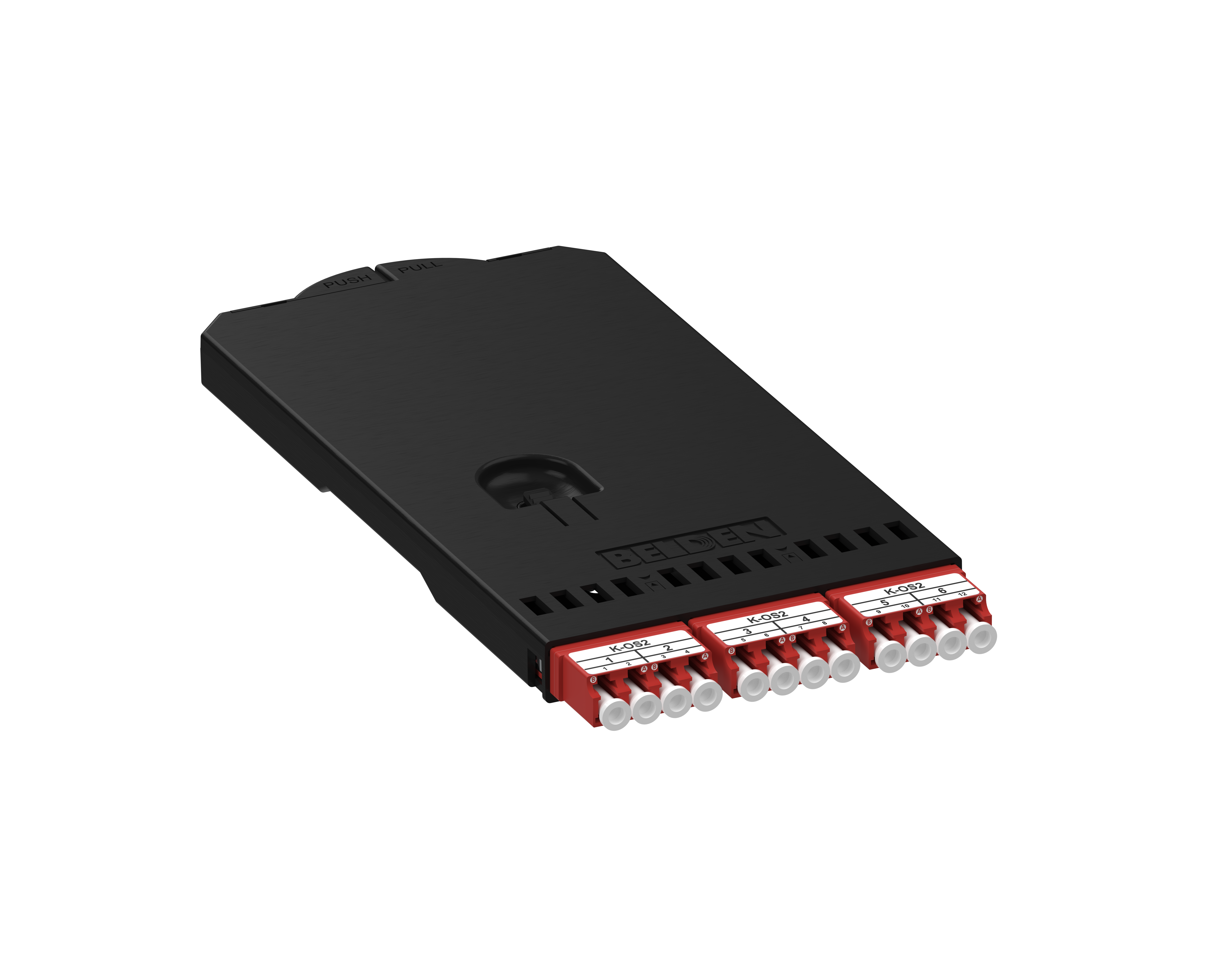

FX DCX Splice Cassette, OS2, 06 Ports LC KEYED Duplex with 250μm Mass Fusion Ribbon Pigtails
FX DCX Splice Cassette, OS2, 06 Ports LC KEYED Duplex with 250μm Mass fusion ribbon Pigtails, Varying adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FCSD06LKFMNx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Order |
|---|---|---|
| FCSD06LKFMNA | LC Keyed Duplex Aqua | Order online |
| FCSD06LKFMNB | LC Keyed Duplex Blue | Order online |
| FCSD06LKFMNG | LC Keyed Duplex Green | Order online |
| FCSD06LKFMNM | LC Keyed Duplex Brown | Order online |
| FCSD06LKFMNN | LC Keyed Duplex Black | Order online |
| FCSD06LKFMNO | LC Keyed Duplex Orange | Order online |
| FCSD06LKFMNP | LC Keyed Duplex Rose | Order online |
| FCSD06LKFMNR | LC Keyed Duplex Red | Order online |
| FCSD06LKFMNS | LC Keyed Duplex Gray | Order online |
| FCSD06LKFMNV | LC Keyed Duplex Violet | Order online |
| FCSD06LKFMNW | LC Keyed Duplex White | Order online |
| FCSD06LKFMNY | LC Keyed Duplex Yellow | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | DCX, Data Centers, Central Equipment Room |
Construction
| Weight | 0.189 lbs |
|---|---|
| Overall Height | 0.500 in |
| Overall Width | 3.410 in |
| Overall Length | 7.200 ft |
Physical Specifications
| Max Capacity | 12 Fibers |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Follow Variant table | LC KEYED Duplex |
| Adapter Sleve | Zirconia-Ceramic |
Fiber Connector Performance
| Max. Insertion Loss | 0.25 dB |
|---|---|
| Min. Return Loss | -30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250μm pigtails, splice chip, splice protection sleeve, micro splice protection sleeve, cable retention rubber: 2mm & 3mm |
|---|---|
| Related Parts | DCX Frames, Modules, and Patch Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.10 Revision Date: 10-22-2025 |
|---|
