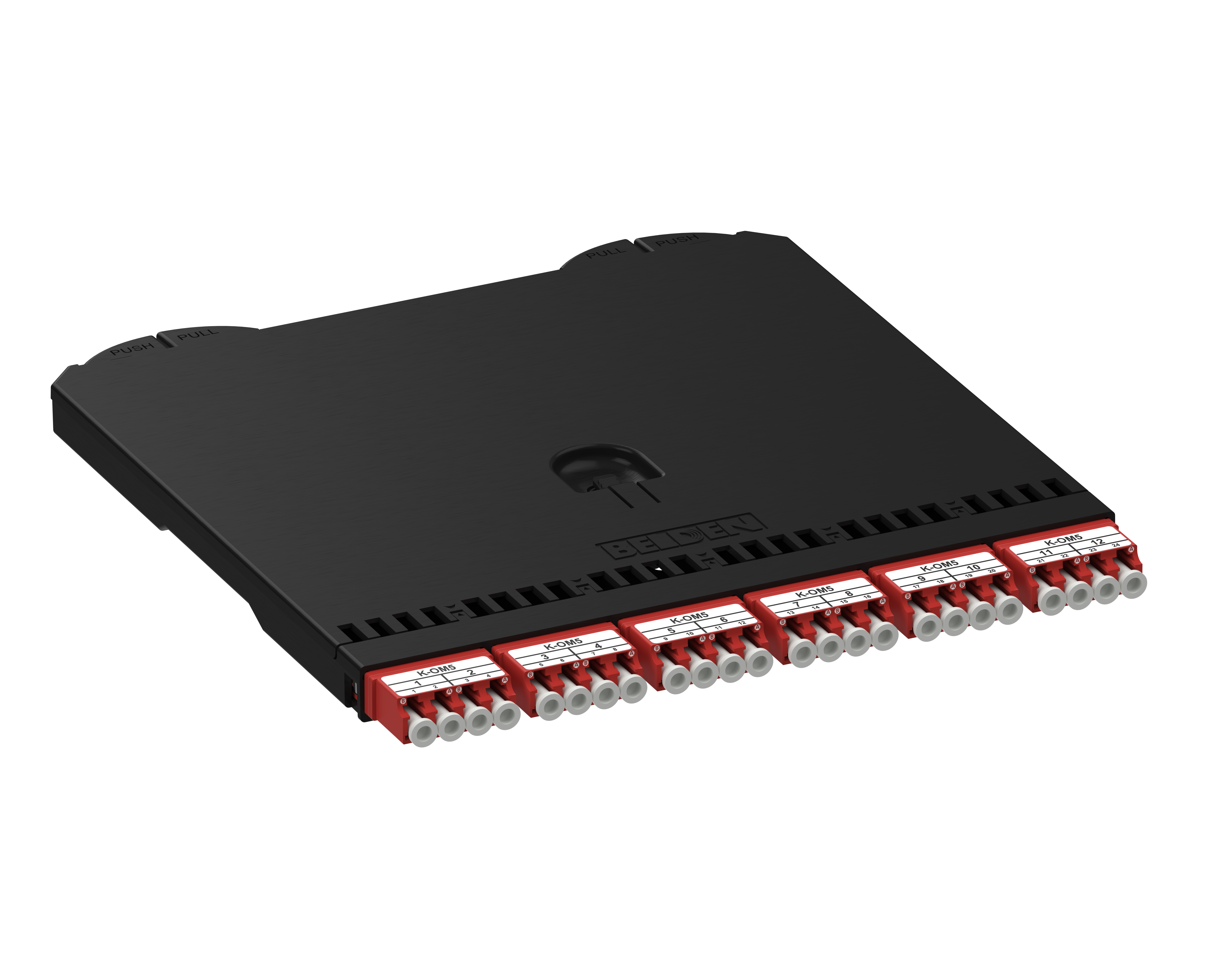

FX DCX Splice Cassette, OM5, 12 Ports LC KEYED Duplex with 250μm Pigtails
FX DCX Splice Cassette, OM5, 12 Ports LC KEYED Duplex with 250μm Pigtails, Varying adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FC5D12LKFPNx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Order |
|---|---|---|
| FC5D12LKFPNA | LC Keyed Duplex Aqua | Order online |
| FC5D12LKFPNB | LC Keyed Duplex Blue | Order online |
| FC5D12LKFPNG | LC Keyed Duplex Green | Order online |
| FC5D12LKFPNM | LC Keyed Duplex Brown | Order online |
| FC5D12LKFPNN | LC Keyed Duplex Black | Order online |
| FC5D12LKFPNO | LC Keyed Duplex Orange | Order online |
| FC5D12LKFPNP | LC Keyed Duplex Rose | Order online |
| FC5D12LKFPNR | LC Keyed Duplex Red | Order online |
| FC5D12LKFPNS | LC Keyed Duplex Gray | Order online |
| FC5D12LKFPNV | LC Keyed Duplex Violet | Order online |
| FC5D12LKFPNW | LC Keyed Duplex White | Order online |
| FC5D12LKFPNY | LC Keyed Duplex Yellow | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | DCX, Data Centers, Central Equipment Room |
Construction
| Weight | 0.189 lbs |
|---|---|
| Overall Height | 0.500 in |
| Overall Width | 6.830 in |
| Overall Length | 7.200 ft |
Physical Specifications
| Max Capacity | 24 Fibers |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Follow Variant table | LC KEYED Duplex |
| Adapter Sleve | Zirconia-Ceramic |
Fiber Connector Performance
| Max. Insertion Loss | 0.25 dB |
|---|---|
| Min. Return Loss | -30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250μm color coded pigtails, splice chip, splice protection sleeve, micro splice protection sleeve, cable retention rubber: 2mm & 3mm |
|---|---|
| Related Parts | DCX Frames, Modules, and Patch Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.10 Revision Date: 10-22-2025 |
|---|
