FX Ultra Cassette OM4 12P LC Duplex, MPO12 (M) EV_ADP

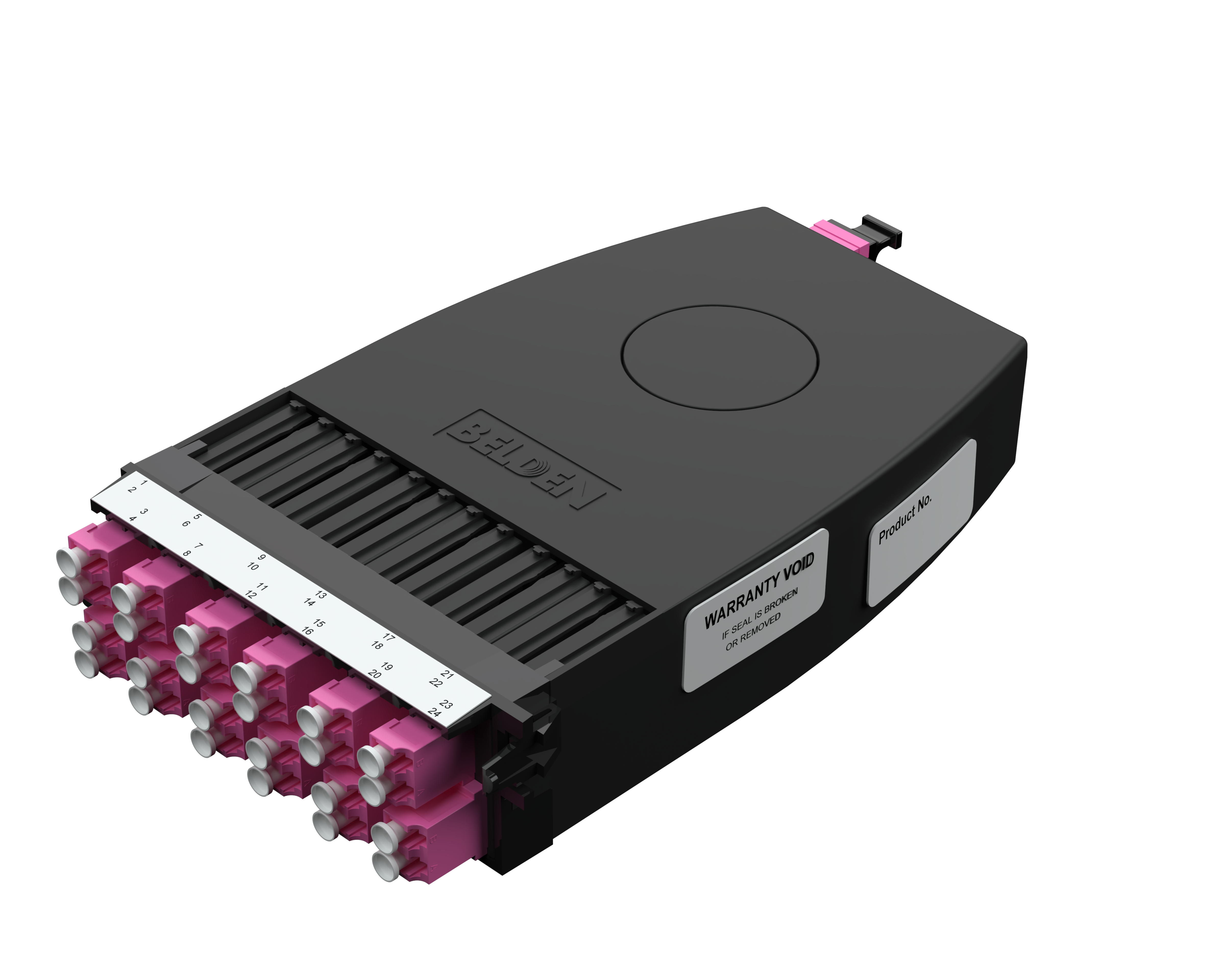

FX ULTRA CASSETTE, OM4, 12 PORTS, LC Duplex, MPO-12 (MALE), TYPE-A ALT, ERIKA VIOLET ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Information
| Polarity Identification | Type-A ALT |
|---|---|
| Update and Revision | Revision Number: 0.8 Revision Date: 04-07-2026 |
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Ultra Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.432 lbs |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.5 in |
| Overall Length | 7.9 in |
Fiber Cable Construction
| Fiber Type | OM4 |
|---|
Physical Specifications
| Max Capacity | 24 Fibers |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | 1 Inch Pullout |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Rear Connector Body | Plastic - UL94V-0 | Erika Violet | MPO Male |
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Erika Violet | LC Duplex |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Description | OM4 |
|---|---|
| Total Insertion Loss | 0.35 dB |
| Total Return Loss | -25 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX UHD & FXU Patch Panels, FX MPO Trunks |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
|---|---|
| Notes | Please refer to the label on the back of the cassette for appropriate front port number configuration |
History
| Update and Revision | Revision Number: 0.8 Revision Date: 04-07-2026 |
|---|
