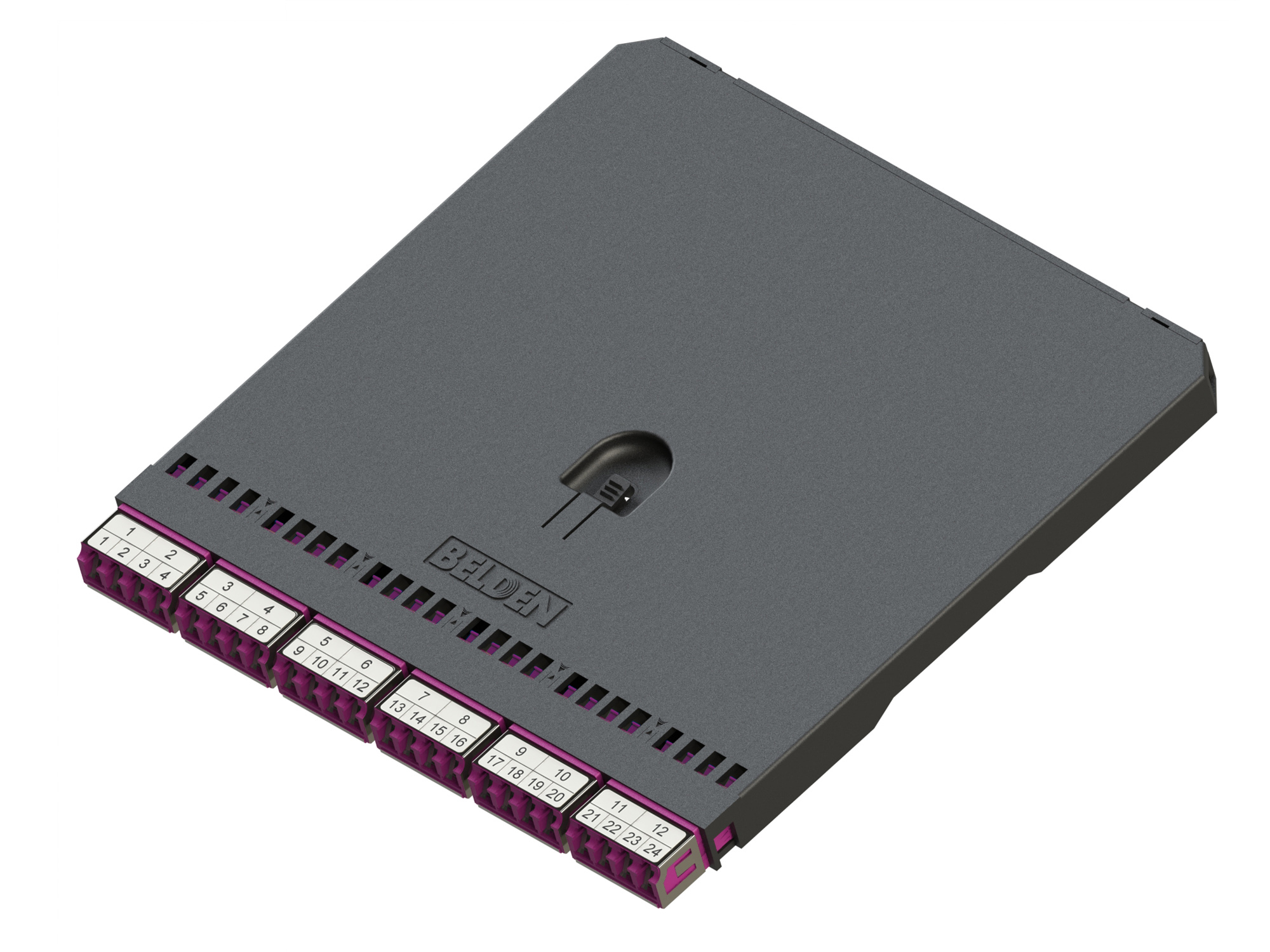

FX DCX Splice Cassette, OM4, 12 Ports LC Duplex
FX DCX Splice Cassette, OM4, 12 Ports LC Duplex, Erika Violet Adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FC4D12LDFS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Order |
|---|---|---|
| FC4D12LDFS | LC Duplex | Order online |
Specifications
Product Overview
| Suitable Applications | DCX, Data Centers, Central Equipment Room |
|---|
Construction
| Weight | 0.360 lbs |
|---|---|
| Overall Height | 0.500 in |
| Overall Width | 6.830 in |
| Overall Depth | 7.190 in |
Physical Specifications
| Max Capacity | 24 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Erika Violet | LC Duplex |
| Adapter Sleeve | Zirconia-Ceramic |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Cable rubber retention (2mm, 3mm) |
|---|---|
| Related Parts | DCX Frames, Modules, and Patch Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.180 Revision Date: 10-21-2025 |
|---|
