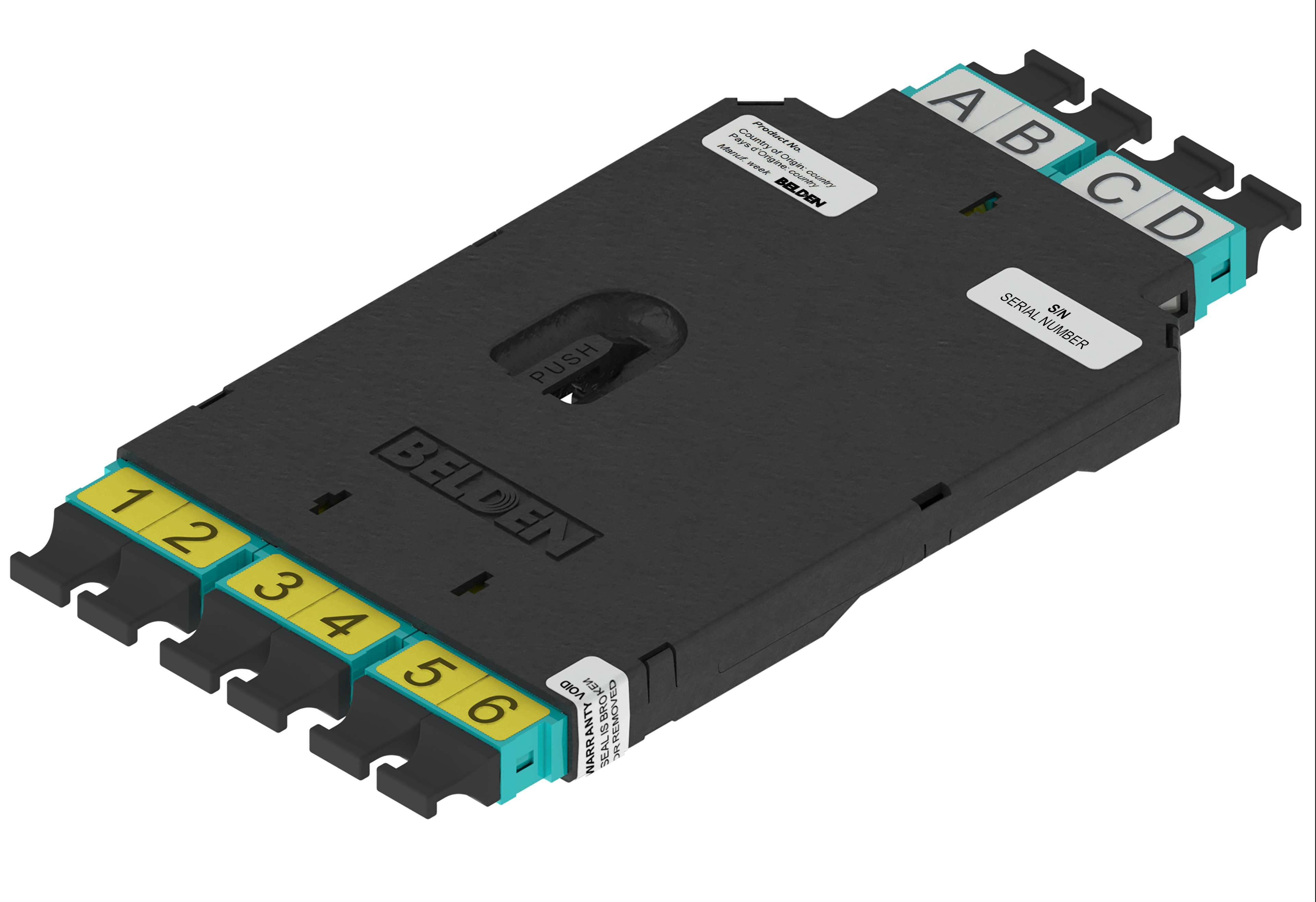

FX DCX CASS OM3 06P MPO12(F) MPO12(M)/8F ALT AQ_ADP
FX DCX CASSETTE, OM3, 06 PORTS, MPO-12 (FEMALE), MPO-12(MALE) 8F, ALTERNATE, AQUA ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Cross Connect Solutions, Telecommunication Rooms, Main Distribution Rooms, Data Centers |
|---|
Construction
| Weight | 0.210 lbs |
|---|---|
| Overall Height | 0.500 in |
| Overall Width | 3.411 in |
| Overall Depth | 7.064 in |
Physical Specifications
| Max Capacity | 6 Ports MPO - Base-8 - 48 Fibers |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Front Connector/Adapter | Plastic - UL94V-0 | Aqua | MPO Male |
| Rear Connector/Adapter | Plastic - UL94V-0 | Aqua | MPO Female |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Standards
| TIA/EIA Compliance | TIA-568.3 |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Related Parts | DCX Patch Panels, DCX MPO Trunks |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.13 Revision Date: 10-21-2025 |
|---|
