DCX STUB OS2 24F LC/UPC_DX OPEN 20M OFNP FL_RB TYP_A YL_JKT

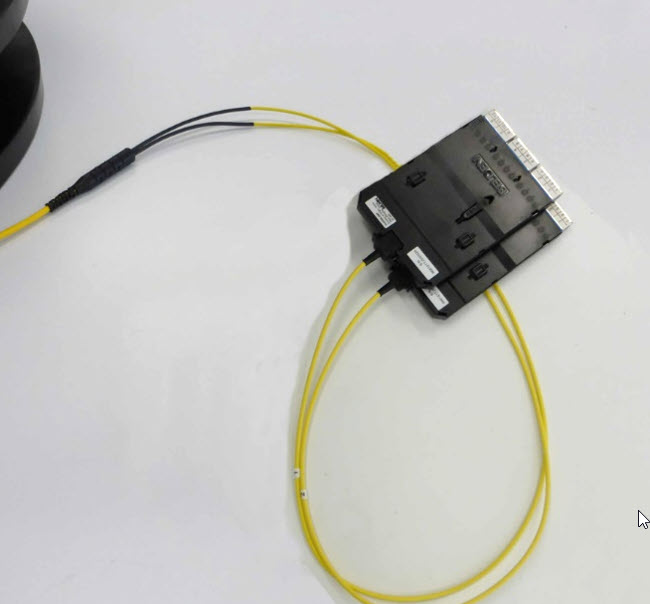

FX DCX STUB TRUNK, OS2, 24 FIBERS, PRE-TERM 12F CASSETTES (LC/UPC DUPLEX), JACKETED x 1.0M x IN-LINE - OPEN (250UM), OFNP, FLEXIBLE RIBBON, TYPE-A (STRAIGHT), 20 M, YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Overall Height | 0.448 in |
|---|---|
| Overall Width | 3.460 in |
| Overall Length | 4.795 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Blue |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Patch Side | LC Duplex | 0.25 dB | -55 dB |
| Trunk Side | Open |
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.15 Revision Date: 02-27-2026 |
|---|
