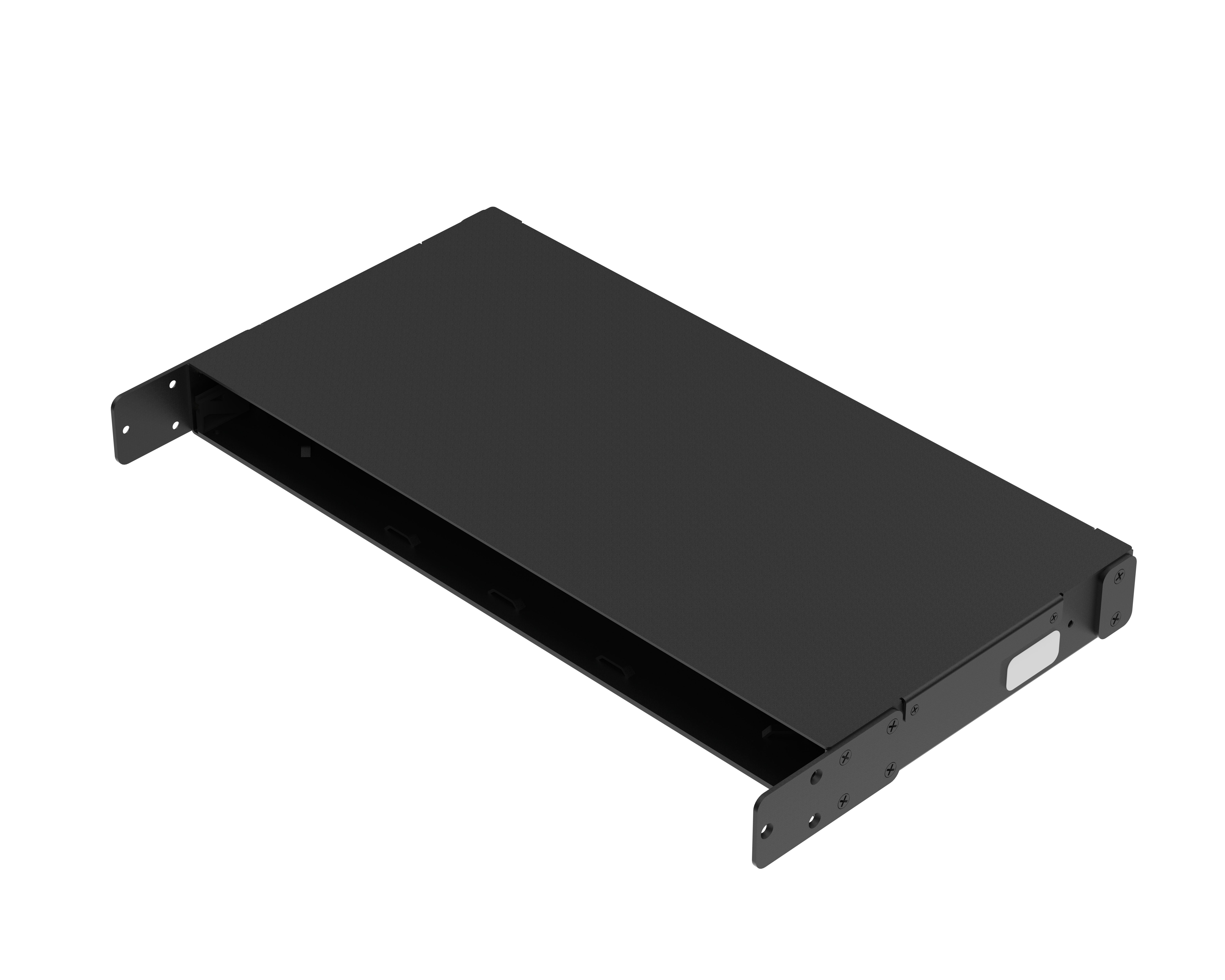

FX Ultra HD Splice Box Kit 1U, Black
FX Ultra HD 1U Splice Housing Kit, 144 Splices, Black
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 4.5 lbs |
|---|---|
| Overall Height | 1.72 in |
| Overall Width | 17.64 in |
| Overall Depth | 10.46 in |
Physical Specifications
| Max Capacity | 144 Splices |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Panel | Steel/Aluminum |
| Door | Aluminum |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Tie Wraps; Velcro Straps; 4 Splice trays; 144 splice holders (36 per Tray) |
|---|
Product Notes
| Packaging | Individually packaged in a cardboard box. |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com . Installation Guide: PX105685 |
History
| Update and Revision | Revision Number: 0.18 Revision Date: 02-12-2025 |
|---|
