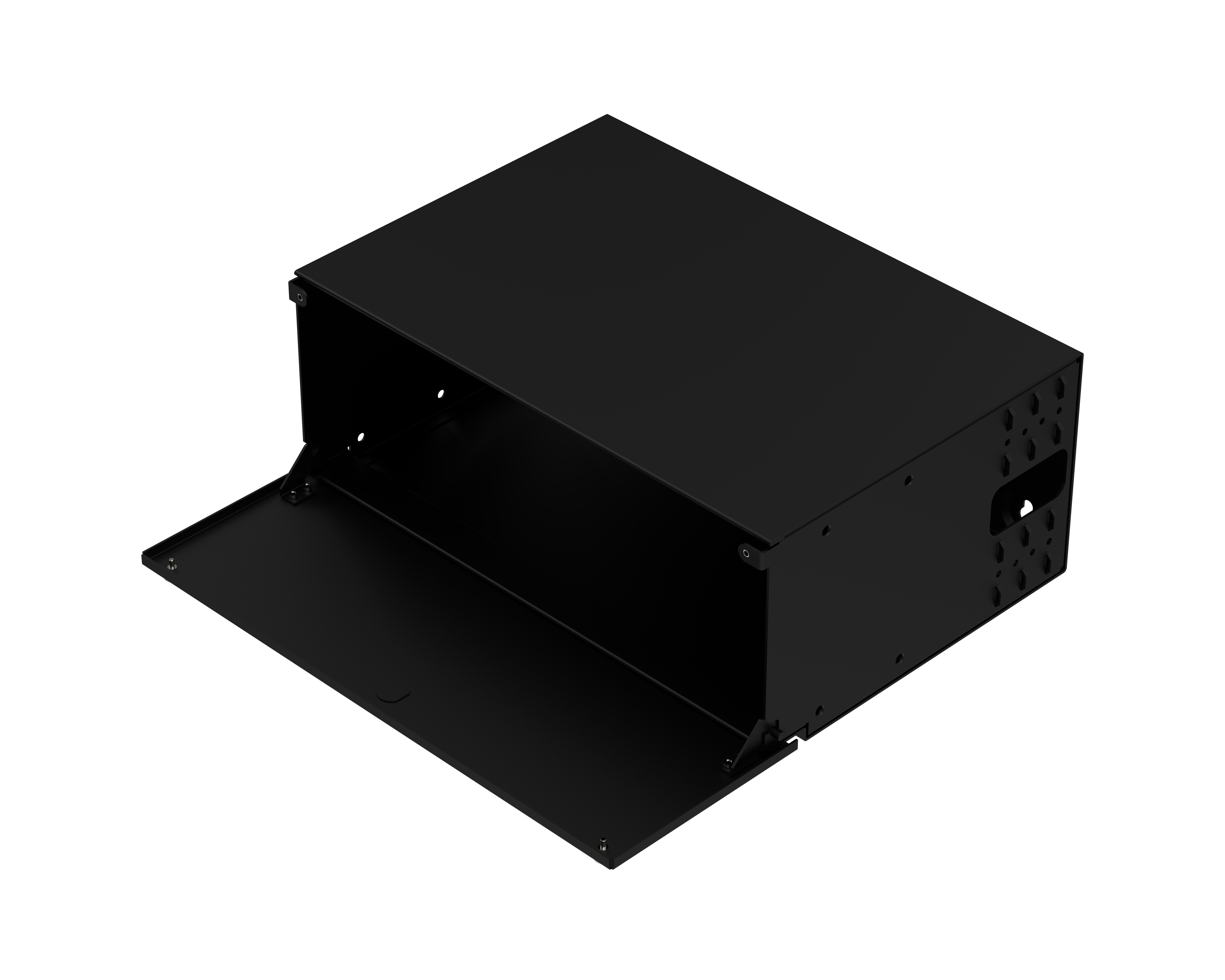

FXU RM SPLICE ENCLOSURE, 4U, BLACK
FX-ULTRA RACK MOUNT SPLICE BOX, 4U, BLACK
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Overall Height | 6.9 in |
|---|---|
| Overall Width | 17.5 in |
| Overall Depth | 12.46 in |
Physical Specifications
| Max Capacity | 6 Splice trays (10 or 12inch splice trays) |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Installation Temperature Range | -10°C To +60°C |
| Storage Temperature Range | -40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Main Chassis | GAGE # 14, C.R.S., ASTM A366 |
| Door | GAGE # 16, C.R.S., ASTM A366 |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Instruction package, 5.51in Cable ties (x20), 7.38in Long cable ties (x10), Hex Screw 12-24 x 1/2 (x4), Hex Washer 10-32 x 3/8 (x4), Lock Nut 1/4-20 (x4), Flat Screw 1/4-20 x .5 (x4) |
|---|---|
| Related Parts | FiberExpress Ultra Frames, Cassettes, Bezels, Trays |
Product Notes
| Packaging | Individually packaged in a cardboard box. |
|---|---|
| Notes | For proper installation refer to Installation Guide PX104743 included with the product |
History
| Update and Revision | Revision Number: 0.29 Revision Date: 02-10-2025 |
|---|
