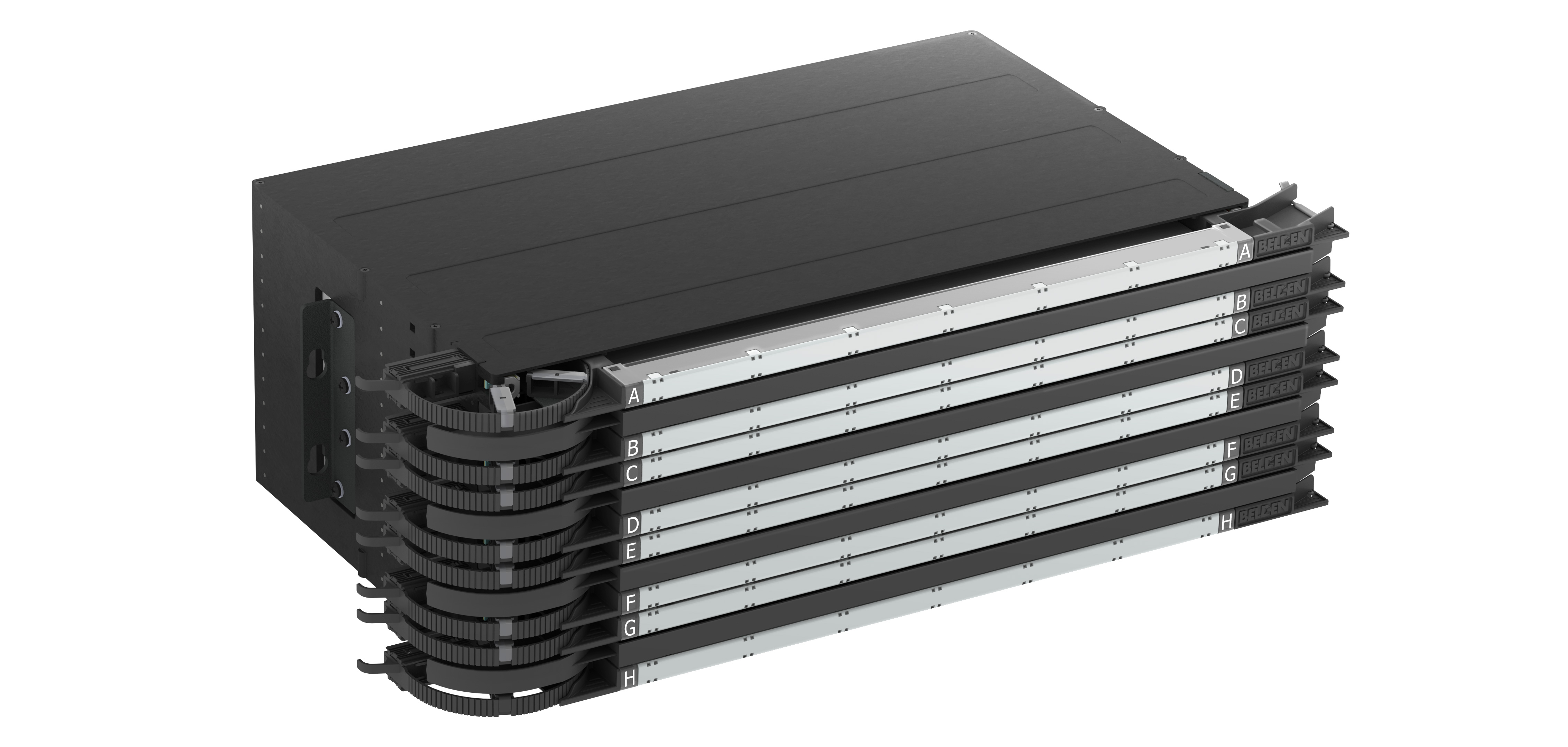

DCX HOUSING 384F LEFT-RIGHT, W/8 TRAYS, TRUNK & PCORD MGT
DCX HOUSING 384F-FIBER, LEFT-RIGHT CABLE FLOW, WITH 8 TRAYS, TRUNK & PATCH MANAGEMENT
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
|---|
Construction
| Weight | 12.57 lbs |
|---|---|
| Overall Height | 6.729 in |
| Overall Width | 20.807 in |
| Overall Depth | 11.81 in |
Physical Specifications
| Max Capacity | Holds 32 Cassettes/Frames, Base 12 or 48 Cassettes, Base-8 |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C to +60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Housing | Steel | Black |
| Housing | PC/ABS | |
| Housing | Polycarbonate |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | #12-24 machine screw Phillips (4x). Rail cage nuts (4x) |
|---|
Product Notes
| Packaging | Individually packaged in a cardboard box |
|---|---|
| Notes | Use 144F and 288 Fiber Trunk is not recommended for this housing. For more information, please refer to our web site at http://www.belden.com . |
History
| Update and Revision | Revision Number: 0.112 Revision Date: 10-23-2025 |
|---|
