Faceplates and Panels - DCX Preterm Adapter Frame

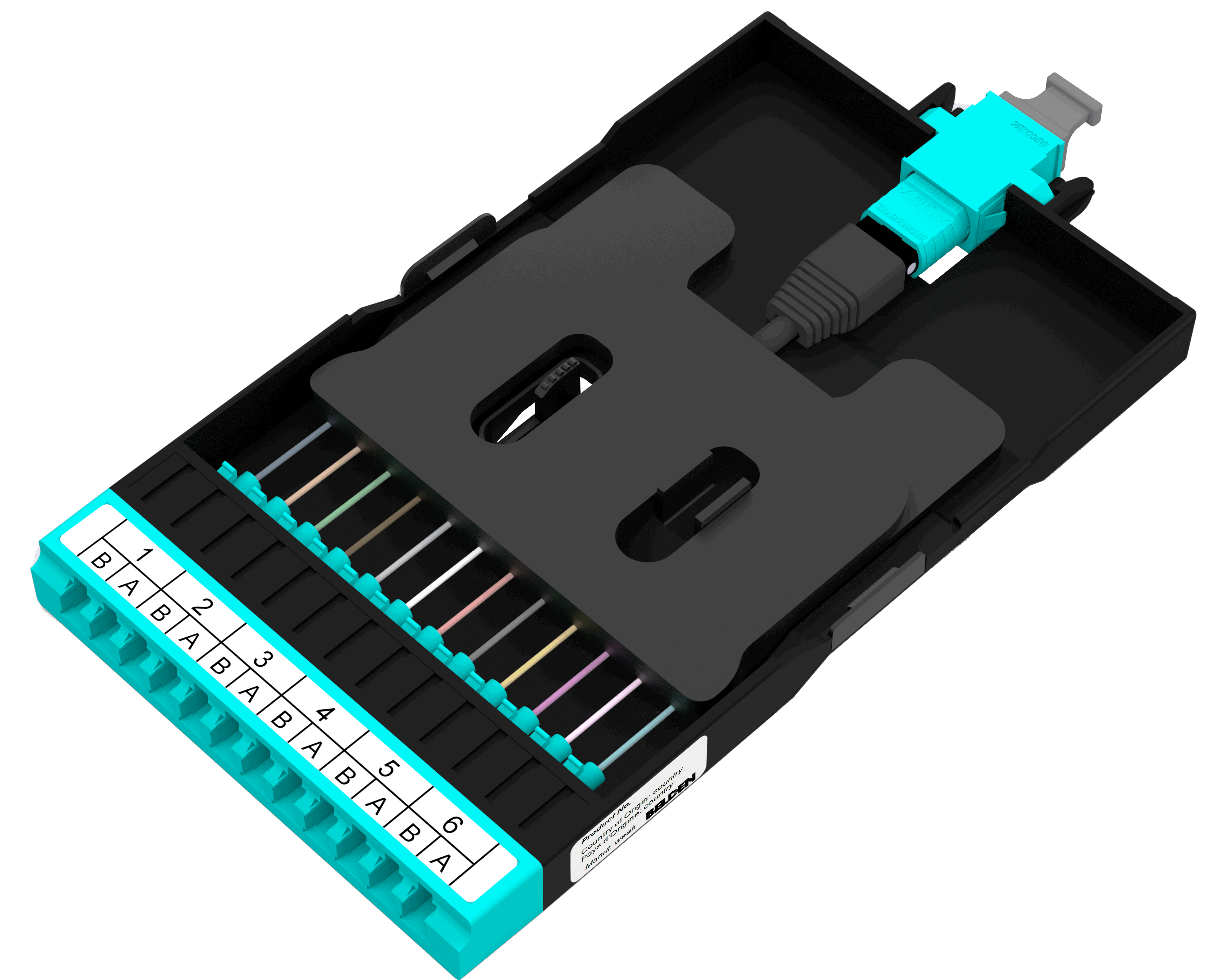

FX DCX FRAME, OM3, 06 PORTS, LC DUPLEX, MPO-12 (FEMALE), TYPE-A, NON-FLIP, AQUA ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | DCX, Data Centers, Central Equipment Room |
Construction
| Weight | 0.156 lbs |
|---|---|
| Overall Height | 0.5 in |
| Overall Width | 3.4 in |
| Overall Length | 6.8 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Physical Specifications
| Max Capacity | 12 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C to +75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Frame Assembly | Polycarbonate | Black (Frame), Aqua (Front Block) | |
| Front Connector Body | Plastic - UL94V-0 | Aqua | LC Duplex |
| Rear Connector/ Adapter | Plastic - UL94V-0 | Aqua | MPO Female |
| Fan-Out Routing Plate | Polypropylene | Black |
Fiber Connector Performance
| Description | OM3 |
|---|---|
| Total Insertion Loss | 0.6 dB |
| Total Return Loss | -25 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frames, Modules, and Patch Panels |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.127 Revision Date: 09-05-2025 |
|---|
