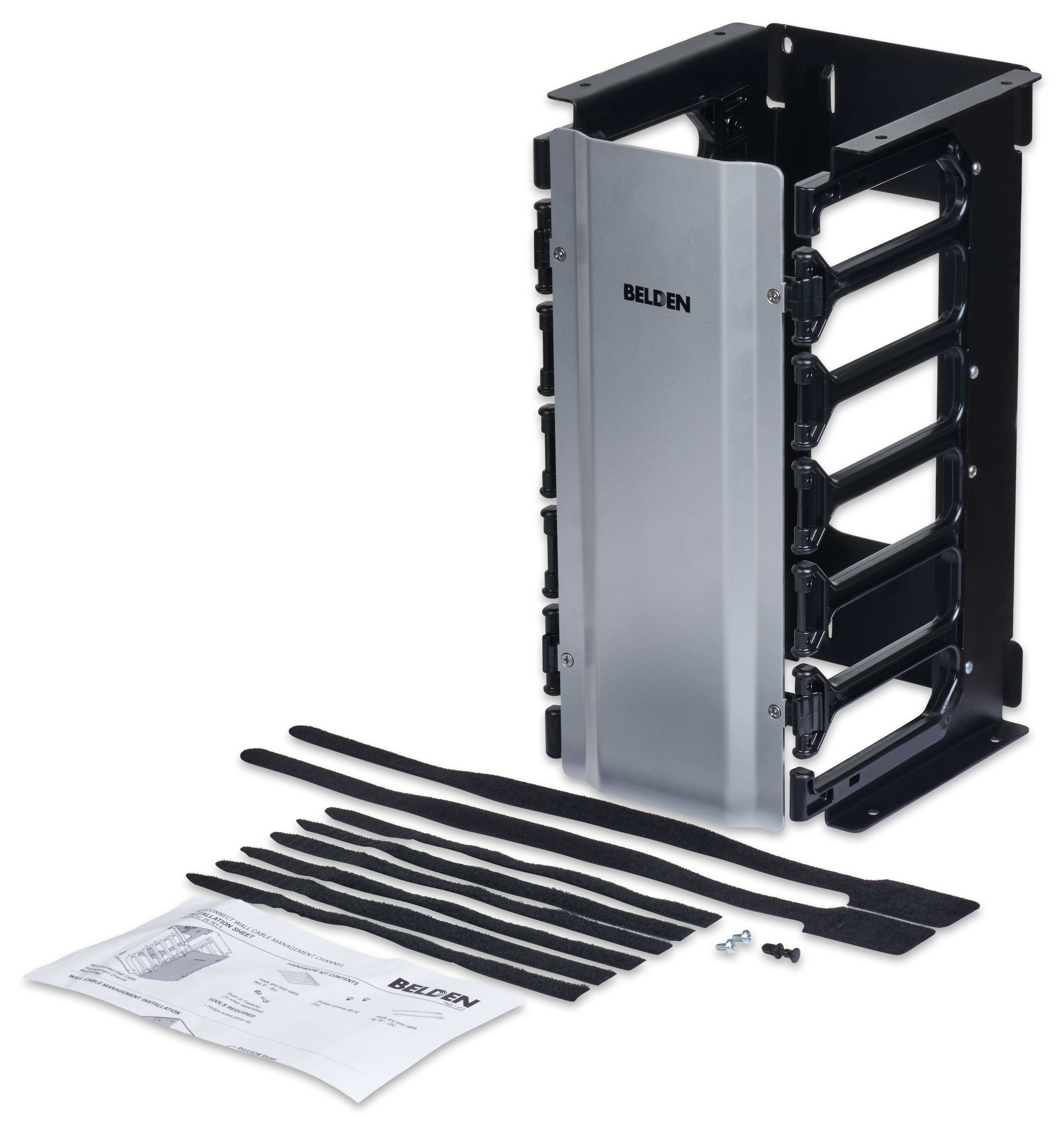

RVUPCMC-REVConnect Wall-Mount Cable Management Channel
The REVConnect Wall-Mount Cable Management Channel is designed for use with the REVConnect Wall-Mount kits
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
REVConnect WM Cable Mgmt Chan. is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| RVUPCMC | Black | 611589237956 | Order online |
Specifications
Product Overview
| Suitable Applications | IBDN System 4800,3600,2400,1200,10GX |
|---|
Physical Characteristics (Overall)
| Overall Height | 15.175 in |
|---|---|
| Overall Width | 8.11 in |
| Overall Depth | 9.244 in |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 5.4 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Module | Steel | Black |
| Cable Support | Lexan | Black |
| Door | Aluminum | Silver |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
Standards
| UL Rating | UL1863 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | REVConnect wall termination kit, REVConnect wall connector mount, REVConnect wall cable dressing module, REVConnect cable management channel, REVConnect wall horizontal channel kit |
|---|---|
| Included Parts | 2 Screws #8-32; 8 Velcro cable tie; 1 Installation guide; 1 Grommet; 1 Plunger |
Product Notes
| Notes | Refer to Installation Guide PX106710 (English) or visit our web site at http://www.belden.com |
|---|
History
| Update and Revision | Revision Number: 0.232 Revision Date: 02-03-2025 |
|---|
Resources
Related category 6a cross-connect system
AX105375
Faceplates and Panels - KeyConnect Euro Faceplate 1-Port w/ID Window

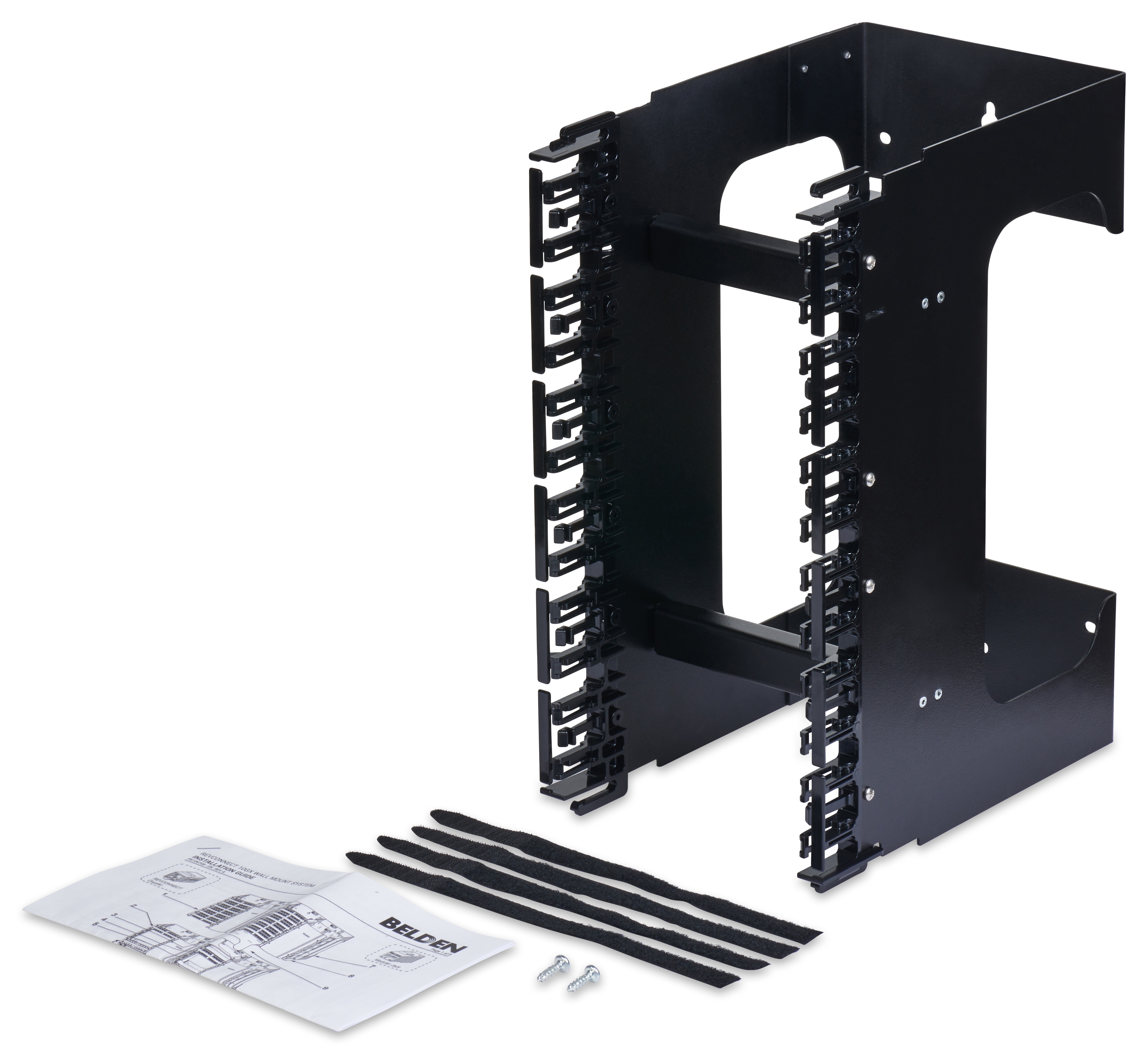

REVConnect Wall-Mount (Empty)
RVUXCMT96E-REVConnect Wall-Mount Connector Mount, 96-Port (Empty)
1 item

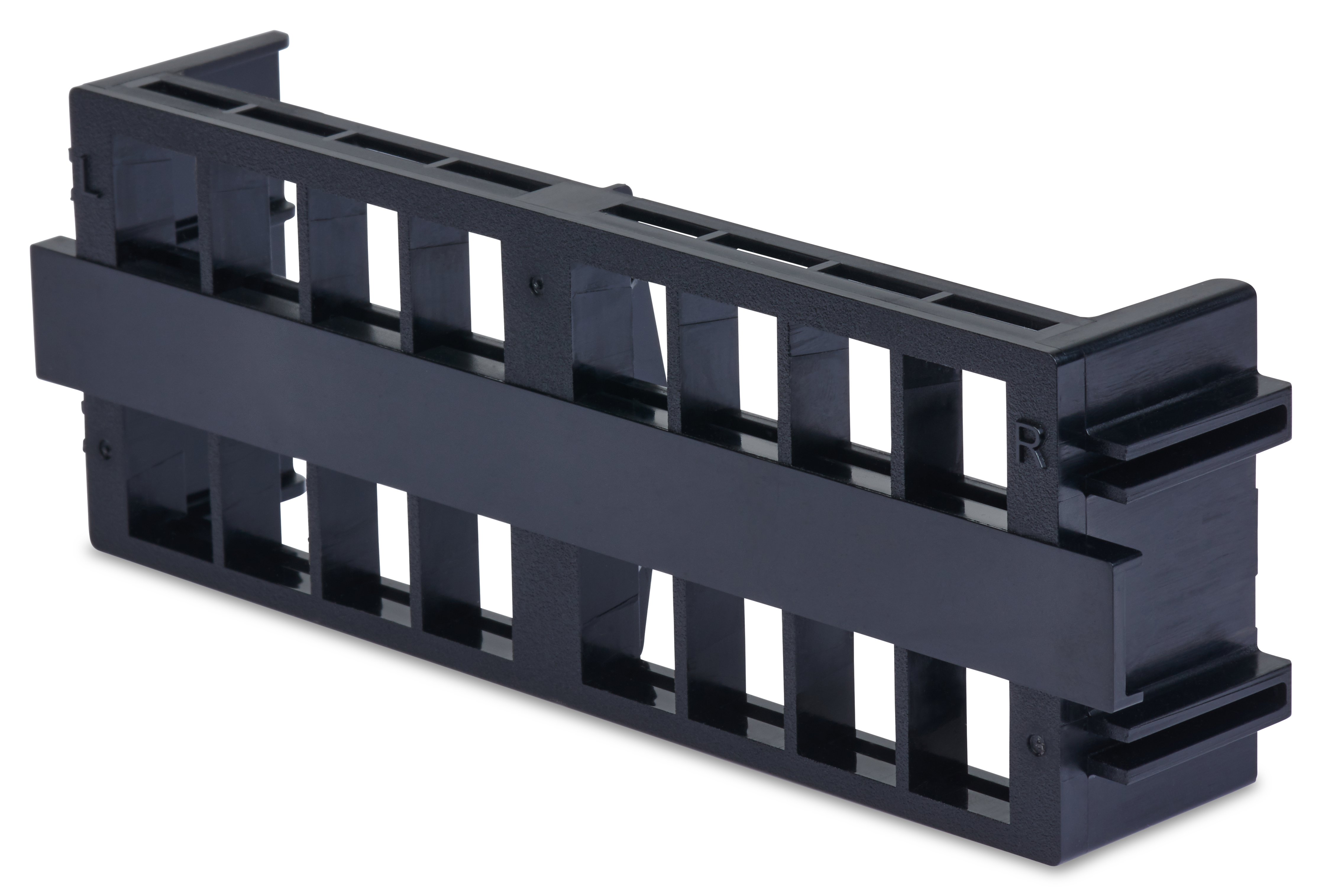

REVConnect Wall-Mount Mod. 16P
RVUXCCM16E-REVConnect Wall-Mount Connector Module, 16-Port (Empty)
1 item

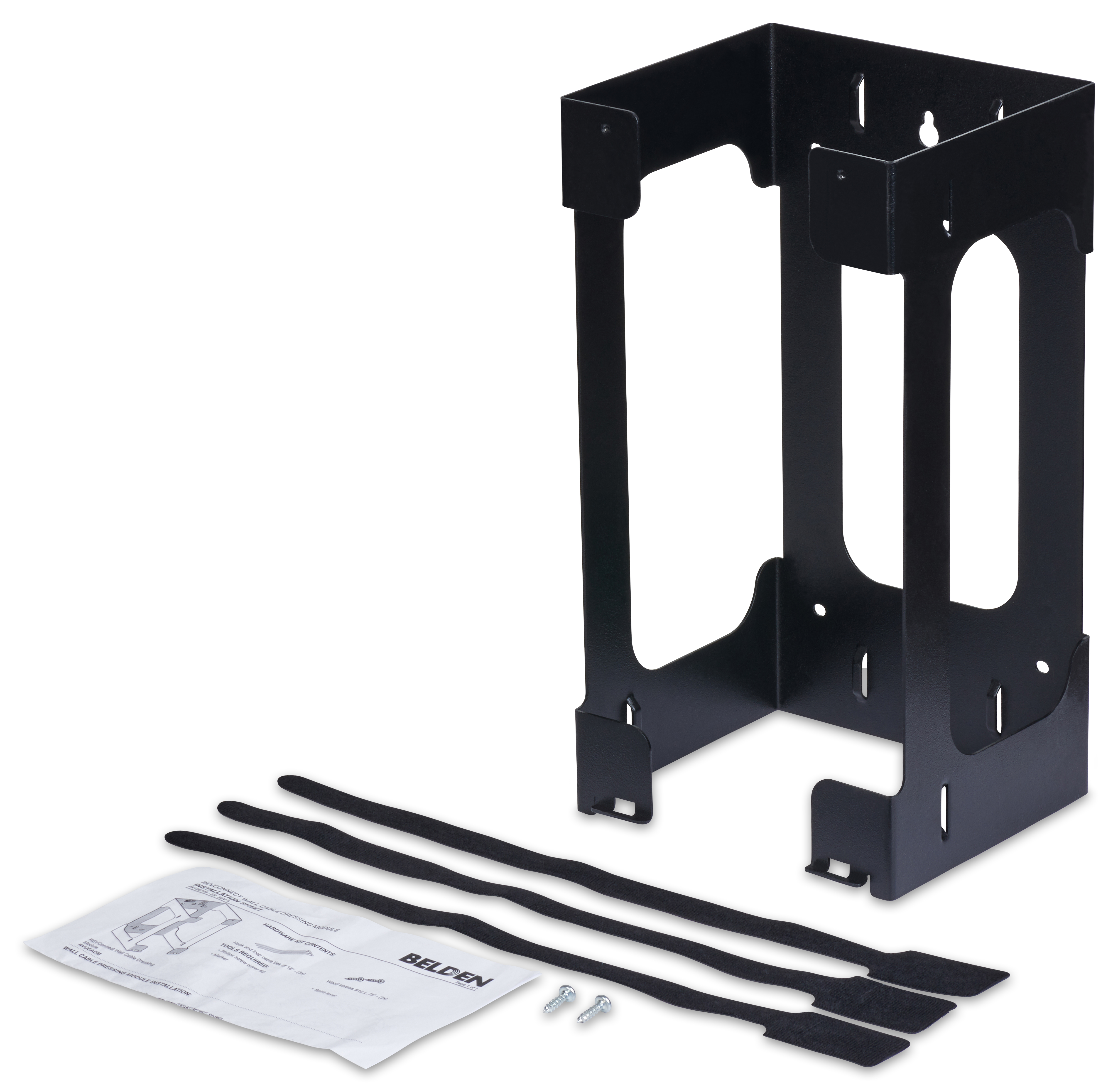

REVConnect WM Dressing Module
