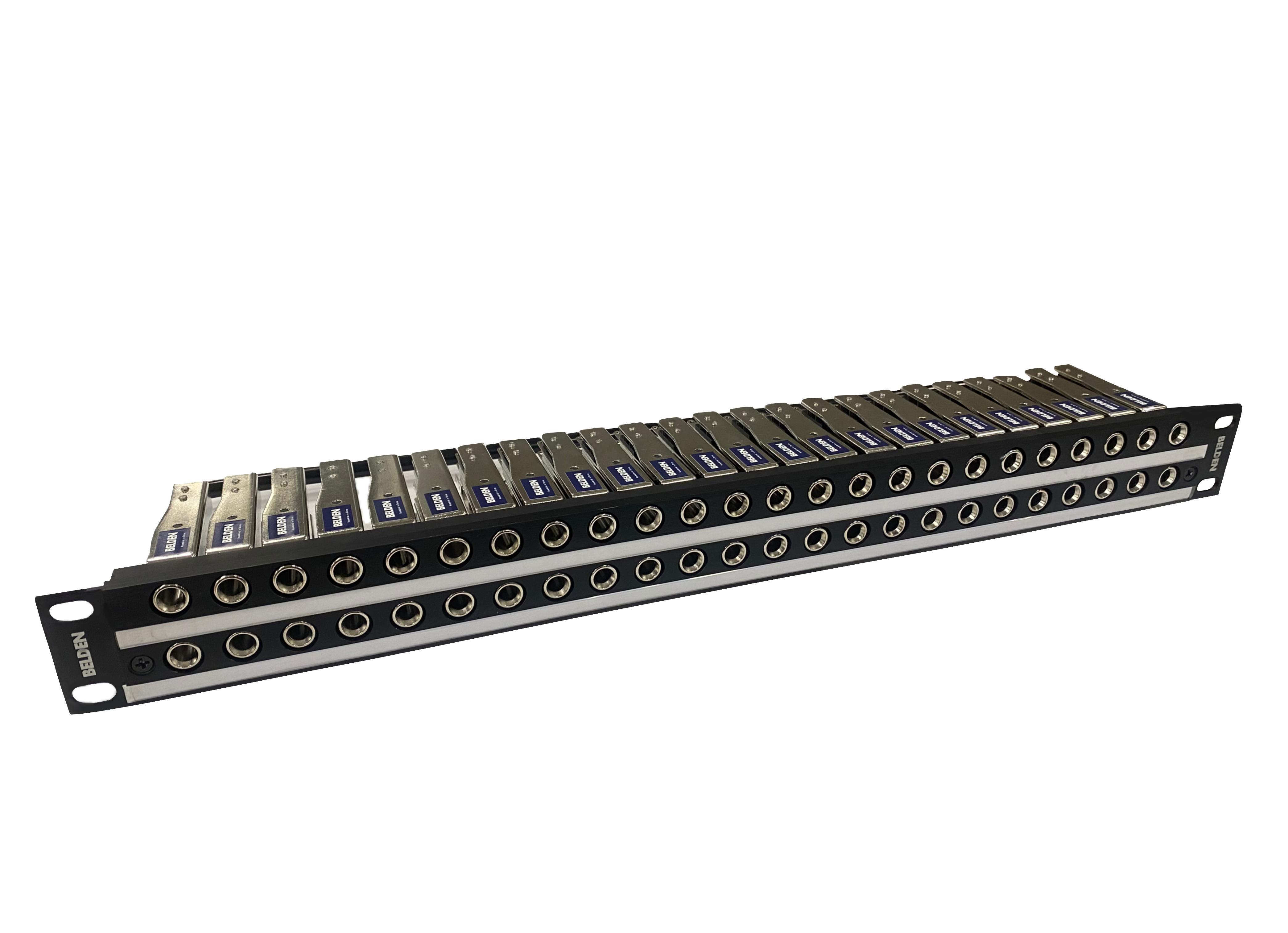

48 Channels Longframe B-Gauge Audio Patch Panel
Audio Patch Panel, Mounted with 2 rows of 24 Long frame B Gauge jacks(2x24 density), 1RU rack height , Black
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
APNS1048R is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | Order |
|---|---|---|---|---|
| APNS1048R | Black | 1U | 482.7 mm | Order online |
Specifications
Product Overview
| Suitable Applications | Audio system for multi-functional hall, PA Systems, the audio control system in the broadcast station, suitable for AES/EBU Signals (digital) etc. |
|---|
Physical Characteristics (Overall)
| Overall Height | 44.0 mm |
|---|---|
| Packaging | Individually packaged in a cardboard inner box, 4 pieces inner box packaged in a master carton. |
| Weight | 2.2 kg |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Jack | Long frame B Gauge Jack standard solder lugs | |
| Jack contact | Palladium plated | |
| Jack shell | Die-casting Alloy |
Construction and Dimensions
| Max Capacity | 48 channels |
|---|
Electrical Characteristics
| Dielectric Strength | >0.5 kVdc |
|---|---|
| Insulation Resistance | >1 G Ohm |
| Contact Resistance (Spring Contact) | <20 mOhm |
| Contact Resistance (Switch Contact) | <15 mOhm |
| Channel Separation at 10 kHz, 600 Ohm termination | >100 dB |
| Channel Separation at 6 kHz, 110 Ohm termination | >40 dB |
Temperature Range
| UL Temperature Rating | -3 0°C To + 8 0°C |
|---|
Mechanical Characteristics
Dimensions
| Length | 482.7 mm |
|---|---|
| Height | 44.0 mm |
Applicable Environmental and Other Programs
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|
Product Notes
| Notes | Components: Audio patch panel, Insertion force <25N, Withdrawal force >10N, Life time for the jack: Not less than 20000 mating cycles, Mating plug: Long frame B Gauge plug MIL P 642/2 |
|---|
History
| Update and Revision | Revision Number: 0.14 Revision Date: 02-07-2025 |
|---|
