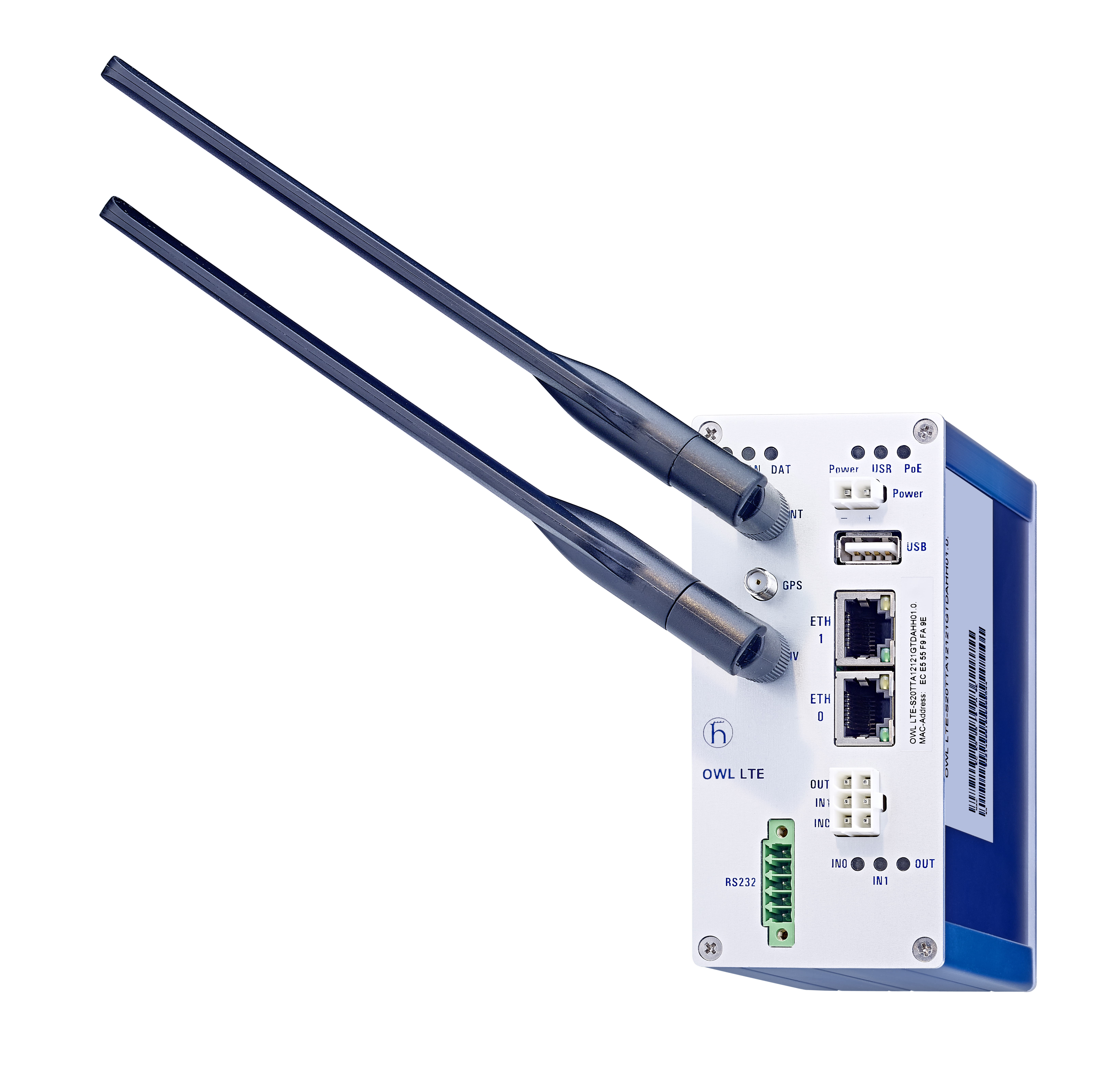

Product Number: OWL LTE-S20TTA12121GTDAHHxx.x.xx

LTE Ethernet Gateway, Europe, VPN, GPS, Dual SIM, Serial, IO, USB, MicroSD, Vehicles (E-Mark)

Industry 4.0 and Industrial IoT Cellular Router and Gateway. Optimized for 4G applications with edge pre-computing. GPS, VPN and openly programmable and extendable Linux. Rugged and approved for vehicles.

Availability: Global
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

OWL LTE-S20TTA12121GTDAHHxx.x.xx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
942146001	OWL LTE-S20TTA12121GTDAHHxx.x.xx	Order online

Specifications

Product Overview

Type	OWL LTE-S20TTA12121GTDAHHXX.X.XX
Port Type and Quantity	2x Ethernet, 2x Antenna, 1x GPS, 2x SIM, 1x Power, 3x I/O, 1x USB, 1x Serial, 1x MicroSD

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Availability	Limited
Discontinuation Announcement Date	2020-05-12
Last Order Date	2020-11-12
Last Delivery Date	2020-12-31
Last Service Date	2025-12-31

General Information

Scope of delivery	Device, DIN rail clip, power connector, 6-pin I/O connector, 5-pin terminal block for RS232

More Interfaces

USB interface	USB Type A socket
SIM Cards	2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch on connection failure
Ethernet Connector Type	2x Ethernet: 10/100 Mbit/s (RJ45), PoE on both Ports
Power Supply	2-pin panel socket (self-assembly connector included)
Serial	5-pin terminal block (connector included): RS232 , Serial2TCP , Serial2UDP
Signaling contact	6-pin panel socket (connector included): 2x Digital Input, 1x Digital Output

Radio technology

Modules

Description	Module 1
Antenna Connector	3 x SMA Female (Cellular, Diversity, GPS)
Transmission Rate	LTE Category 3: 100 Mbps Download, 50 Mbps Upload
Additional Radio Features	GNSS (GPS, GLONASS)
Frequency Band	GPRS/EDGE (2G): 900/1800/1900 MHz, UMTS/HSPA+ (3G): 900/2100 MHz, LTE (4G): 800/900/1800/2100/2600 MHz

Power requirements

Operating Voltage	12 V DC to 48 V DC, PoE PD Category 4
Power Consumption	8 W

Diagnostics features

Monitoring	Syslog (UDP) , SNMPv1/2c/3

Service

Other services	DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP , SMS (notifications and commands) , Telnet server

Software

Operating system	Custom embedded Linux with Busybox Shell
Switching	VLAN (via Scripting), tunneled VLANs (via Scripting), IGMP
Diagnostics	One click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH linux shell, Signal strength LED indicators
Configuration	Simple to edit text file configuration, HTTP, HTTPs, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3
Security	HTTPs, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)
Time synchronisation	SNTP Client, SNTP Server
Routing	Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT
