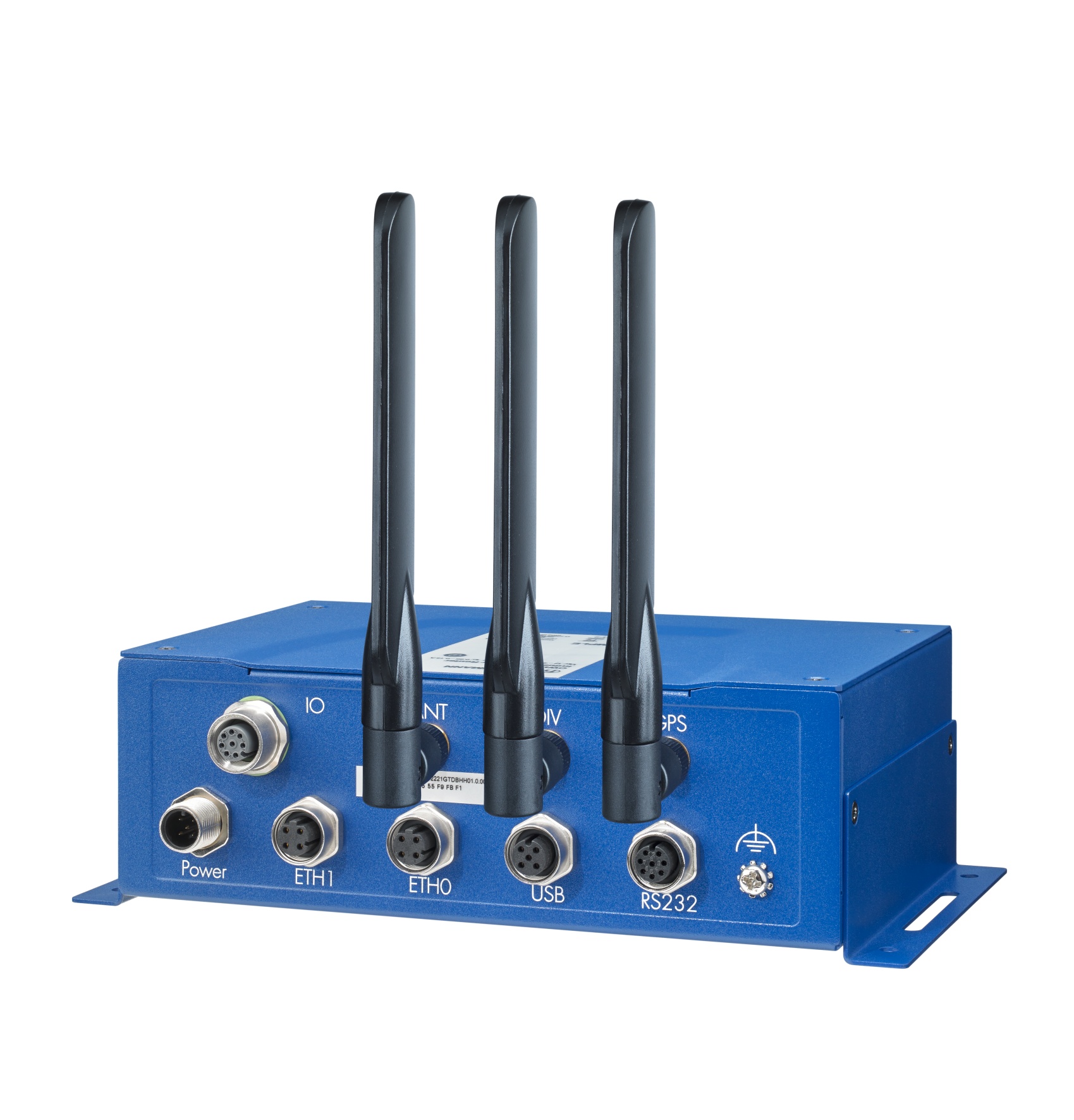

Product Number: OWL LTE M12-S20T5A12221GTDBHHXX.X.XX

LTE Ethernet Gateway, Europe, M12, VPN, GPS, Dual SIM, Serial, IO, USB, MicroSD, Transportation (EN50155)

Transportation EN50155 Cellular Router and Gateway. Optimized for 4G applications with edge pre-computing. VPN and openly programmable and extendable Linux. VRRP for router redundancy. Dead reckoning for GPS even inside tunnels.

Availability: Global
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

OWL LTE M12-S20T5A12221GTDBHHXX.X.XX is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
942147002	OWL LTE M12-S20T5A12221GTDBHHXX.X.XX	Order online

Specifications

Product Overview

Type	OWL LTE M12-S20T5A12221GTDBHHXX.X.XX
Port Type and Quantity	2x Ethernet, 2x Antenna, 1x GPS, 2x SIM, 1x Power, 4x I/O, 1x USB, 1x Serial, 1x MicroSD

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Availability	Limited
Discontinuation Announcement Date	2022-09-29
Last Order Date	2022-10-31
Last Delivery Date	2022-12-30
Last Service Date	2024-10-31

General Information

Scope of delivery	Device, Wall mount brackets

More Interfaces

USB interface	1 x 5-pin M12 A-coded socket (connector NOT included)
SIM Cards	2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch on connection failure
Ethernet Connector Type	2x Ethernet: 10/100 Mbit/s (M12 D-Coded)
Power Supply	M12 A-coded 5-pin (connector NOT included)
Serial	8-port M12 A-Coded (connector NOT included): RS232 , Serial2TCP , Serial2UDP
Signaling contact	8-port M12 A-Coded (connector NOT included): 2x Digital Input, 2x Digital Output

Radio technology

Modules

Description	Module 1
Antenna Connector	3 x SMA Female (Cellular, Diversity, GPS)
Transmission Rate	LTE Category 4: 150 Mbit/s Download, 50 Mbit/s Upload
Additional Radio Features	GNSS (GPS, GLONASS, Galileo, QZSS), Dead Reckoning
Frequency Band	GPRS/EDGE (2G): 900(Band 8) /1800(Band 3) MHz, UMTS/HSPA+ (3G): 900(Band8) /2100(Band 2) MHz, LTE (4G): 800(Band 20) /900(Band 8) /1800(Band 3) /2100(Band 1) /2600(Band 7) MHz

Power requirements

Operating Voltage	12 V DC to 36 V DC, PoE PD on request
Power Consumption	4 to 11 W

Diagnostics features

Monitoring	Syslog (UDP) , SNMPv1/2c/3

Service

Other services	DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP , SMS (notifications and commands) , Telnet server

Software

Operating system	Custom embedded Linux with Busybox Shell
Switching	VLAN (via Scripting), tunneled VLANs (via Scripting), IGMP
Diagnostics	One click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH linux shell, Signal strength LED indicators
Configuration	Simple to edit text file configuration, HTTP, HTTPs, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3
Security	HTTPs, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)
Time synchronisation	SNTP Client, SNTP Server, GPS
Routing	Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT
