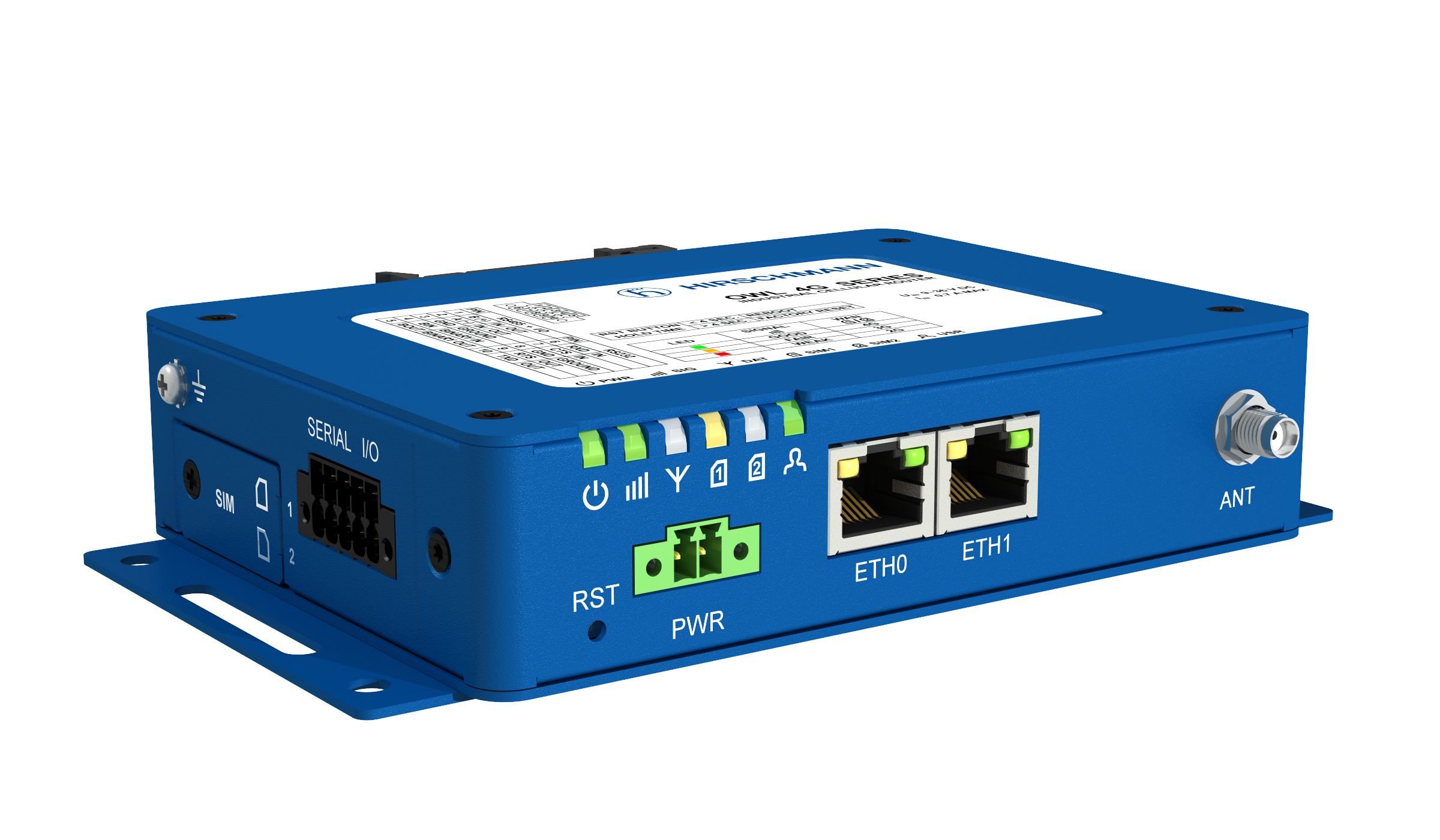

Product Number: OWL LPWAN

LTE Cat. M1/NBIoT Ethernet Gateway, USA, Canada, VPN, Dual SIM, Serial, IO

Industry 4.0 and Industrial IoT Cellular Router and Gateway. Optimized for 4G Low Power WAN applications (LTE Cat. M1 and NBIoT) with edge pre-computing. VPN and openly programmable and extendable Linux.

Availability: Global
Status: Limited Std Warranty Period
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

OWL LPWAN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
942286001	OWL LPWAN	Order online

Specifications

Product Overview

Type	OWL-L05.01-W00.00-F01-U01-A01-VXX.X.XX
Port Type and Quantity	2x Ethernet, 1x Antenna, 2x SIM, 1x Power, 2x I/O, 2x Serial

Product Life Cycle

Life Cycle	Limited Std Warranty Period - the product is no longer manufactured but service may be available for active equipment
Availability	Available
Discontinuation Announcement Date	2023-12-12
Last Order Date	2024-06-01
Last Delivery Date	2024-10-01
Last Service Date	2029-10-01

General Information

Scope of delivery	Device, DIN rail clip, wall mount wings, 2-pin power connector, 10-pin connector for I/O and RS232/RS485

More Interfaces

SIM Cards	2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch on connection failure
Ethernet Connector Type	2x Ethernet: 10/100 Mbit/s (RJ45)
Power Supply	Via 2-pin terminal block 3.5mm (included)
Serial	On 10-pin panel socket (connector included): RS485, RS232 , Serial2TCP , Serial2UDP
Signaling contact	On 10-pin panel socket (connector included): Digital Input, Digital Output

Radio technology

Modules

Description	Module 1
Antenna Connector	1 x SMA Female (Cellular)
Transmission Rate	LTE Category M1: 375 Kbps Upload and Download
Frequency Band	GPRS/EDGE (2G): 850/900/1800/1900 MHz, LTE 4G Cat. M1 and NBIoT: 700(Bands 12,13,28) / 800(Band 20) / 850(Bands 5,18,19,26) / 900(Band 8) / 1700(Band 4) / 1800(Band 3) / 1900(Bands 2,39) / 2100(Band 1) MHz

Power requirements

Operating Voltage	9 V DC to 36 V DC

Diagnostics features

Monitoring	Syslog (UDP) , SNMPv1/2c/3

Service

Other services	DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP , SMS (notifications and commands) , Telnet server

Software

Operating system	Custom embedded Linux with Busybox Shell
Switching	VLAN (via Scripting), tunneled VLANs (via Scripting), IGMP
Diagnostics	One click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH linux shell, Signal strength LED indicators
Configuration	Simple to edit text file configuration, HTTP, HTTPs, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3
Security	HTTPs, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)
Time synchronisation	SNTP Client, SNTP Server , Battery for RTC (CR1225)
Routing	Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT
