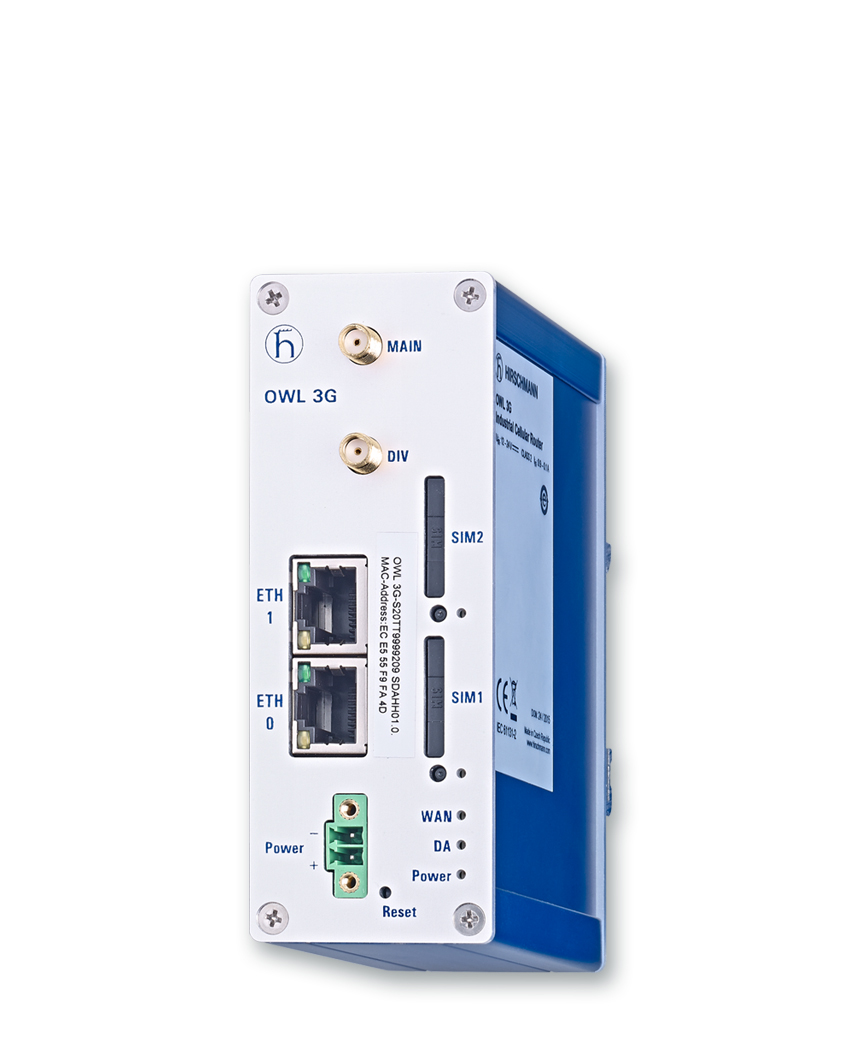

Product Number: OWL 3G-S20TT9999209SDAHHXX.X.

LTE Ethernet Gateway, Europe, VPN, GPS, Dual SIM, MicroSD

Industry 4.0 and Industrial IoT Cellular Router and Gateway. Optimized for 3G applications with edge pre-computing. VPN and openly programmable and extendable Linux.

Availability: Global
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

OWL 3G-S20TT9999209SDAHHXX.X. is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
942145001	OWL 3G-S20TT9999209SDAHH01.0.	Order online

Specifications

Product Overview

Type	OWL 3G-S20TT9999209SDAHHXX.X.XX
Port Type and Quantity	2x Ethernet, 1x Antenna, 1x Diversity, 2x SIM, 1x Power

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured
Availability	Limited
Discontinuation Announcement Date	2020-05-12
Last Order Date	2020-11-12
Last Delivery Date	2020-12-31
Last Service Date	2025-12-31

General Information

Scope of delivery	Device, DIN rail clip, power connector

More Interfaces

SIM Cards	2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch on connection failure
Ethernet Connector Type	2x Ethernet: 10/100 Mbit/s (RJ45)
Power Supply	Via 2-pin terminal block 3.5mm (included)

Radio technology

Modules

Description	Module 1
Antenna Connector	2 x SMA Female (Cellular, Diversity)
Transmission Rate	HSPA+: 14,4 Mbps Download, 5,76 Mbps Upload
Frequency Band	GSM/GPRS/EDGE (2G): 850/900/1800/1900 MHz, UMTS/HSDPA/HSUPA/HSPA+ (3G): 800/850/900/1900/2100 MHz

Power requirements

Operating Voltage	12 V DC to 24 V DC

Diagnostics features

Monitoring	Syslog (UDP) , SNMPv1/2c/3

Service

Other services	DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP , SMS (notifications and commands) , Telnet server

Software

Operating system	Custom embedded Linux with Busybox Shell
Switching	VLAN (via Scripting), tunneled VLANs (via Scripting), IGMP
Diagnostics	One click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH linux shell, Signal strength LED indicators
Configuration	Simple to edit text file configuration, HTTP, HTTPs, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3
Security	HTTPs, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)
Time synchronisation	SNTP Client, SNTP Server
Routing	Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT
