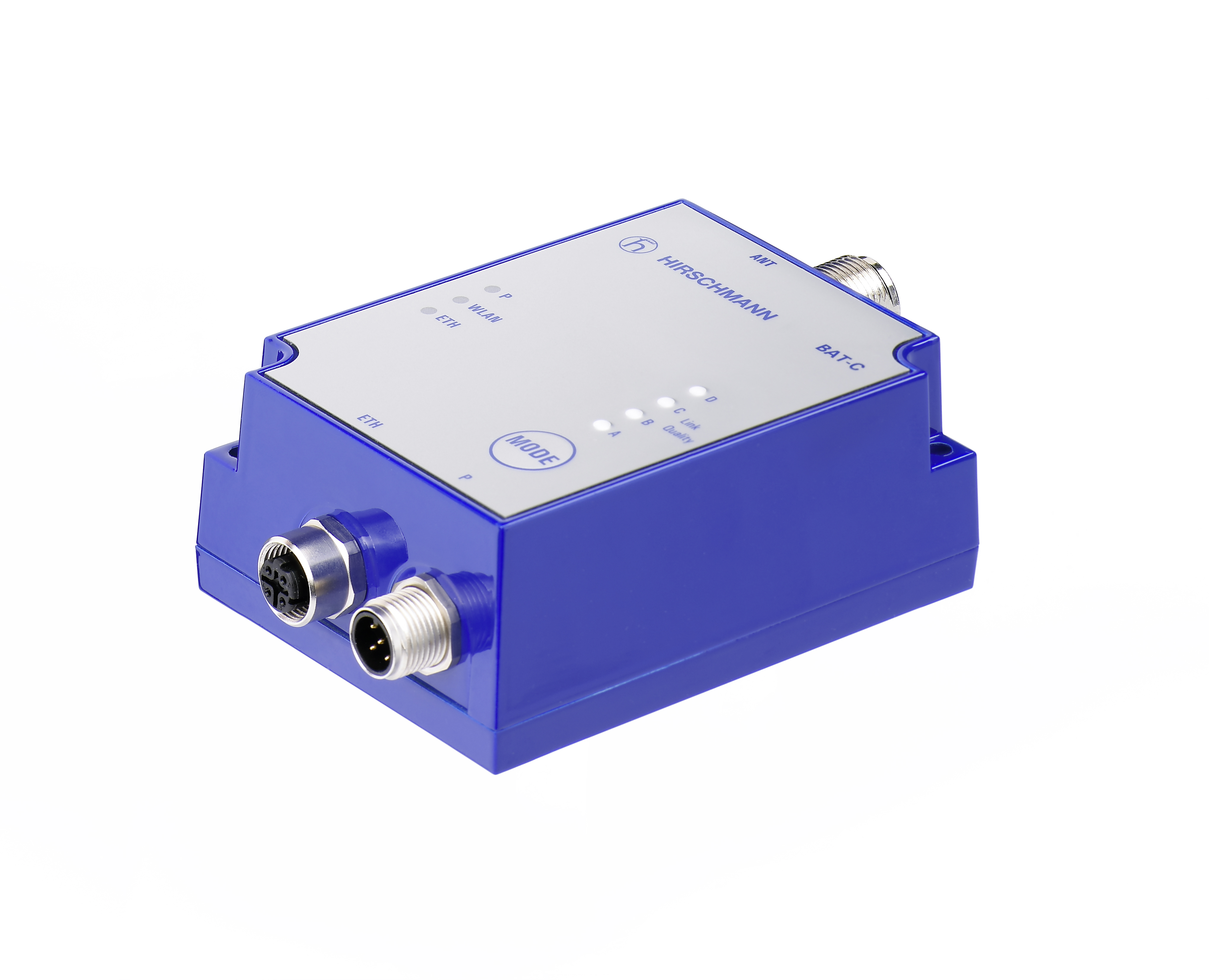

BAT-C

Product Number: BAT-C

Industrial Wireless LAN Client for 2.4 and 5 GHz operation.

The BAT-C client, featuring industrial protection class IP67, allows you to set up cost-effective WLAN installations in places where there is no need for high-end devices. In other words, you pay only for the features you actually need. With a radio module that supports both the 5 GHz and 2.4 GHz frequency bands, the rugged design and compact dimensions of the BAT-C make it suitable for use in a wide range of stationary and mobile WLAN applications in industrial environments, such as manufacturing or production logistics. Due to its additional E1 approval, it can also be used to set up reliable wireless connections to Ethernet networks from buses and other vehicles. Supporting the new IEEE 802.11n transmission standard, the BAT-C can operate at data speeds of up to 150 Mbit/s. Fast roaming permits uninterrupted connections when transferring from one radio cell to another. Further

Availability
Global
Status
Discontinued

Ships from and sold by A5 IT.

Specifications

Product Overview

TypeBAT-C Wireless LAN Client
Port Type and Quantity1x 802.11n/a/b/g/h/i 1 x 24 V DC 1x 100Mbps Ethernet (M12)

Product Life Cycle

Life CycleDiscontinued - the product is no longer manufactured
Discontinuation Announcement Date2017-10-25
Last Order Date2017-12-31
Last Delivery Date2018-06-30
Last Service Date2023-06-30

General Information

Scope of deliveryDevice, dualband dipole omindirectional antenna. M12 connectors for power supply and Ethernet cable

Radio technology

Modules

DescriptionModule 1
Antenna ConnectorN-Type female
Frequency Band2.4 GHz and 5 GHz
ModulationOFDM, DSSS

Ambient conditions

Operating temperature-40-+70 °C
Relative humidity (non-condensing)5-90 %
Dimensions (WxHxD)11 cm x 6 cm x 5 cm
Mount TypeWall mounting

History

Update and RevisionRevision Number: 0.46 Revision Date: 02-10-2026
