Classic Software 9 for all MS20 and MS30 switches
The Classic Switch Software provides a range of functions normally found in backbone systems used in office networks. This includes comprehensive management, diagnostics and filter functions, various redundancy features, security mechanisms and real-time applications. All relevant software files can be downloaded from the "Documents " tab
- Availability
- Global
- Status
- Active
Specifications
Product description
| Type | MS20/30 |
|---|
Software
| Switching | Disable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), VLAN (802.1Q), IGMP Snooping/Querier (v1/v2/v3) |
|---|---|
| Redundancy | HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP |
| Management | TFTP, LLDP (802.1AB), V.24, HTTP, Traps, SNMP v1/v2/v3, Telnet, |
| Diagnostics | Address Relearn Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Duplex Mismatch Detection, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, System Information, Self-Tests on Cold Start, SFP Management, Switch Dump |
| Configuration | AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), Full-featured MIB Support, Web-based Management, Context-sensitive Help, |
| Security | IP-based Port Security, MAC-based Port Security, ACL Hit Counter, Access to Management restricted by VLAN, SNMP Logging, Local User Management |
| Time synchronisation | PTPv2 Boundary Clock, SNTP Client, SNTP Server |
| Industrial Profiles | EtherNet/IP Protocol, PROFINET IO Protocol |
| Miscellaneous | Digital IO Management, PoE (802.3af), Manual Cable Crossing |
Further Instructions
| Product Documentation | https://www.doc.hirschmann.com |
|---|---|
| Certificates | https://www.doc.hirschmann.com/certificates.html |
| Software Download | https://my.belden.com/s/downloads |
History
| Update and Revision | Revision Number: 0.57 Revision Date: 11-27-2025 |
|---|
Resources
Related classic switch software

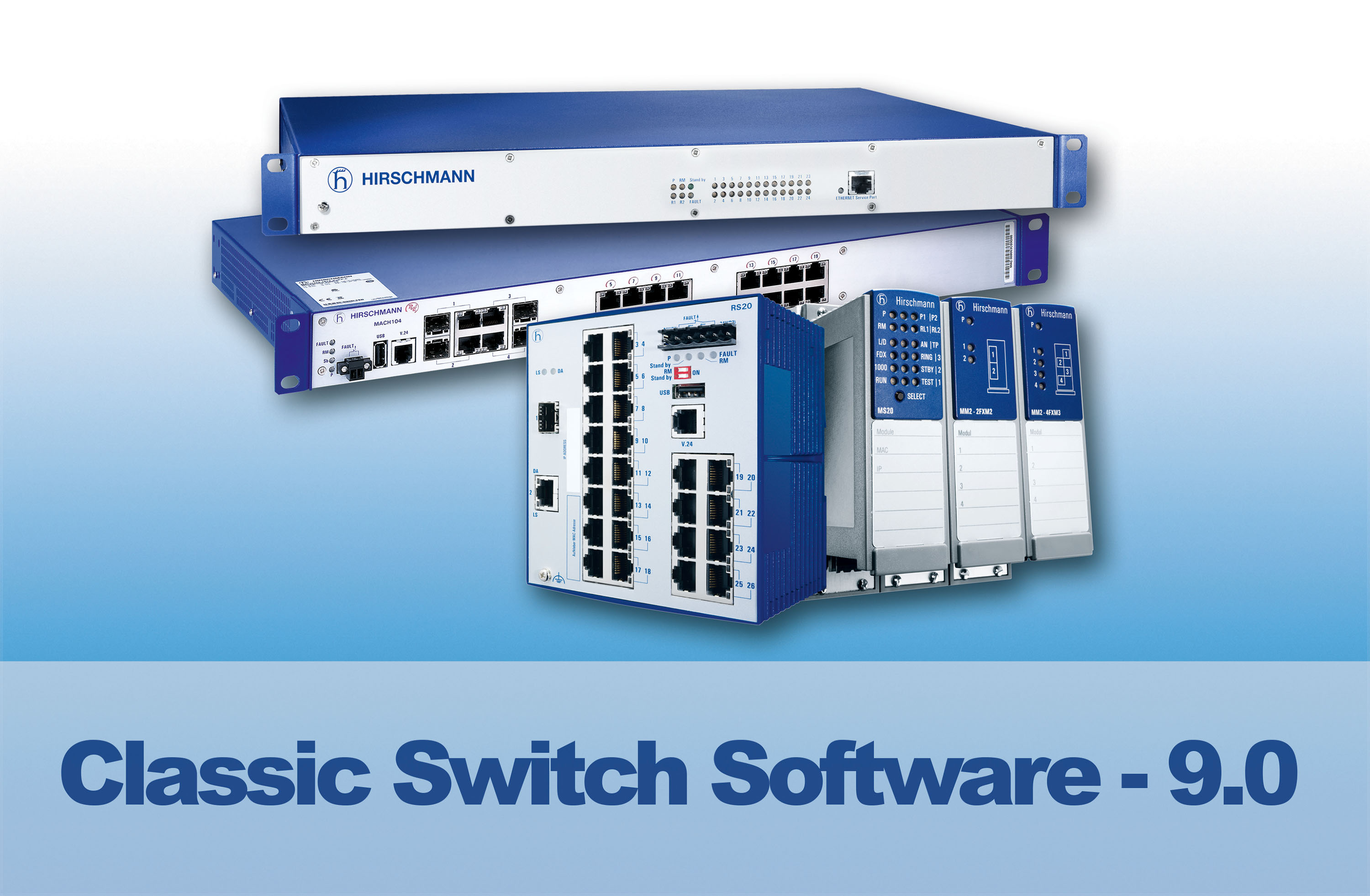

Classic Switch Software 9.0 - MACH102 (L2P)
