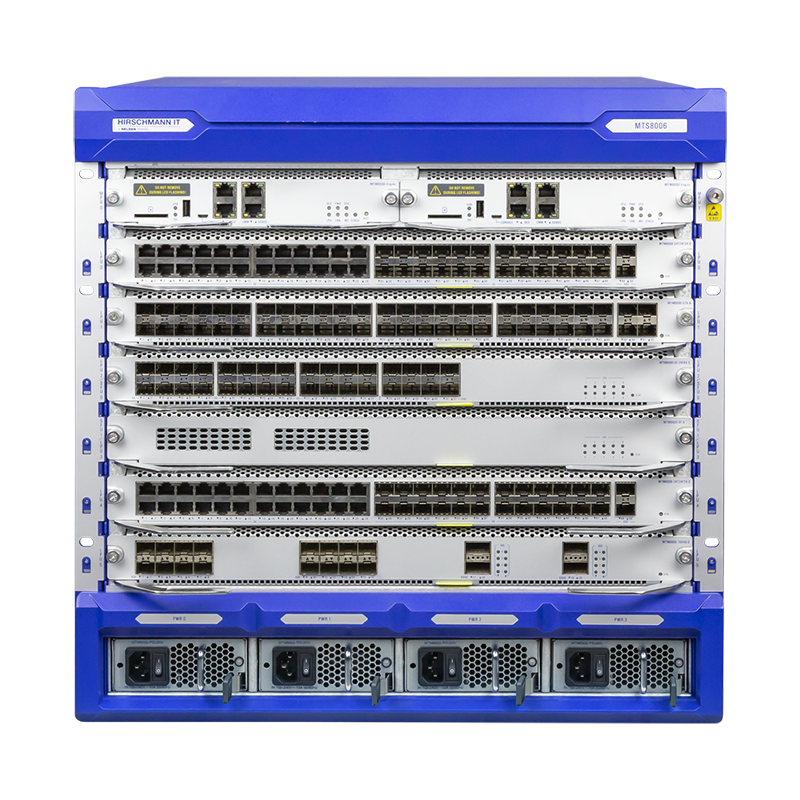

MAMMUTHUS Layer3 Modular Core Switch - MTS8000 Series Switch
11U rack mount, dual engine, 4 × media modules, 2 × switch fabric units, 4 × modular PSUs, 2 × fan trays
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
MTS8006-Chassis is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Type | Order |
|---|---|---|
| 942999792 | MTS8006-Chassis | Order online |
Specifications
Product description
| Type | MTS8006-Chassis |
|---|---|
| Name | MTS8006-Chassis |
| Description | 11U rack mount, dual engine, 4 × media modules, 2 × switch fabric units, 4 × modular PSUs, 2 × fan trays |
| Port Type and Quantity | 2 × engine slots, 4 × media module slots and 2 × switch fabric unit slot |
| Engine Redundancy | Yes |
| Heat Radiation Type | 2 × modular redundant fan trays, hot swappable, 2 × fan trays are mandatory for MTS8006-Chassis |
More Interfaces
| Power Supply | 4 × modular redundant PSUs, hot swappable, Min. 1 × PSU, Max. 4 × PSUs |
|---|
Power requirements
| Operating Voltage | 100-240VAC, 50-60HZ |
|---|
Ambient conditions
| Permissible Humidity (Storage/Transport) | 5% to 95% |
|---|---|
| Operating temperature | 0-+55 °C |
| Minimum Storage Temperature | -40-+70 °C |
| Relative humidity (non-condensing) | 10-90 % |
| Overall Width | 441 mm |
| Overall Height | 488 mm |
| Overall Depth | 434.8 mm |
| Weight | 26.8 kg |
| Mount Type | Rack mount |
Mechanical stability
| IEC 60068-2-6 vibration | 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min |
|---|---|
| IEC 60068-2-27 shock | 15 g, 11 ms duration, 18 shocks |
EMC interference immunity
| EN 61000-4-2 electrostatic discharge (ESD) | 4 kV contact discharge, 8 kV air discharge |
|---|---|
| EN 61000-4-3 electromagnetic field | 10V/m (80-1000MHz), 3V/m (1000-6000MHz) |
| EN 61000-4-4 fast transients (burst) | 2 kV power line, 1 kV data line |
| EN 61000-4-5 surge voltage | power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line |
| EN 61000-4-6 Conducted Immunity | 10 V (150 kHz-80 MHz) |
| EN 61000-4-8 power freq magnetic field | 30A/m |
| EN 61000-4-11 voltagedips,shortinterrupt | 0%(20ms), 40%(300ms), 70%(500ms), 0%(5s) |
EMC emitted immunity
| EN 55032 | EN 55032 Class A |
|---|---|
| EN 61000-3-2 | EN 61000-3-2 Class A |
| EN 61000-3-3 | EN 61000-3-3 |
| FCC CFR47 Part 15 | FCC 47CFR Part 15, Class A |
Approvals
| FCC | CE/FCC Compliant |
|---|---|
| Common Criteria | EAL 2+ |
| China Network Access Certificate | Compliant |
| RoHS Compliant | RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant |
Scope of delivery and accessories
| Accessories to Order Separately | Engine, media module, switch fabric, hybrid card, PSU, fan tray, SFP, Network Management Industrial HiVision |
|---|---|
| Scope of delivery | Device, console cable, installation package, "*Power cord does not included in the package |
History
| Update and Revision | Revision Number: 0.63 Revision Date: 04-24-2026 |
|---|
