Product Number: MTM8000-SF-S

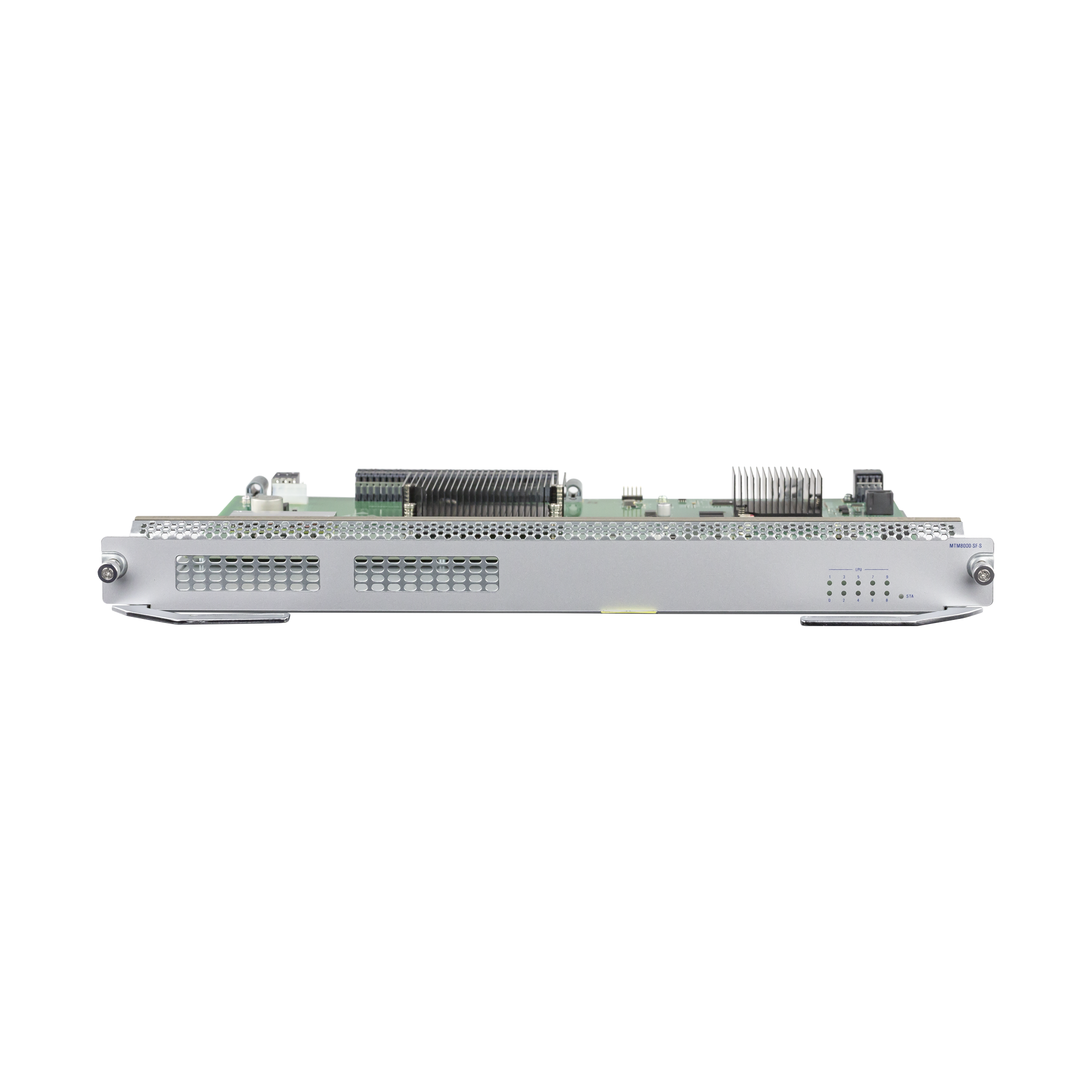

MAMMUTHUS Switch Fabric Module for MTS8000 Series Switch

Name: Belden MTM8000-SF-S
Brand: Belden
SKU: MTM8000-SF-S

Standard performance switch fabric module for MTS8000 series modular switch

Ships from and sold by A5 IT.

Specifications

Type	MTM8000-SF-S
Name	MTM8000-SF-S
Description	Standard performance switch fabric module for MTS8000 series modular switch

Operating Voltage	Power supply via switch
Power Consumption	52W

Permissible Humidity (Storage/Transport)	5% to 95%
Operating temperature	0-+55 °C
Minimum Storage Temperature	-40-+70 °C
Relative humidity (non-condensing)	10-90 %
Overall Width	437 mm
Overall Height	46 mm
Overall Depth	402 mm
Weight	2.8 kg

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EN 61000-4-2 electrostatic discharge (ESD)	4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10V/m (80-1000MHz), 3V/m (1000-6000MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity	10 V (150 kHz-80 MHz)
EN 61000-4-8 power freq magnetic field	30A/m
EN 61000-4-11 voltagedips,shortinterrupt	0%(20ms), 40%(300ms), 70%(500ms), 0%(5s)

FCC	CE/FCC Compliant
China Network Access Certificate	Compliant
Common Criteria	EAL 2+
RoHS Compliant	RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant
