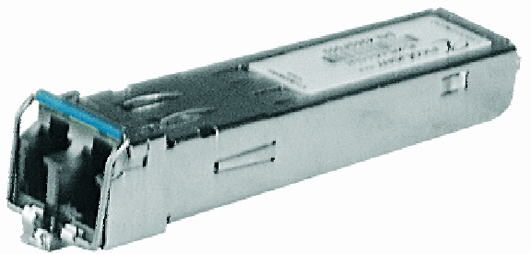

SFP Fiberoptic 2.5 Gigabit Ethernet Transceiver SM
SFP Fiberoptic 2.5 Gigabit Ethernet Transceiver SM with LC connector
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
M-SFP-2.5-SM+/LC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Type | Order |
|---|---|---|
| 942331001 | M-SFP-2.5-SM+/LC | Order online |
Specifications
Power requirements
| Operating Voltage | power supply via the switch |
|---|---|
| Power Consumption | 1 W |
Software
| Diagnostics | Optical input and output power, transceiver temperature |
|---|
Ambient conditions
| Operating temperature | 0-+60 °C |
|---|---|
| Minimum Storage Temperature | -40-+85 °C |
| Relative humidity (non-condensing) | 5-95 % |
| Dimensions (WxHxD) | 13.4 mm x 8.5 mm x 56.5 mm |
| Weight | 30 g |
| Mount Type | SFP+ slot |
| IP Protection Rating | IP20 |
Mechanical stability
| IEC 60068-2-6 vibration | 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min |
|---|---|
| IEC 60068-2-27 shock | 15 g, 11 ms duration, 18 shocks |
EMC interference immunity
| EN 61000-4-2 electrostatic discharge (ESD) | 6 kV contact discharge, 8 kV air discharge |
|---|---|
| EN 61000-4-3 electromagnetic field | 10 V/m (80-1000 MHz) |
| EN 61000-4-4 fast transients (burst) | 2 kV power line, 1 kV data line |
| EN 61000-4-5 surge voltage | power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line |
| EN 61000-4-6 Conducted Immunity | 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz) |
EMC emitted immunity
| EN 55022 | EN 55022 Class A |
|---|---|
| FCC CFR47 Part 15 | FCC 47CFR Part 15, Class A |
Approvals
| Hazardous locations | depending on deployed switch |
|---|---|
| Shipbuilding | depending on deployed switch |
Reliability
| Guarantee | 24 months (please refer to the <a href=" https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf " terms of guarantee </a for detailed information) |
|---|
Scope of delivery and accessories
| Scope of delivery | SFP module |
|---|
Further Instructions
| Certificates | https://www.doc.hirschmann.com/certificates.html |
|---|
History
| Update and Revision | Revision Number: 0.12 Revision Date: 11-27-2025 |
|---|
