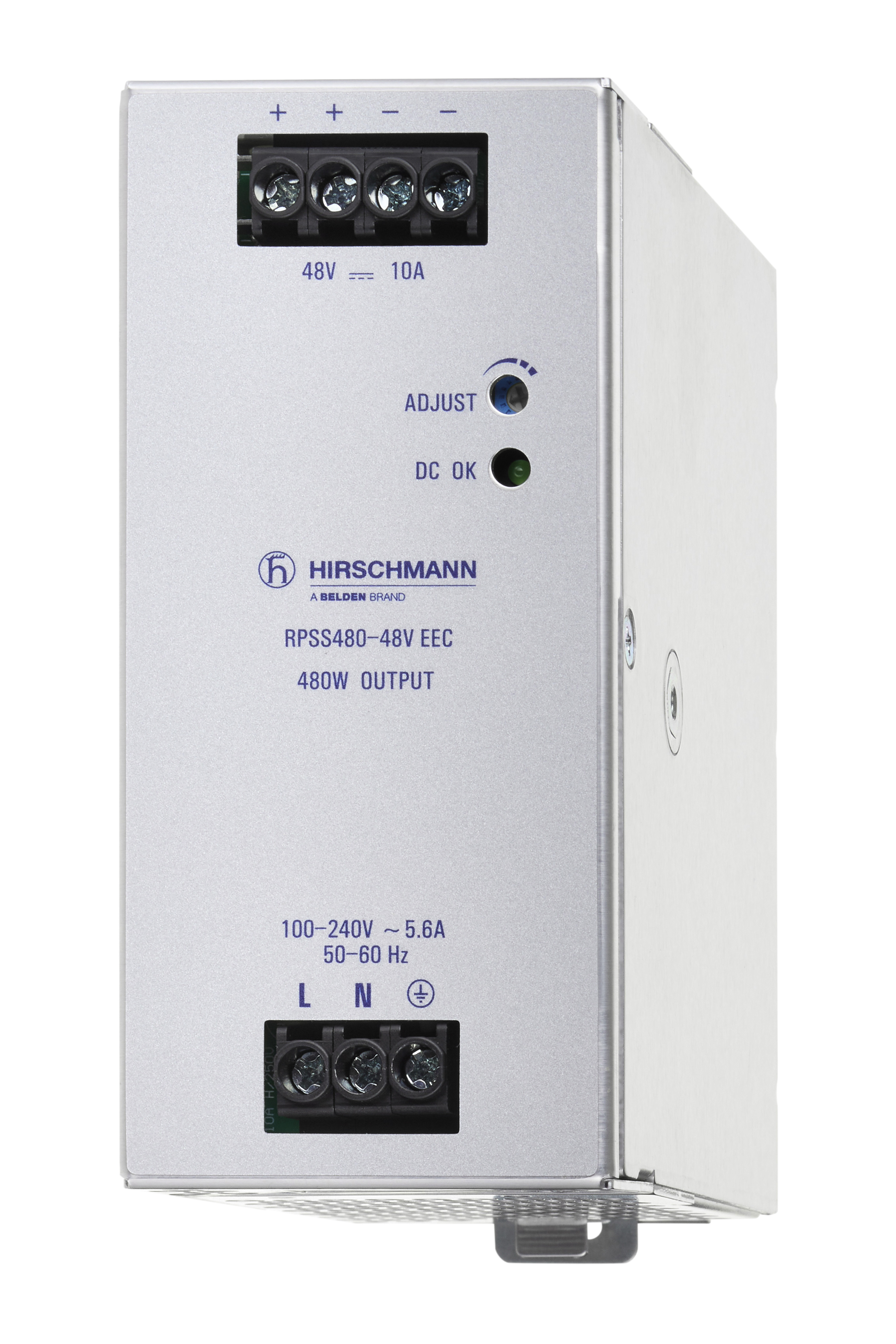

48 V DC DIN rail power supply unit
Din-Rail power supply, 480 W output power, 48 V DC output voltage, 100-240 V AC input voltage, operating temperature -30 oC up to +70 oC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RPSS480-48V EEC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Type | Order |
|---|---|---|
| 942343480 | RPSS480-48V EEC | Order online |
Specifications
Product description
| Type | RPSS480-48V EEC |
|---|
More Interfaces
| Voltage input | 1 x terminal block, 3-pin |
|---|---|
| Voltage output | 1 x terminal block, 4-pin |
Power requirements
| Current consumption | max. 4,7 A at 115 V AC, 2,4 A at 230 V AC |
|---|---|
| Input Voltage | 100-240 V AC |
| Operating Voltage | 90-264 V AC |
| Output Current | 10 A |
| Activation Current | 40 A at 230 V AC |
Power Output
| Output voltage | 48 V DC |
|---|
Ambient conditions
| MTBF (Telcordia SR-332 Issue 3) @ 25°C | 700000 hrs. |
|---|---|
| Operating temperature | -30-+70 °C |
| Note | derating starting at 40°C with 115 V AC derating starting at 50°C with 230 V AC |
| Minimum Storage Temperature | -40-+85 °C |
| Relative humidity (non-condensing) | 20-90 % |
| Dimensions (WxHxD) | 56 mm x 123,6 mm x 116,8 mm |
| Weight | 870 g |
| Mount Type | DIN Rail |
| IP Protection Rating | IP20 |
Mechanical stability
| IEC 60068-2-27 shock | 10 g, 11 ms duration |
|---|
EMC interference immunity
| EN 61000-4-2 electrostatic discharge (ESD) | ± 8 kV contact discharge; ± 15 kV air discharge |
|---|---|
| EN 61000-4-5 surge voltage | power lines: 4 kV (line/earth), 2 kV (line/line) |
Approvals
| Basis Standard | CE, UKCA, RCM, BIS |
|---|---|
| Safety of industrial control equipment | UL 62368, UL 61010-1 |
| Transportation | EN50121-4 |
Reliability
| Guarantee | 24 months (please refer to the <a href=" https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf " terms of guarantee </a for detailed information) |
|---|
Scope of delivery and accessories
| Scope of delivery | Rail power supply, Description and operating manual |
|---|
Further Instructions
| Certificates | https://www.doc.hirschmann.com/certificates.html |
|---|
History
| Update and Revision | Revision Number: 0.27 Revision Date: 03-30-2026 |
|---|
