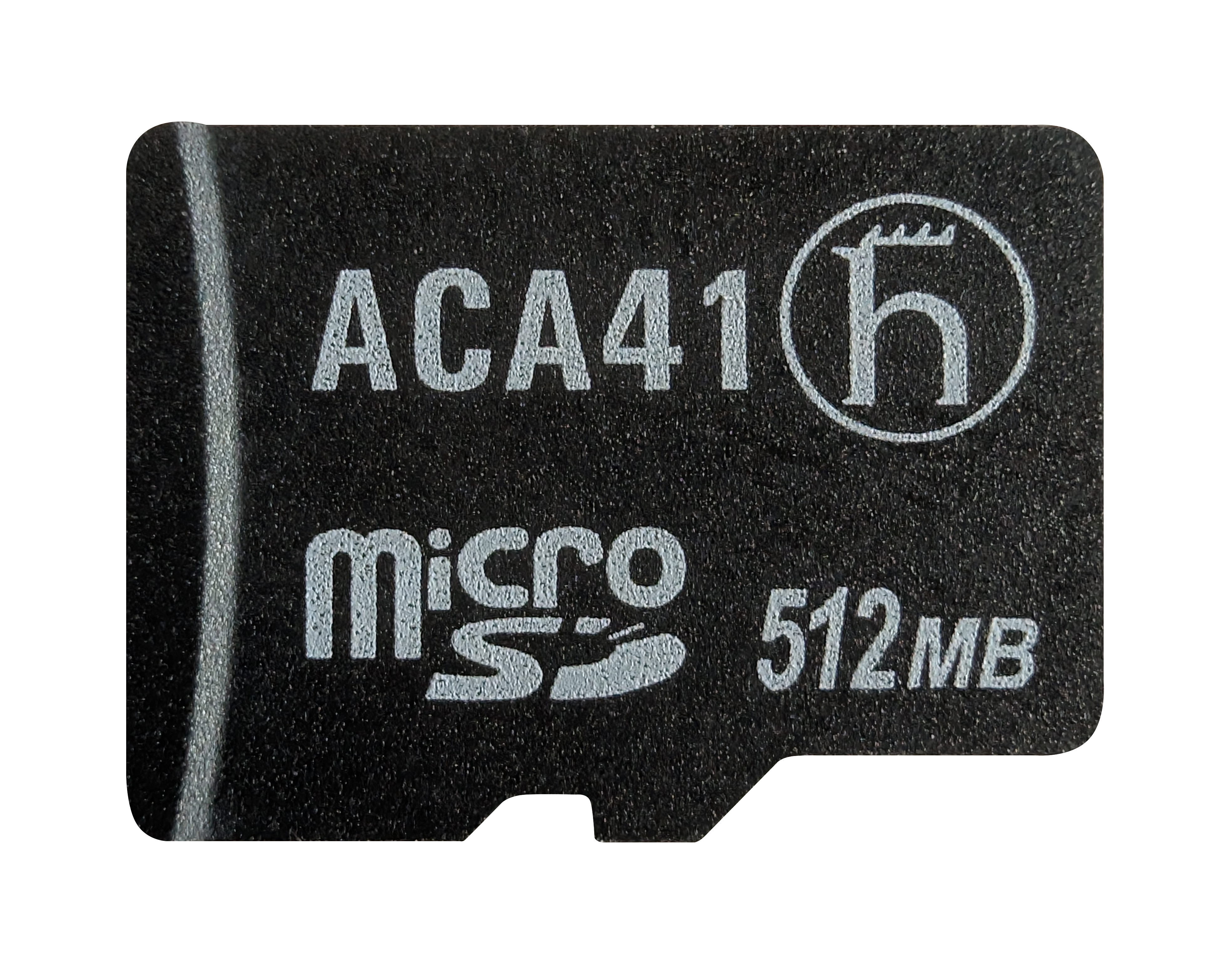

Auto-configuration adapter, microSD card with 512 MB, EEC
Auto-configuration adapter, mircoSD card with 512 MB, extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed devices to be easily commissioned and quickly replaced.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
ACA41 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Type | Order |
|---|---|---|
| 942342001 | ACA41 | Order online |
Specifications
Product description
| Name | AC41 |
|---|
Power requirements
| Operating Voltage | via the mircoSD switch interface |
|---|
Software
| Diagnostics | writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch) |
|---|---|
| Configuration | via the mircoSD switch interface |
Ambient conditions
| Operating temperature | -40-+85 °C |
|---|---|
| Minimum Storage Temperature | -40-+85 °C |
| Relative humidity (non-condensing) | 10-95 % |
| Dimensions (WxHxD) | 15 mm x 11 mm x 1,0 mm |
| Weight | 0,4 g |
| Mount Type | plug-in module |
| IP Protection Rating | IP20 |
Reliability
| Guarantee | 24 months (please refer to the <a href=" https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf " terms of guarantee </a for detailed information) |
|---|
Scope of delivery and accessories
| Scope of delivery | device, operating manual |
|---|
Further Instructions
| Product Documentation | https://www.doc.hirschmann.com |
|---|---|
| Certificates | https://www.doc.hirschmann.com/certificates.html |
History
| Update and Revision | Revision Number: 0.18 Revision Date: 11-27-2025 |
|---|
