Product Number: 0980 XSL 3913-121-007D-01F

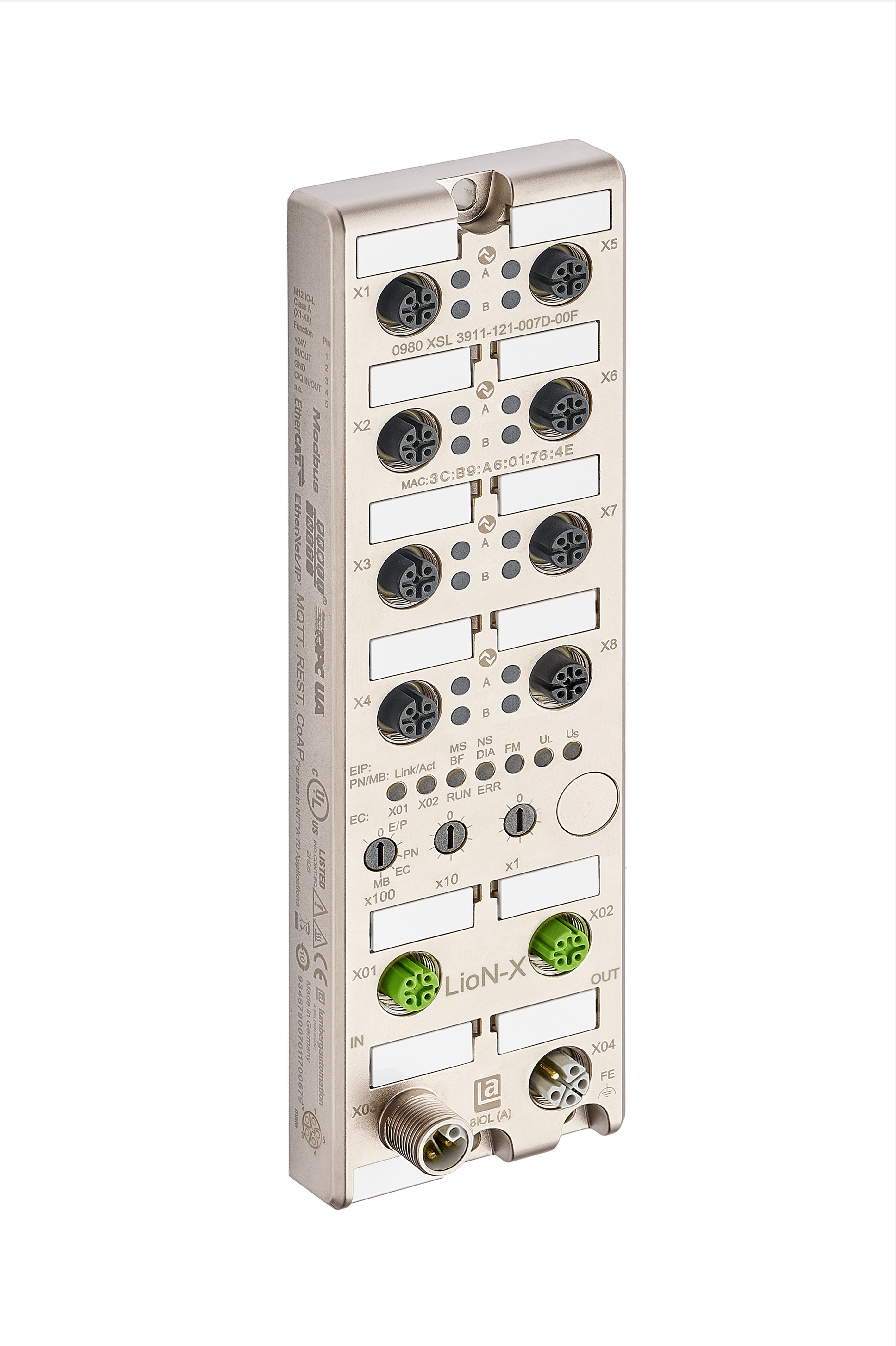

LioN-X 8xIO-Link Class A/B Mixmodule with Multiprotocol including CC-Link

LioN-X IO-Link Master, Multiprotocol (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link), IoT Protocols (OPC UA, MQTT, CoAP, REST), 4 IO-Link Master Ports Class A, 4 IO-Link Master Ports Class B, metal housing IP65, IP67, IP69K, 60mm, 8 x M12 A-coded I/O connection 5-poles, 2 x M12 D-coded Ethernet connection 4-poles, 2 x M12 L-coded power supply

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

0980 XSL 3913-121-007D-01F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Order
935703001	0980 XSL 3913-121-007D-01F	Order online

Specifications

Information

Product Family	I/O Systems: Active - Standalone
Side 1 Product Sub Family	LioN-X
Item Description	0980 XSL 3913-121-007D-01F
Device Type	IO-Link Master
Protocol Compatibility	Multiprotocol
I/O Function	4 IOL (Class A) + 4 IOL (Class B)
Bus Connection	M12, 4-poles, D-coded
Power Supply Connection	M12 Power, 5-poles, L-coded
I/O Connection	M12, 5-poles, A-coded
I/O Type	IO-Link Master
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
System Power Supply Connection Note	*do not connect / disconnect under voltage!
Update and Revision	Revision Number: 0.57 Revision Date: 02-20-2026

General Data

Housing Material	Metal, zinc die-cast
Housing Plating	Nickel, matt
Housing Color	Grey Metallic
Protection Degree / IP Rating**	IP65, IP67, IP69K
Potted	Yes
Dimensions (W x H x D)	60 mm x 31 mm x 200 mm
Weight	480 g
Ambient Temperature (Operation)*	-40 °C to 70 °C
Ambient Temperature (Storage/Transport)	-40 °C to 70 °C
Permissible Humidity (Operation)	5 % ... 95 % (For UL applications max. 80 %)
Permissible Humidity (Storage/Transport)	5 % ... 95 % (For UL applications max. 80 %)
Air Pressure (Operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air Pressure (Storage/Transport)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Flammabilty Class	UL 94 (IEC 61010)
Protection Class	III, IEC 61140, EN 61140, VDE 0140-1
Side 1 Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Vibration Resistance	15 g / 5 -500 Hz
Shock Resistance	50 g / 11ms
Mean Time Between Failures (MTBF)	4604052
Contact Base Material	M12, D-coded, CuSn, Gold-plated \| M12 Power, L-coded, CuNi, Gold-plated
Contact Bearer Material	PA / TPU
MTTF	4.604.052 h acc. to Telcordia SR-332 (2011) 20°C
O-Ring Material	FKM
Mount Type	2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts.
Fastening Torque (Fixing Screw)	M4: 1 Nm
Fastening Torque (Ground Connection (FE))	M4: 1 Nm
Fastening Torque (Bus Connection)	M12: 0.5 Nm
Fastening Torque (Power Connection)	M12: 0.5 Nm
Fastening Torque (I/O Connection)	M12: 0.5 Nm
Included in Delivery	Attachable Labels: 15x, Sealing Caps: 5x M12
Accessories to Order Separately	Ethernet cable, mounting adapter, sensor/actuator cable, power cable

PROFINET

Protocol	PROFINET
Connection	M12 4-poles, D-coded
Number of Connections	2
Specification	V2.3
Conformance Class	C (CC-C)
Performance Class	RT (switch supports IRT)
Netload Class	III
Transmission Rate	Fast Ethernet (10/100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Update Rate	min. 1 ms
Addressing	DCP
Media Redundancy Protocol (MRP)	Supported, MRP client
Shared Device	Supported
Shared Input	not supported
Topology Detection	LLDP, SNMP V3
Easy Device Replacement	Supported, based on LLDP
Supported Network Protocols (Other)	ARP, HTTP, Ping, SNMP V1, TCP/IP

EtherNet/IP

Protocol (EtherNet/IP)	EtherNet/IP
Connection	M12, 4-poles, D-coded
Number of Connections	2
Specification	CIP V3.2x, EIP Adaption of CIP V1.2x
Transmission Rate	Fast Ethernet (10/100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Requested Packet Interval (RPI)	min. 1 ms
Addressing	BootP, DHCP, Rotary Address Switches
Address Switches Range	0 to 255 dec
Connection Types	Exclusive Owner, Input Only, Listen Only
CIP Msg Connection Limit	6
CIP I/O Connection Limit	3
Device Level Ring (DLR)	Supported, beacon based
Quick Connect (QC)	Supported, ≤ 500 ms
Supported Network Protocols (Other)	ACD, ARP, BootP, DHCP, HTTP, IGMP, Ping, TCP/IP

EtherCAT

Protocol	EtherCAT
Connection	M12 4-poles, D-coded
Number of Connections	2
Specification	ETG.1000 V1.2
Transmission Rate	Fast Ethernet (10/100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Update Rate	min. 250 μs
Addressing	Auto-increment addressing, fixed position addressing
Mailbox Protocols	CANopen over EtherCAT (CoE), File access over EtherCAT (FoE), Ethernet over EtherCAT (EoE)
Supported Network Protocols (Other)	Over EoE: HTTP, Ping, TCP/IP

CC-Link IE Field Basic

Protocol	CC-Link IE Field Basic
Connection	M12 LAN, 4-poles. D-coded
Number of Connections	2
Specification	v2
Transmission Rate	Fast Ethernet (100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Update Rate	min 1ms
Address Switches Range	0 to 99 dec
Number of stations	4
Supported Network Protocols	SNMP, ACD, ARP, HTTP, IGMP, Ping, TCP/IP
Supported IIoT Protocols	OPC UA, MQTT, CoAP, Syslog, Node Red

Modbus TCP

Protocol	Modbus TCP
Connection	M12, 4-poles, D-coded
Number of Connections	2
Specification	Modbus application protocol V1.1b
OPC UA	Cyclic data read/write, Diagnosis data, Event data
MQTT	Cyclic data read/write, Diagnosis data, Event data
REST API	Cyclic data read/write, Diagnosis data, Event data
CoAP	Cyclic data read/write, Diagnosis data, Event data

IO-Links

Protocol	IO-Link Master
Connection	M12 5-poles, A-coded
Number of Connections	8
Specification	v1.1.3 ready, IEC 61131-9
IO-Link Class	Class A + Class B
Transmission Rate / COM Mode	COM1, COM2, COM3
Parameter Storage	supported

Power Supply

Connection Module Supply Voltage	M12 Power, 5-poles, L-coded
Number of Connections	2
Module Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Module Supply Voltage (Range)	20V DC to 30 V DC
Reverse Polarity Protection	Yes
Status Indicator (System Supply)	LED green
Diagnostic Indicator	LED red
Connection Sensor Supply Voltage	M12 Power, 5-poles, L-coded
Sensor Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Sensor Supply Voltage (Range)	20V DC to 30 V DC
Status Indicator (Sensor Supply)	LED green
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	18 V DC to 30 V DC
Status Indicator (Actuator Supply)	LED green

IO-Link Master Channels

Number of IO-Link Master Channels	max. 8, configurable
Connection	M12, 5-poles, A-coded
IO-Link Class A Ports	4x, X1 to X4
IO-Link Class B Ports	4x, X5 to X8
IO-Link Specification	V1.1.3
Parameter Storage	Supported
Supported COM Modes	4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3)
Cycle Time / Update Rate	min. 1 ms for all channels at 32 Byte IN / OUT
Nominal Current 1L+ (Pin 1)	4A
Nominal Voltage	24 V DC via US (system power supply)
Nominal Current 2L+/Uaux (Pin 2, B Ports)	2A
Nominal Current C/Q (Pin 4)	500mA
Perm. Conductor Length to Device	≤ 20 m
Status Indicator (IOL)	LED green per channel
Diagnostic Indicator	LED red per port

Digital Input Channels

Number of Digital Input Channels	up to 12
Connection	M12, 5-poles, A-coded
Number of Ports	8x, X1 to X8
Channel Type	Type 1 acc. to IEC 61131-2
Input Wiring	2-, 3-, 4-wire
Nominal Voltage	24 V DC via US (module power supply)
Sensor Type	PNP
Input Voltage Range "0" signal	-3 V DC ...+5 V DC
Input Voltage Range "1" signal	15 V DC ... 30 V DC
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Status Indicator (Inputs)	LED white or yellow per channel
Diagnostic Indicator	LED red per port

Digital Output Channels

Number of Digital Output Channels	up to 16
Connection	M12, 5-poles, A-coded
Number of Ports	8x, X1 to X8
Channel Type	p-switching
Output Wiring	2-, 3-wire
Nominal Voltage	24 V DC 12x via US + 4x via Uaux
Output Current per Channel	max. 2 A
Output Current per Module	max. 16 A (for UL compliance: max 9A)
Galvanically Isolated	YES
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Overload Behavior	Auto off and on switching / Manual restart
Status Indicator (Outputs)	LED white or yellow per channel
Diagnostic Idicator	LED red per port

Electrical Isolation

US (System Supply Voltage) / FE	500 V DC
Uaux / FE	500 V DC
Bus connection / FE	2000 V DC

EMC Conformance

EMC Directive	2014/30/EU
EN 61000-4-2 Electrostatic Discharge (ESD)	Criterion B; 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 Electromagnetic Field	Criterion A; Field intensity: 10 V/m
EN 61000-4-4 Fast Transients (Burst)	Criterion B, 2 kV
EN 61000-4-5 Surge Voltage	Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m
EN 61000-4-6 Conducted immunity	Criterion A; Test voltage 10 V
EN 55032 Radio Interference Properties	Class A

Safety & Environmental Compliance

CE	Yes
RoHS Compliant	Yes
China RoHS-Compliant	Yes

Approvals

UL	cULus Listed, UL 61010-1
CSA	Yes, via UL
PNO	Yes
ODVA	Yes
ETG	Yes
IO-Link	Yes

Notes

Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
System Power Supply Connection Note	*do not connect / disconnect under voltage!
Update and Revision	Revision Number: 0.57 Revision Date: 02-20-2026
