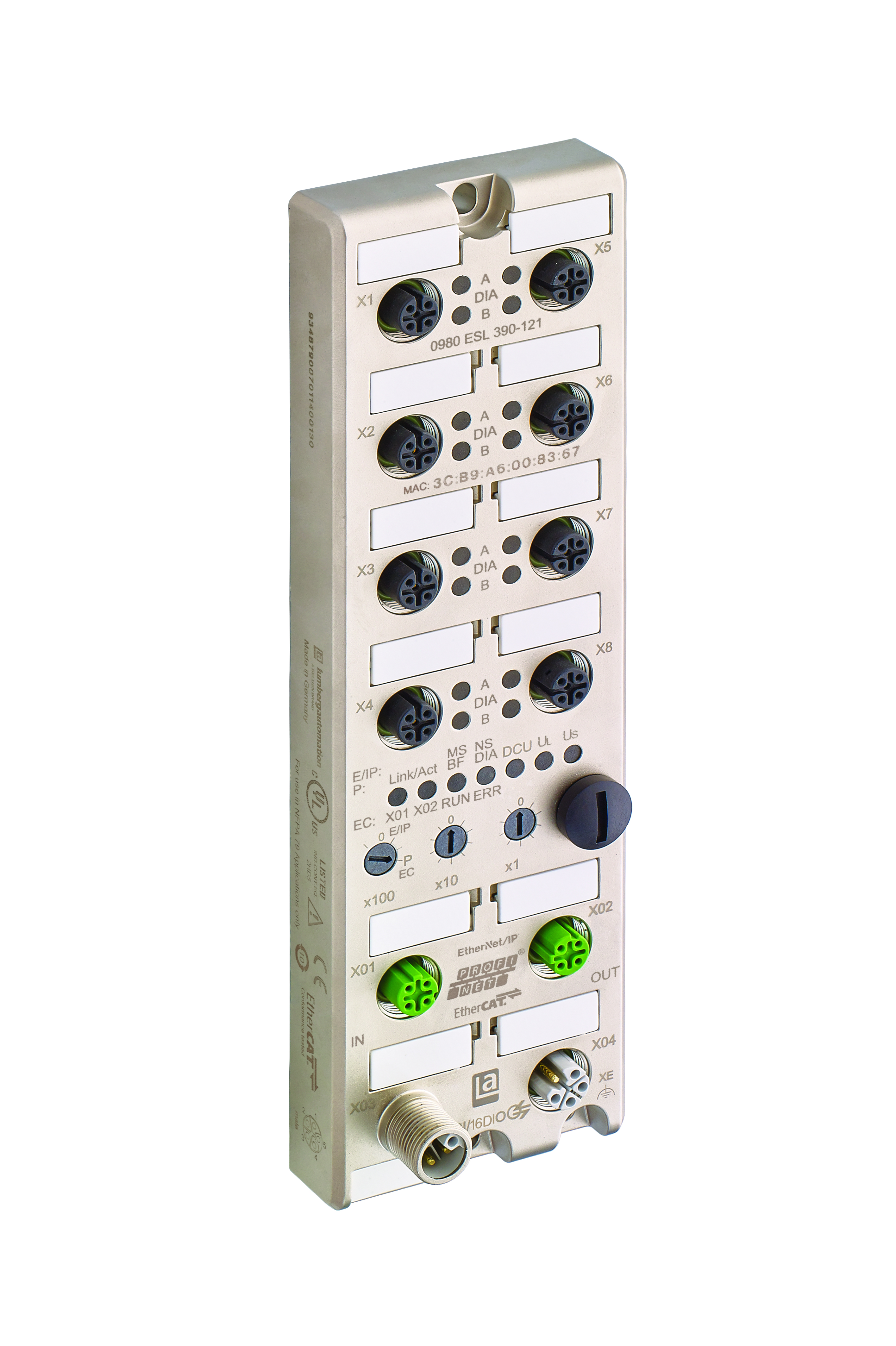

LioN-P, Multiprotocol IO-Link Master, S2-Redundancy, 4DI 4DO 8IOL (8x M12), M12 L-coded Power Supply, Metal, 60 mm
LioN-P, IO-Link Master, Multiprotocol (PROFINET and EtherNet/IP), S2-Redundancy, industrial metal housing, 60 mm, up to IP69K, 4 digital input and 4 digital output channels (2 A) with galvanic isolation and 8 IO-Link Master, 8 x M12 A-coded I/O connection, 5-poles, 2 x M12 D-coded bus connection, 4-poles, 2 x M12 L-coded power supply connection, 5-poles
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
0980 ESL 399-121-S2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 935021004 | 0980 ESL 399-121-S2 | Order online |
Specifications
Face View Side 1
| Product Family | I/O Systems: Active - Standalone |
|---|---|
| Vibration Resistance | 15 g / 5 -500 Hz |
Technical Data Side 1
| Side 1 Product Sub Family | LioN-P |
|---|---|
| Ambient Temperature (Operation)* | -20 °C to 70 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Pollution Degree | 3 acc. to EN 60664-1, VDE 0110-1 |
| Contact Base Material | M12, D-coded, CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated |
| Contact Bearer Material | PA |
| Housing Material | Metal, Zinc Die-cast |
| Housing Plating | Nickel, matt |
| Housing Color | Grey Metallic |
| O-Ring Material | FKM |
| Protective Circuit | Electronicaly: Overload protection, short-circuit protection |
| Mount Type | 2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
Approvals
| UL-File | E230848 |
|---|---|
| UL | cULus Listed, UL 61010-1 |
| CSA | Yes, via UL |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|---|
| CE | Yes |
Notes
| Protection Degree / IP Rating Note | *only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
History
| Update and Revision | Revision Number: 0.63 Revision Date: 04-30-2026 |
|---|
