Product Number: 0960 IOL 3816-001

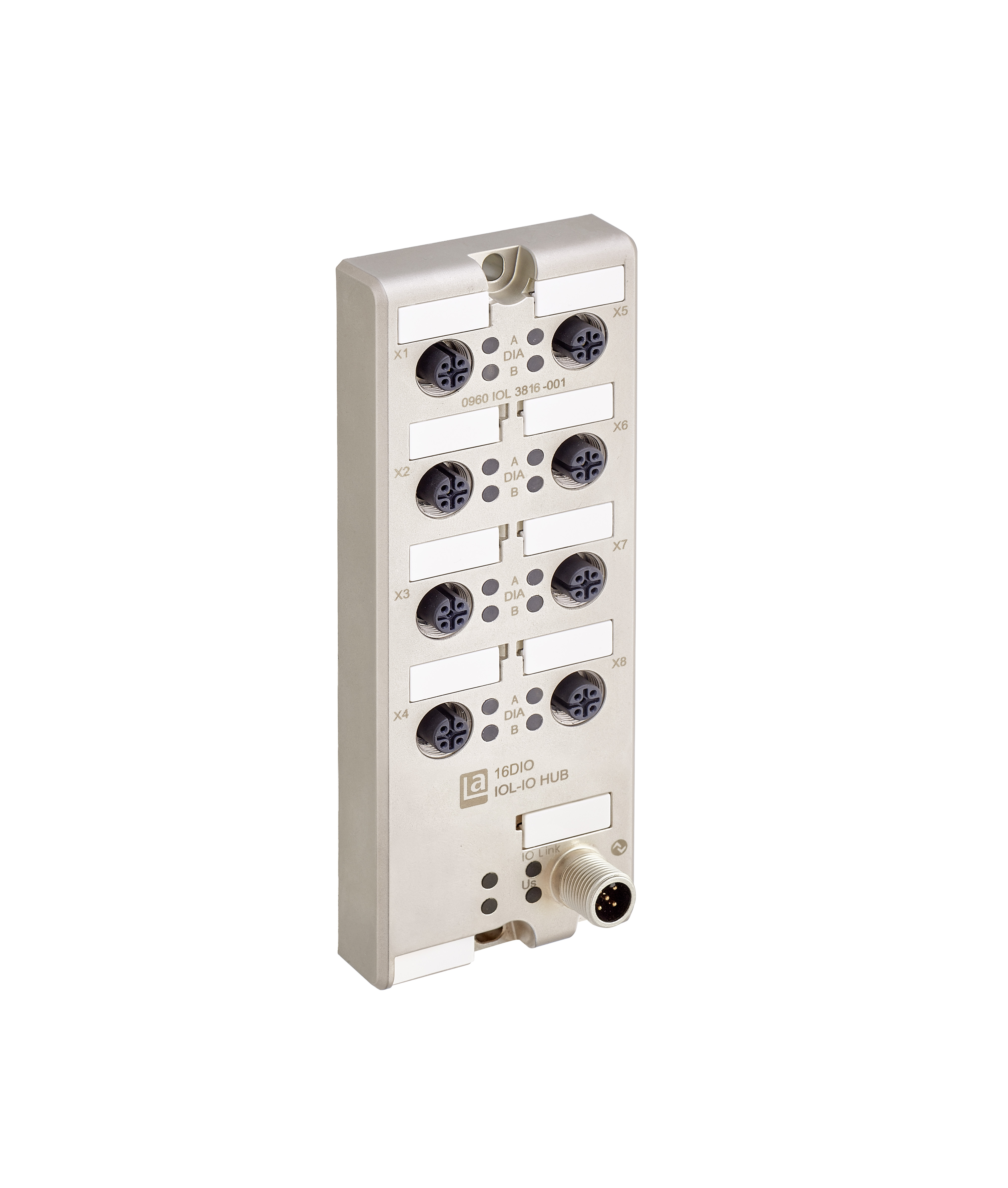

LioN-X, IO-Link I/O Hub, 16DIO (8x M12) LC, Class A, Metal, 60 mm

LioN-X, IO-Link I/O Hub, IO-Link, industrial metal housing, 60 mm, up to IP69K, 16 digital in-/output channels, 8 x M12 A-coded I/O connection, 5-poles, 1x M12 A-coded IO-Link Class A connection, 5-poles

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

0960 IOL 3816-001 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Order
935712001	0960 IOL 3816-001	Order online

Specifications

Information

Product Family	I/O Systems: Active - Standalone
Side 1 Product Sub Family	LioN-X
Item Description	0960 IOL 3816-001
Device Type	I/O Hub
Protocol Compatibility	IO-Link
I/O Function	16DIO
Bus Connection	M12, 5-poles, A-coded
Power Supply Connection	M12, 5-poles, A-coded
I/O Connection	M12, 5-poles, A-coded
I/O Type	Digital In-/Output (Universal)
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
System Power Supply Connection Note	*do not connect / disconnect under voltage!
Update and Revision	Revision Number: 0.32 Revision Date: 02-20-2026

General Data

Housing Material	Metal, Zinc Die-cast
Housing Plating	Nickel, matt
Housing Color	Grey Metallic
Protection Degree / IP Rating**	IP65, IP67, IP69K
Potted	Yes
Dimensions (W x H x D)	60 mm x 31 mm x 159 mm
Weight	380 g
Ambient Temperature (Operation)*	-40°C to 70 °C
Ambient Temperature (Storage/Transport)	-40°C to 85 °C
Permissible Humidity (Operation)	5 % ... 95 % (For UL applications max. 80 %)
Permissible Humidity (Storage/Transport)	5 % ... 95 % (For UL applications max. 80 %)
Air Pressure (Operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air Pressure (Storage/Transport)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Flammabilty Class	UL 94 (IEC 61010)
Protection Class	III, IEC 61140, EN 61140, VDE 0140-1
Side 1 Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Vibration Resistance	15 g / 5 -500 Hz
Shock Resistance	50 g / 11ms
Contact Base Material	M12, A-coded, CuSn, Gold-plated \| M12 Power, L-coded, CuNi, Gold-plated
Contact Bearer Material	PA
O-Ring Material	FKM
Mount Type	2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts.
Fastening Torque (Fixing Screw)	M4: 1 Nm
Fastening Torque (Ground Connection (FE))	M4: 1 Nm
Fastening Torque (Bus Connection)	M12: 0.5 Nm
Fastening Torque (Power Connection)	M12: 0.5 Nm
Fastening Torque (I/O Connection)	M12: 0.5 Nm

Modbus TCP

Connection	M12, 5-poles, A-coded

IO-Links

Protocol	IO-Link
IO-Link Class	Class A
Number of Connections	1
Specification	v1.1.3, IEC 61131-9
Transmission Rate / COM Mode	COM 3 (230.4 kbps)
Cycle Time / Update Rate	min. 2 ms
Parameter Storage	Supported
Frame Type	Type_2_V
Process Data Length	4 Bytes Input Data, 4 Bytes Output Data
Configuration	IODD, Process Data

Power Supply

Connection Module Supply Voltage	M12, 5-poles, A-coded (IO-Link)
Number of Connections	1
Current Carrying Capacity of Connector	max. 4 A
Module Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Module Supply Voltage (Range)	20 V DC to 30 V DC
Current Consumption (typ.)	80 mA (at 24 V DC)
Reverse Polarity Protection	Yes
Status Indicator (System Supply)	LED green
Diagnostic Indicator	LED red

Digital Input Channels

Number of Digital Input Channels	max. 16, universal
Connection	M12, 5-poles, A-coded
Number of Ports	8x, X1 to X8
Channel Type	Type 1 acc. to IEC 61131-2
Sensor Current Supply	max. 500 mA per port (at 25°C)
Input Wiring	2-, 3- wire
Nominal Voltage	24 V DC via US (module power supply)
Nominal Current	typ. 5 mA
Sensor Type	PNP
Input Voltage Range "0" signal	-3 V DC ...+5 V DC
Input Voltage Range "1" signal	15 V DC ... 30 V DC
Input Filter Time	0 to 3 ms, configurable
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Status Indicator (Inputs)	LED white or yellow per channel
Diagnostic Indicator	LED red per module

Digital Output Channels

Number of Digital Output Channels	max. 16, universal
Connection	M12, 5-poles, A-coded
Number of Ports	8x, X1 to X8
Output Current per Channel	max. 350mA
Channel Type	p-switching
Output Wiring	2-, 3-wire
Output Current per Module	max. 4 A
Galvanically Isolated	No
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Overload Behavior	Auto off and on switching / Manual restart
Status Indicator (Outputs)	LED white or yellow per channel
Diagnostic Idicator	LED red per module

Electrical Isolation

US (System Supply Voltage) / FE	500 V DC

EMC Conformance

EMC Directive	2014/30/EU
EN 61000-4-2 Electrostatic Discharge (ESD)	Criterion B; 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 Electromagnetic Field	Criterion A; Field intensity: 10 V/m
EN 61000-4-4 Fast Transients (Burst)	Criterion B, 2 kV
EN 61000-4-5 Surge Voltage	Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m
EN 61000-4-6 Conducted immunity	Criterion A; Test voltage 10 V
EN 55032 Radio Interference Properties	Class A

Safety & Environmental Compliance

CE	Yes
RoHS Compliant	Yes
China RoHS-Compliant	Yes

Approvals

UL	cULus Listed, UL 61010-1
UL-File	E230848
CSA	Yes, via UL
IO-Link	Yes

Notes

Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
System Power Supply Connection Note	*do not connect / disconnect under voltage!
Update and Revision	Revision Number: 0.32 Revision Date: 02-20-2026
