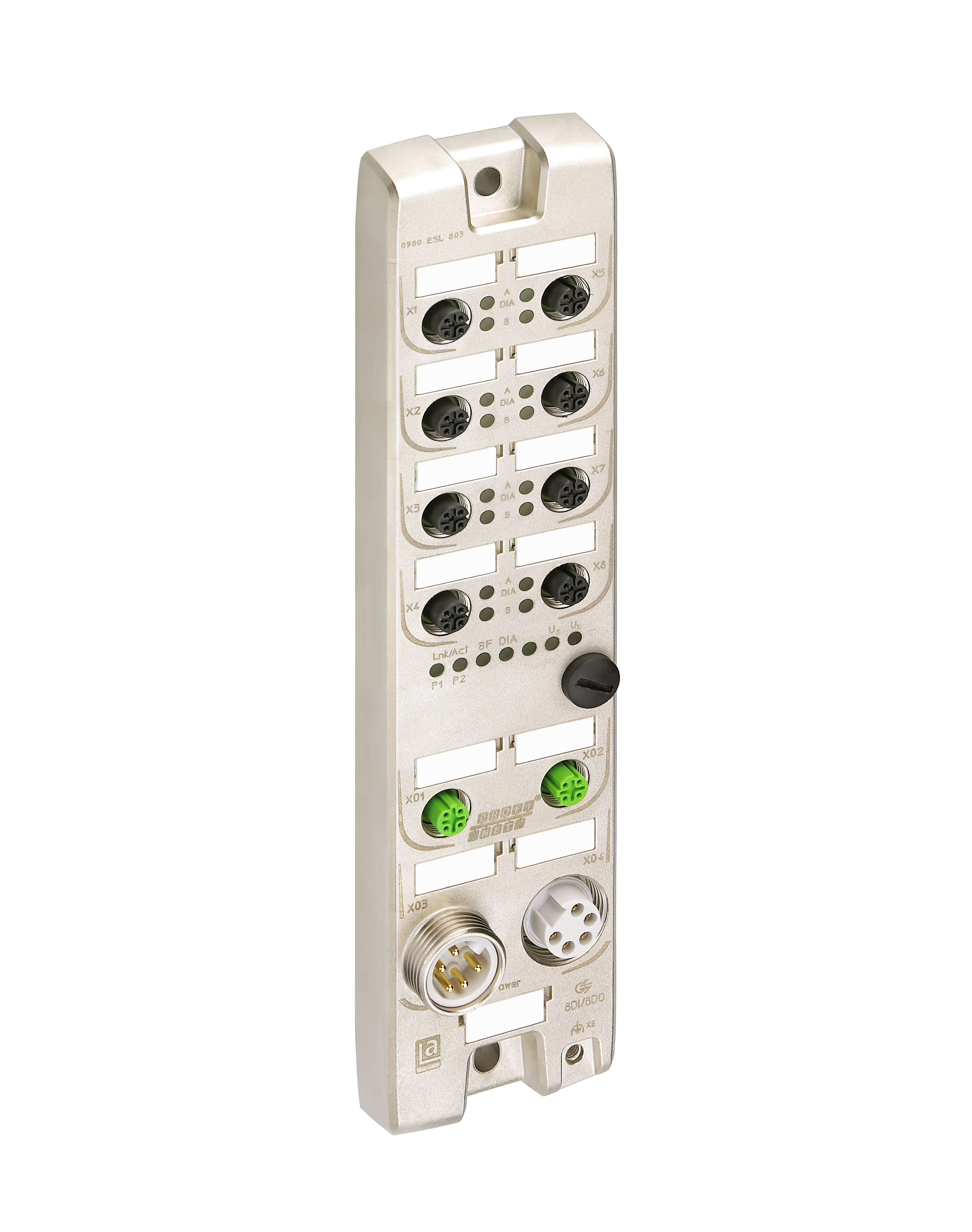

LioN-R, PROFINET I/O Device, 16DO (8x M12), 7/8" Power Supply, Metal, 60 mm
LioN-R M12-60, Metal, PROFINET, 16 DO, 7/8" Power Supply, 5-poles
- Availability
- Global
- Status
- Active
Specifications
Information
| Product Family | I/O Systems: Active - Standalone |
|---|---|
| Side 1 Product Sub Family | LioN-R |
| Item Description | 0980 ESL 802-PNET 16DO-M12-R |
| Device Type | I/O Module |
| Protocol Compatibility | PROFINET |
| I/O Function | 16DO |
| Bus Connection | M12, 4-poles, D-coded |
| Power Supply Connection | 7/8" Power, 5-poles |
| I/O Connection | M12, 5-poles, A-coded |
| I/O Type | Digital Output |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
| Update and Revision | Revision Number: 0.57 Revision Date: 02-20-2026 |
General Data
| Housing Material | Metal, Zinc Die-cast |
|---|---|
| Housing Plating | Nickel, matt |
| Housing Color | Grey Metallic |
| Protection Degree / IP Rating** | IP65, IP67 |
| Potted | Yes |
| Dimensions (W x H x D) | 60 mm x 31 mm x 265 mm |
| Weight | 630 g |
| Ambient Temperature (Operation)* | -10 °C to 60 °C |
| Side 1 Pollution Degree | 3 acc. to EN 60664-1, VDE 0110-1 |
| Vibration Resistance | 15 g / 5 -500 Hz |
| Shock Resistance | 50 g / 11ms |
| Contact Base Material | M12, D-coded, CuSn, Gold-plated | 7/8" CuZn, Gold-plated |
| Contact Bearer Material | PA / TPU |
| O-Ring Material | FKM |
| Mount Type | 2 hole screw mounting. Use standard M6 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
| Fastening Torque (Fixing Screw) | M6: 1 Nm |
| Fastening Torque (Ground Connection (FE)) | M4: 1 Nm |
| Fastening Torque (Bus Connection) | M12: 0.5 Nm |
| Fastening Torque (Power Connection) | 7/8": 1.5 Nm |
| Fastening Torque (I/O Connection) | M12: 0.5 Nm |
| Included in Delivery | Attachable Labels: 15x, Sealing Caps: 4x M12 |
PROFINET
| Protocol | PROFINET |
|---|---|
| Connection | M12 LAN, 4-poles, D-coded |
| Number of Connections | 2 |
| Specification | V2.3X |
| Conformance Class | B |
| Performance Class | RT (switch supports IRT) |
| Transmission Rate | Fast Ethernet (10/100 Mbit/s), Full Duplex |
| Transmission Method | 100 BASE-TX, with auto negotiation and auto crossing |
| Cycle Time / Update Rate | min. 4 ms |
| Addressing | DCP |
| Shared Device | Not Supported |
| Topology Detection | LLDP, SNMP V1 |
| Easy Device Replacement | Supported, based on LLDP |
| Supported Network Protocols (Other) | ARP, HTTP, Ping, SNMP V1, TCP/IP |
Power Supply
| Connection Module Supply Voltage | 7/8" Power, 5-poles |
|---|---|
| Number of Connections | 2 |
| Current Carrying Capacity of Connector | max. 9 A |
| Module Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Module Supply Voltage (Range) | 18 V DC to 30 V DC |
| Current Consumption (typ.) | 100 mA (at 24 V DC) |
| Reverse Polarity Protection | Yes |
| Status Indicator (System Supply) | LED green |
| Diagnostic Indicator | LED red |
| Connection Actuator Supply Voltage | via Module Supply Connection |
| Actuator Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Actuator Supply Voltage (Range) | 18 V DC to 30 V DC |
| Status Indicator (Actuator Supply) | LED green |
Digital Input Channels
| Nominal Voltage | 0 |
|---|
Digital Output Channels
| Number of Digital Output Channels | max. 16, fixed |
|---|---|
| Connection | M12, 5-poles, A-coded |
| Output Current per Channel | max. 1.6 A |
| Number of Ports | 8x, X1 to X8 |
| Channel Type | p-switching |
| Output Wiring | 2-, 3-wire |
| Nominal Voltage | 24 V DC via UL (actuator power supply) |
| Output Current per Module | max. 9 A |
| Galvanically Isolated | Yes |
| Protective Circuit | Electronicaly: Overload protection, short-circuit protection |
| Overload Behavior | Manual restart |
| Status Indicator (Outputs) | LED white or yellow per channel |
| Diagnostic Idicator | LED red per channel |
Electrical Isolation
| US (System Supply Voltage) / FE | 500 V DC |
|---|---|
| US / UL (Actuator Supply Voltage) | 500 V DC |
| UL / FE | 500 V DC |
| Bus connection / FE | 2000 V DC |
EMC Conformance
| EMC Directive | 2014/30/EU |
|---|---|
| EN 61000-4-2 Electrostatic Discharge (ESD) | Criterion B; 4 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 Electromagnetic Field | Criterion A; Field intensity: 10 V/m |
| EN 61000-4-4 Fast Transients (Burst) | Criterion B, 2 kV |
| EN 61000-4-5 Surge Voltage | Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
| EN 61000-4-6 Conducted immunity | Criterion A; Test voltage 10 V |
| EN 55022 Radio Interference Properties | Class A |
Safety & Environmental Compliance
| CE | Yes |
|---|---|
| RoHS Compliant | Yes |
| China RoHS-Compliant | Yes |
Approvals
| UL | cULus Listed, UL 508 |
|---|---|
| UL-File | E230848 |
| CSA | Yes, via UL |
| PNO | Yes |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
| Update and Revision | Revision Number: 0.57 Revision Date: 02-20-2026 |
