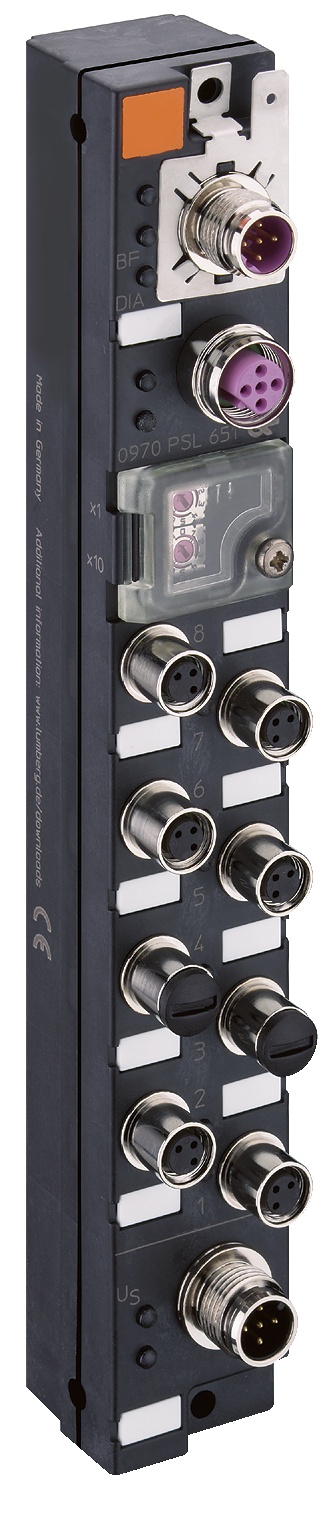

LioN-S, PROFIBUS I/O Device, 8DI (8x M8), M12 A-coded Power Supply, Plastic, 30 mm
LioN-S M8-30, Plastic, PROFIBUS, M12 Bus Connector, B-coded, 8 DI, M12 Power Supply, A-coded
- Availability
- Global
- Status
- Active
Specifications
Information
| Product Family | I/O Systems: Active - Standalone |
|---|---|
| Side 1 Product Sub Family | LioN-S |
| Item Description | 0970 PSL 651 |
| Device Type | I/O Module |
| Protocol Compatibility | PROFIBUS |
| I/O Function | 8DI |
| Bus Connection | M12, 5-poles, B-coded |
| Power Supply Connection | M12, 5-poles, A-coded |
| I/O Connection | M8, 3-poles, A-coded |
| I/O Type | Digital Input |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
| Update and Revision | Revision Number: 0.49 Revision Date: 02-20-2026 |
Product Life Cycle
| Housing Material | PBT + ASA |
|---|
General Data
| Protection Degree / IP Rating** | IP67 |
|---|---|
| Housing Color | Black |
| Potted | No |
| Dimensions (W x H x D) | 30 mm x 40 mm x 205 mm |
| Weight | 200 g |
| Ambient Temperature (Operation)* | -10 °C to 60 °C |
| Vibration Resistance | 15 g / 5 -500 Hz |
| Shock Resistance | 50 g / 11ms |
| Contact Base Material | M12, B-coded, CuSn, Gold-plated |
| Mount Type | 2 hole screw mounting. Use standard M4 x 25 / 30 / 40 (lateral) screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
| Fastening Torque (Fixing Screw) | M4: 1 Nm |
| Fastening Torque (Ground Connection (FE)) | M4: 1 Nm |
| Fastening Torque (Bus Connection) | M12: 0.5 Nm |
| Fastening Torque (Power Connection) | M12: 0.5 Nm |
| Fastening Torque (I/O Connection) | M8: 0.3 Nm |
| Included in Delivery | Attachable Labels: 10x, Sealing Caps: 2x M8 |
PROFIBUS
| Connection | M12, 5-poles, B-coded |
|---|---|
| Number of Connections | 2 |
| Transmission Rate | 9.6 kbps ... 12 Mbps |
| Transmission Rate Adjustment | Automatically with start of the communication |
| Addressing via Rotary Address Switches | 1 ...99 dec |
| Addressing via PROFIBUS | 1 ...125 dec |
| ID Number | 09C9 hex |
Power Supply
| Connection Module Supply Voltage | M12, 5-poles, A-coded |
|---|---|
| Number of Connections | 1 |
| Current Carrying Capacity of Connector | max. 4 A |
| Module Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Module Supply Voltage (Range) | 19 V DC to 30 V DC |
| Current Consumption (typ.) | 65 mA (at 24 V DC) |
| Reverse Polarity Protection | Yes |
| Status Indicator (System Supply) | LED green |
| Diagnostic Indicator | No |
| Connection Sensor Supply Voltage | via Module Supply Connection |
| Sensor Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Sensor Supply Voltage (Range) | 19 V DC to 30 V DC |
| Status Indicator (Sensor Supply) | LED green |
Digital Input Channels
| Number of Digital Input Channels | max. 8, fixed |
|---|---|
| Connection | M8, 3-poles, A-coded |
| Number of Ports | 8x, 1 to 8 |
| Channel Type | Type 3 acc. to IEC 61131-2 |
| Sensor Current Supply | max. 100 mA per port (at 30°C) |
| Input Wiring | 2-, 3-wire |
| Nominal Voltage | 24 V DC via US (module power supply) |
| Nominal Current | typ. 5 mA |
| Sensor Type | PNP |
| Input Voltage Range "0" signal | -3 V DC ...+5 V DC |
| Input Voltage Range "1" signal | 11 V DC ... 30 V DC |
| Input Filter Time | 1 ms, fixed |
| Protective Circuit | Electronicaly: Overload protection, short-circuit protection |
| Status Indicator (Inputs) | LED yellow per channel |
| Diagnostic Indicator | LED red per port |
Electrical Isolation
| US (System Supply Voltage) / FE | 500 V DC |
|---|---|
| Bus connection / FE | 500 V DC |
EMC Conformance
| EMC Directive | 2014/30/EU |
|---|---|
| EN 61000-4-2 Electrostatic Discharge (ESD) | Criterion B; 4 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 Electromagnetic Field | Criterion A; Field intensity: 10 V/m |
| EN 61000-4-4 Fast Transients (Burst) | Criterion B, 2 kV |
| EN 61000-4-5 Surge Voltage | Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
| EN 61000-4-6 Conducted immunity | Criterion A; Test voltage 10 V |
| EN 55022 Radio Interference Properties | Class A |
Safety & Environmental Compliance
| CE | Yes |
|---|---|
| RoHS Compliant | Yes |
Approvals
| UL | cULus Listed, UL 508 |
|---|---|
| UL-File | E230848 |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
| Update and Revision | Revision Number: 0.49 Revision Date: 02-20-2026 |
