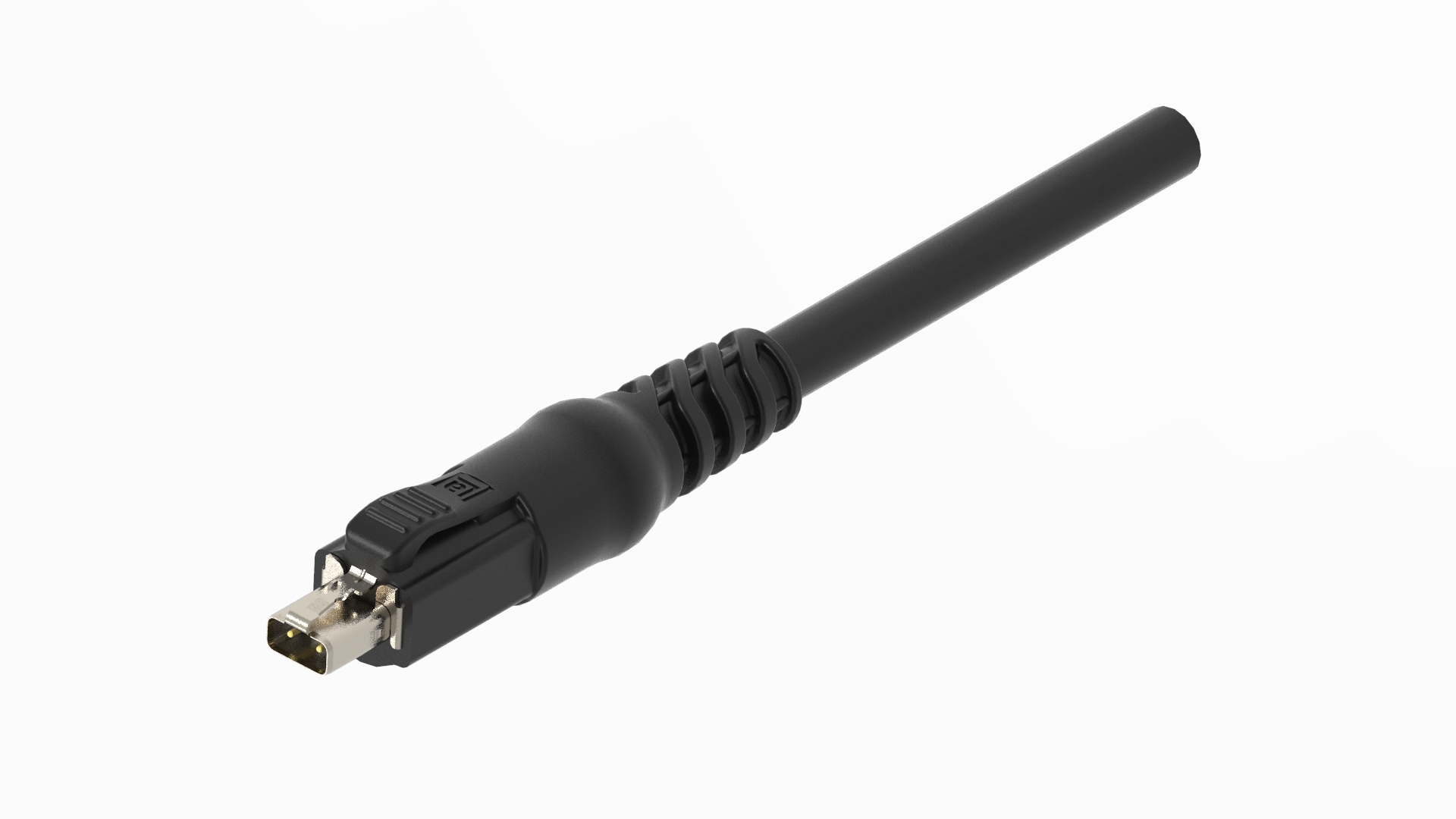

Product Number: SPEG20-LL-1014

SPE single ended cordset: T1 Industrial male straight 6P-LL Code, IP20, XLPE

Ships from and sold by A5 IT.

Specifications

Product Family	SPE Cordset
Connector Type	Cordset, single ended
Shielding Type	Shielded
Voltage Rating	60 V
Operating Voltage	< 50 V AC / 60 V DC
Current Rating	4 A
Data Transmission Type	1 Gbit/s bis 40 m / 10 Mbit/s bis 1000 m
Update and Revision	Revision Number: 0.30 Revision Date: 07-15-2026

Pin 1	Blue
Pin 2	Natural White

Side 1 Product Sub Family	SPE Cordset T1 Industrial
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Latch-Locking
Number of Pins	2
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C (Cable +80 °C)
Protection Degree / IP Rating**	IP20
Side 1 Design Standard	IEC 63171-6
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Molded Body Material	TPU
Molded Body Color	Black
Attachment Material	CuZn
Attachment Plating	Nickel-plated

Cable Number	1014
Number of Wires	2
Conductor Material	Cu
Cable Jacket Material	XLPE
Cable Jacket Color	black
Cable Diameter D	ø 4.80 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1,65 ±0.1 mm
Overall Shield (Cable)	Tinned copper
Foil shield	Al-myler wrapping foil
Ambient Temperature (Fixed Installation)	- 40 °C - +80 °C
UL Cable Type	AWM: 22303
Flammability Class (Cable Jacket)	FT-2
Cable Characteristics	Exclusion of dangerous materials
