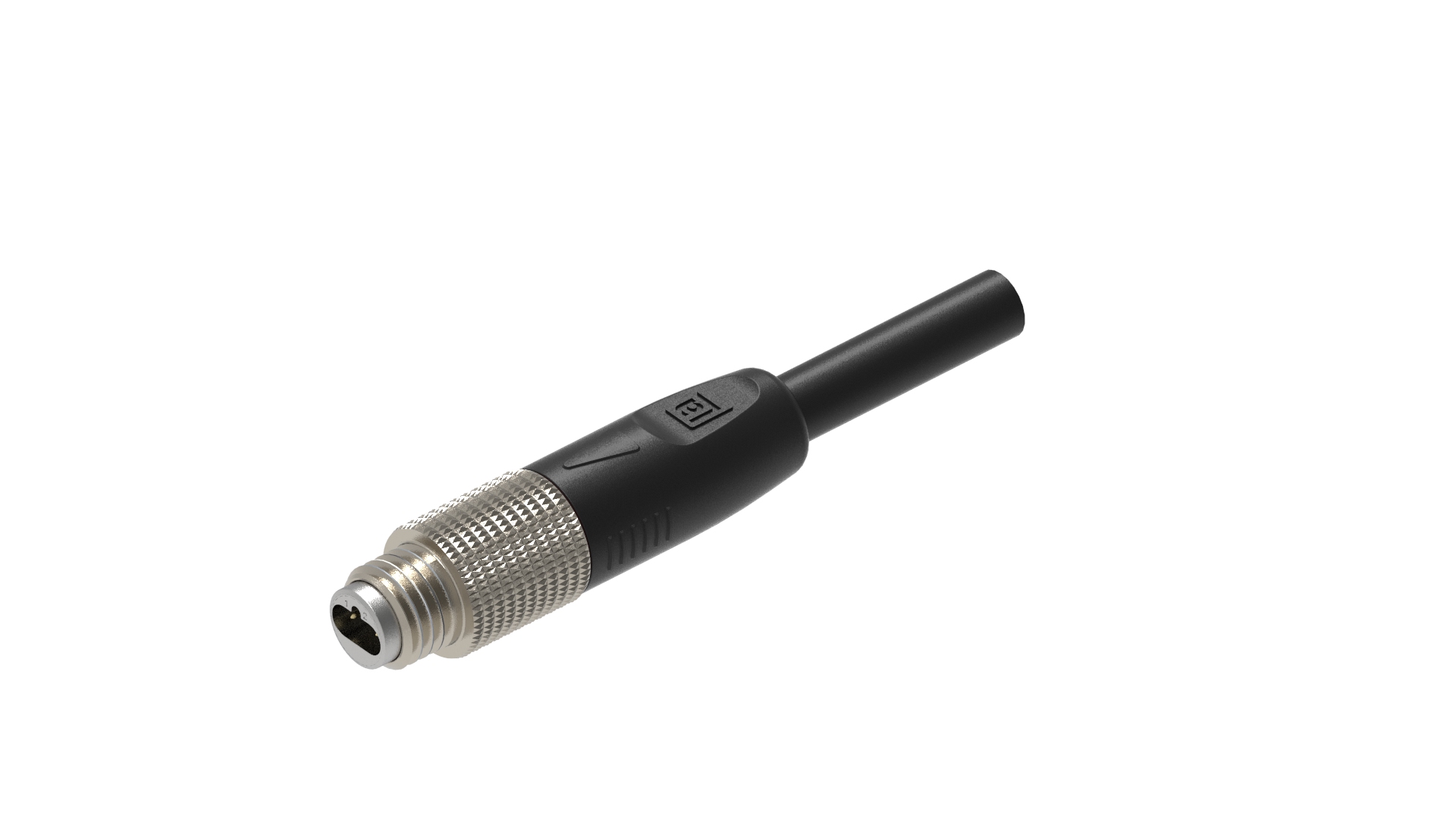

SPE single ended cordset: M8 male straight 6P-M8 Code, IP65/67, XLPE
SPE single ended cordset: M8 male straight 6P-M8 Code, IP65/67, XLPE
- Availability
- Global
- Status
- Active
- Orderable items
- 8
Part numbers
RSMGVS-8M-1014 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 935100015 | RSMGVS-8M-1014/1 M | 1 m | Order online |
| 935100017 | RSMGVS-8M-1014/2 M | 2 m | Order online |
| 935100020 | RSMGVS-8M-1014/5 M | 5 m | Order online |
| 935100013 | RSMGVS-8M-1014/10 M | 10 m | Order online |
| 935100014 | RSMGVS-8M-1014/15 M | 15 m | Order online |
| 935100016 | RSMGVS-8M-1014/20 M | 20 m | Order online |
| 935100018 | RSMGVS-8M-1014/30 M | 30 m | Order online |
| 935100019 | RSMGVS-8M-1014/40 M | 40 m | Order online |
Specifications
Information
| Product Family | SPE Cordset |
|---|---|
| Connector Type | Cordset, single ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 60 V AC/DC |
| Operating Voltage | < 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 4 A |
| Data Transmission Type | 1 Gbit/s bis 40 m / 10 Mbit/s bis 1000 m |
| Update and Revision | Revision Number: 0.30 Revision Date: 02-03-2025 |
Face View Side 1
| Pin 1 | Blue |
|---|---|
| Pin 2 | Natural White |
Technical Data Side 1
| Side 1 Product Sub Family | SPE Cordset M8 (T1 Industrial) |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Screw-Locking |
| Number of Pins | 2 |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 5x10^8 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C (Cable +80 °C) |
| Operating Temperature (UL) | max. + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 63171-6 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Fastening Torque (Attachment) | M 8x1: 40 Ncm, hand-tight |
Cable Data
| Cable Number | 1014 |
|---|---|
| Number of Wires | 2 |
| Conductor Material | Cu |
| Cable Jacket Material | XLPE |
| Cable Jacket Color | black |
| Cable Diameter D | ø 4.80 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1,65 ±0.1 mm |
| Overall Shield (Cable) | Tinned copper |
| Foil shield | Al-myler wrapping foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - +80 °C |
| UL Cable Type | AWM: 22303 |
| Flammability Class (Cable Jacket) | FT-2 |
| Cable Characteristics | Exclusion of dangerous materials |
Approvals
| UL | UL 2238; cULus |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|
History
| Update and Revision | Revision Number: 0.30 Revision Date: 02-03-2025 |
|---|
