RSTS 8-RKTS 8-391

Product Number: RSTS 8-RKTS 8-391

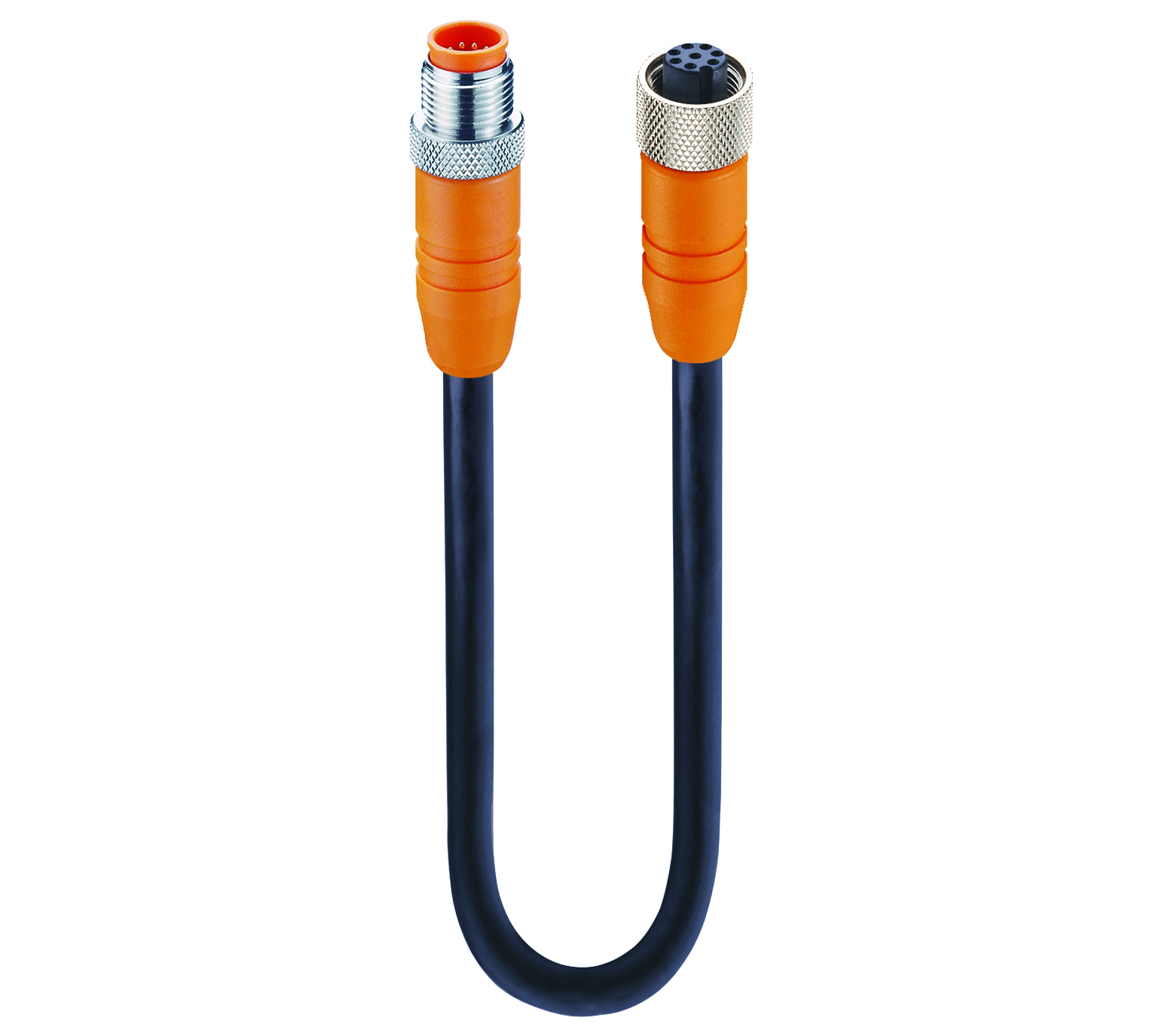

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 8-pin M12 Standard connector to female straight A-coded orange 8-pin M12 Standard connector, shielded, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm2

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 8-pin M12 Standard connector to female straight A-coded orange 8-pin M12 Standard connector, shielded, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm2

Availability
Global
Status
Active
Orderable items
8
Request a quoteOrder options (8)

Ships from and sold by A5 IT.

Part numbers

RSTS 8-RKTS 8-391 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #Item DescriptionCable LengthOrder
1064RSTS 8-RKTS 8-391/2 M2 mOrder online
109223RSTS 8-RKTS 8-391/5 M5 mOrder online
109224RSTS 8-RKTS 8-391/7 M7 mOrder online
109847RSTS 8-RKTS 8-391/10 M10 mOrder online
6614RSTS 8-RKTS 8-391/0,5 M0.5 mOrder online
21410RSTS 8-RKTS 8-391/1,5 M1.5 mOrder online
21411RSTS 8-RKTS 8-391/25 M25 mOrder online
26864RSTS 8-RKTS 8-391/6 M6 mOrder online

Specifications

Information

Product FamilySensor / Actuator Connectors
Connector TypeCordset, double ended
Shielding TypeShielded
Voltage Rating30 V
Rated Impulse Voltage0.8 kV
Operating Voltage30 V AC/DC
Current Rating2 A
Protection Degree / IP Rating Note** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note DeratingNotice derating

Face View Side 1

Pin 1white
Pin 2brown
Pin 3green
Pin 4yellow
Pin 5grey
Pin 6pink
Pin 7blue
Pin 8red

Face View Side 2

Pin 1white
Pin 2brown
Pin 3green
Pin 4yellow
Pin 5grey
Pin 6pink
Pin 7blue
Pin 8red

Technical Data Side 1

Side 1 Product Sub FamilyM12 Standard
Side 1 Type of Contact/GenderMale
Connector DesignStraight
Attachment TypeCoupling Screw
Number of Pins8
Coding, Side 1A
Side 1 Contact Resistance≤ 10 mOhm
Insulation Resistance˃ 10^9 Ohm
Mating Cycles≤ 100
Ambient Temperature (Operation)*- 40 °C - + 90 °C
Protection Degree / IP Rating**IP65, IP67, IP69K
Side 1 Design StandardIEC 61076-2-101
Side 1 Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage CategoryIII acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base MaterialCuZn
Side 1 Contact PlatingCu/Au
Contact Bearer MaterialTPU-GF
Contact Bearer ColorOrange
Flammability Class (Contact Bearer)UL 94 HB
Molded Body MaterialTPU
Molded Body ColorOrange
Flammability Class (Molded Body)UL 94 HB
Attachment MaterialCuZn
Attachment PlatingNickel-plated
Shielding MaterialCuZn, tin-plated
Fastening Torque (Attachment)M 12x1: (50-60) Ncm, hand-tight
NoteDo not connect or disconnect under load.

Cable Data

Cable Number391
Conductor Size0.25 mm2
Number of Wires8 (4x2)
Minimal Bending Radius (Fixed Inst)˃ 5 x D
Minimal Bending Radius (Flexible Inst)˃ 10 x D
Cycles (Bending)˃ 2 M
Conductor MaterialCu
Cable Jacket MaterialPUR
Cable Jacket Colorblack
Cable Diameter Dø 7.0 ± 0.20 mm
Wire Insulation MaterialPP
Insulated Wire Diameterø 1.17 mm
Overall Shield (Cable)Mesh wire
Ambient Temperature (Fixed Installation)- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)- 25 °C - + 60 °C
UL Cable TypeAWM: 20549
Flammability Class (Cable Jacket)DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2

Technical Data Side 2

Side 2 Product Sub FamilyM12 Standard
Side 2 Type of Contact/GenderFemale
Connector Design, Side 2Straight
Attachment Type, Side 2Coupling Nut
Number of Pins, Side 28
Coding, Side 2A
Contact Resistance, Side 2≤ 10 mOhm
Insulation Resistance, Side 2˃ 10^9 Ohm
Mating Cycles, Side 2≤ 100
Ambient Temperature (Operation), Side 2*- 40 °C - + 90 °C
Protection Degree / IP Rating, Side 2**IP65, IP67, IP69K
Design Standard, Side 2IEC 61076-2-101
Pollution Degree, Side 23 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2CuZn
Contact Plating, Side 2Cu/Au
Contact Bearer Material, Side 2TPU
Contact Bearer Color, Side 2Black
Flammability Class (Contact Bearer), Side 2UL 94 HB
Molded Body Material, Side 2TPU
Molded Body Color, Side 2Orange
Flammability Class (Molded Body), Side 2UL 94 HB
Attachment Material, Side 2CuZn
Attachment Plating, Side 2Nickel-plated
Shielding Material, Side 2CuZn, tin-plated
O-Ring Material, Side 2FKM, green
Fastening Torque (Attachment), Side 2M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliantyes

Resistances

HalogenfreeDIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Notes

Protection Degree / IP Rating Note** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note DeratingNotice derating
