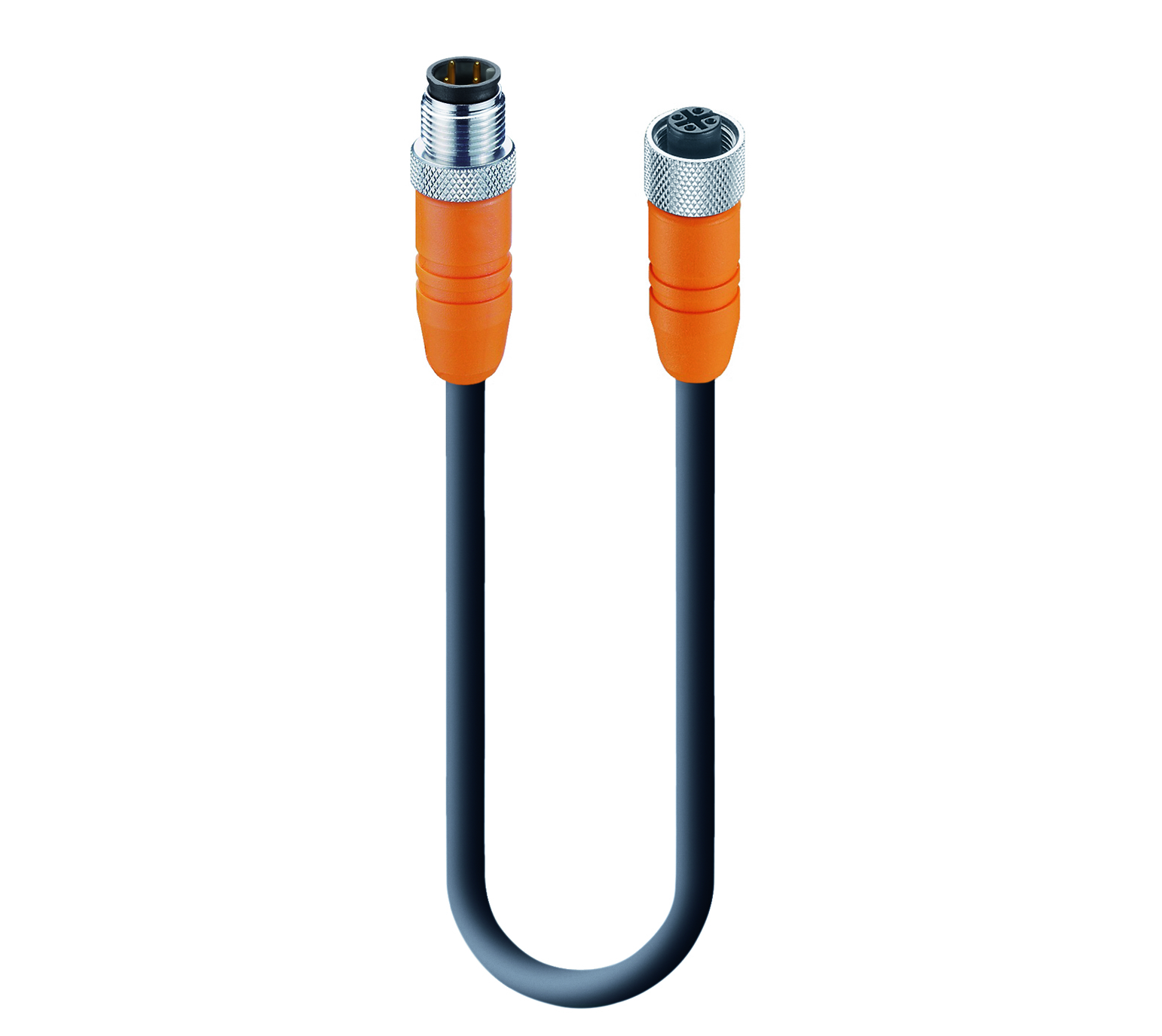

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 4-pin M12 Standard connector to female straight A-coded orange 4-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm2
Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 4-pin M12 Standard connector to female straight A-coded orange 4-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 29
Part numbers
RSTS 4-RKTS 4-288 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 46414 | RSTS 4-RKTS 4-288/0,3 M | 0.3 m | Order online |
| 46415 | RSTS 4-RKTS 4-288/0,6 M | 0.6 m | Order online |
| 46416 | RSTS 4-RKTS 4-288/1 M | 1 m | Order online |
| 49309 | RSTS 4-RKTS 4-288/5 M | 5 m | Order online |
| 49310 | RSTS 4-RKTS 4-288/1,5 M | 1.5 m | Order online |
| 49311 | RSTS 4-RKTS 4-288/3 M | 3 m | Order online |
| 59862 | RSTS 4-RKTS 4-288/15 M | 15 m | Order online |
| 66787 | RSTS 4-RKTS 4-288/7,5 M | 7.5 m | Order online |
| 68611 | RSTS 4-RKTS 4-288/20 M | 20 m | Order online |
| 89134 | RSTS 4-RKTS 4-288/25 M | 25 m | Order online |
| 105785 | RSTS 4-RKTS 4-288/30 M | 30 m | Order online |
| 105824 | RSTS 4-RKTS 4-288/45 M | 45 m | Order online |
| 109751 | RSTS 4-RKTS 4-288/2,5 M | 2.5 m | Order online |
| 934637051 | RSTS 4-RKTS 4-288/4 M | 4 m | Order online |
| 934637052 | RSTS 4-RKTS 4-288/6 M | 6 m | Order online |
| 47122 | RSTS 4-RKTS 4-288/10 M | 10 m | Order online |
| 17314 | RSTS 4-RKTS 4-288/12 M | 12 m | Order online |
| 46418 | RSTS 4-RKTS 4-288/2 M | 2 m | Order online |
| 14156 | RSTS 4-RKTS 4-288/3,5 M | 3.5 m | Order online |
| 630049309 | RSTS 4-RKTS 4-288/5 M | 5 m | Order online |
| 630049311 | RSTS 4-RKTS 4-288/3 M | 3 m | Order online |
| 630059862 | RSTS 4-RKTS 4-288/15 M | 15 m | Order online |
| 630046414 | RSTS 4-RKTS 4-288/0,3 M | 0.3 m | Order online |
| 630046415 | RSTS 4-RKTS 4-288/0,6 M | 0.6 m | Order online |
| 630046416 | RSTS 4-RKTS 4-288/1 M | 1 m | Order online |
| 22516 | RSTS 4-RKTS 4-288/6,5 M | — | Order online |
| 105823 | RSTS 4-RKTS 4-288/35 M | — | Order online |
| 22391 | RSTS 4-RKTS 4-288/40 M | — | Order online |
| 934637049 | RSTS 4-RKTS 4-288/9 M | — | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 250 V AC |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 4 A |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating | Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Face View Side 2
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Operating Temperature (UL) | max. + 50 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | TPU |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 288 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 M |
| Cycles (Torsion) | ˃ 1 M @ ± 180 °/1 m |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black |
| Cable Diameter D | ø 5.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.30 mm |
| Overall Shield (Cable) | Mesh wire |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Cable Characteristics | Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 90 °C |
| Operating Temperature (UL), Side 2 | max. + 50 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67, IP69K |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PA |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V-0 |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Orange |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| Shielding Material, Side 2 | CuZn, tin-plated |
| O-Ring Material, Side 2 | FKM, green |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
| Oil Resistance | Good chemical and oil resistance |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
