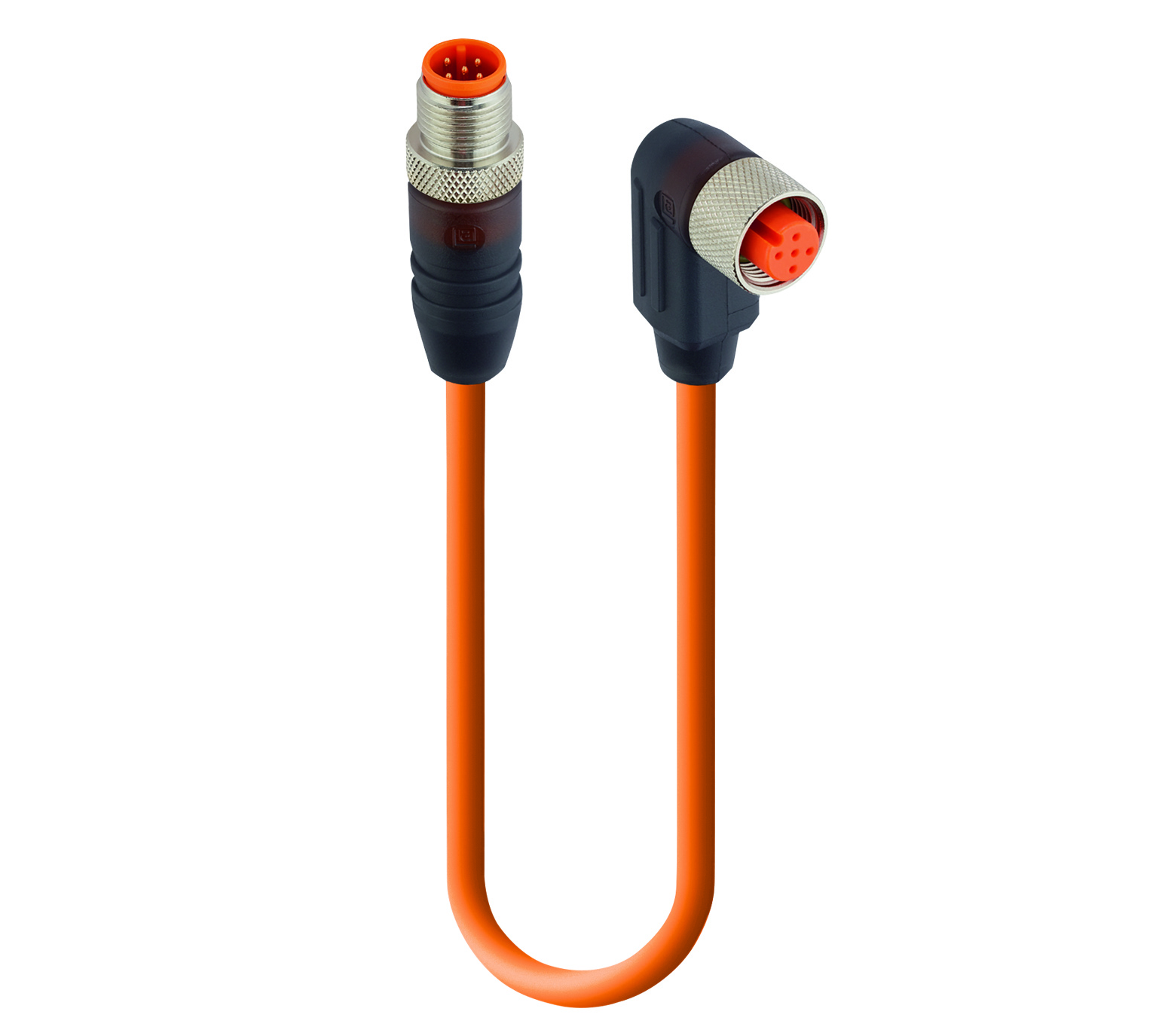

Product Number: RST 5-RKWT/LED P 5-458

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female angled A-coded translucent 5-pin M12 Standard connector with 3xLEDs (PNP), 10-30 V DC, 4 A; PUR orange cable, 5-wires, 0.34 mm2

Availability: Global
Status: Active
Orderable items: 7

Ships from and sold by A5 IT.

Part numbers

RST 5-RKWT/LED P 5-458 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
109386	RST 5-RKWT/LED P 5-458/0,6 M	0.6 m	Order online
109387	RST 5-RKWT/LED P 5-458/1,5 M	1.5 m	Order online
109388	RST 5-RKWT/LED P 5-458/1 M	1 m	Order online
109389	RST 5-RKWT/LED P 5-458/2 M	2 m	Order online
109390	RST 5-RKWT/LED P 5-458/5 M	5 m	Order online
109688	RST 5-RKWT/LED P 5-458/3 M	3 m	Order online
109782	RST 5-RKWT/LED P 5-458/0,3 M	0.3 m	Order online

Specifications

Information

Product Family	Sensor / Actuator Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	30 V
Rated Impulse Voltage	0.8 kV
Operating Voltage	10-30 V DC
Current Rating	4 A
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Face View Side 1

Pin 1	brown
Pin 2	white
Pin 3	blue
Pin 4	black
Pin 5	grey

Face View Side 2

Pin 1	brown
Pin 2	white
Pin 3	blue
Pin 4	black
Pin 5	grey

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	5
Coding, Side 1	A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Side 1 Design Standard	IEC 61076-2-101
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU-GF
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	Do not connect or disconnect under load.

Cable Data

Cable Number	458
Conductor Size	0.34 mm2
Number of Wires	5
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Welding Resistance	Welding spark resistant
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	orange similar to RAL 2003
Cable Diameter D	ø 7.0 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.50 ± 0.05 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	CSA FT-2
Cable Characteristics	Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and silicone; No adherance between insulated wires and between these wires and the sheath

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Female
Connector Design, Side 2	Angled
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	5
Coding, Side 2	A
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuSn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	Orange
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Translucent
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
O-Ring Material, Side 2	FKM, green
Function Indicator, Side 2	3xLEDs (PNP)
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	IEC 60754-1
Oil Resistance	VDE 0472-803

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating
