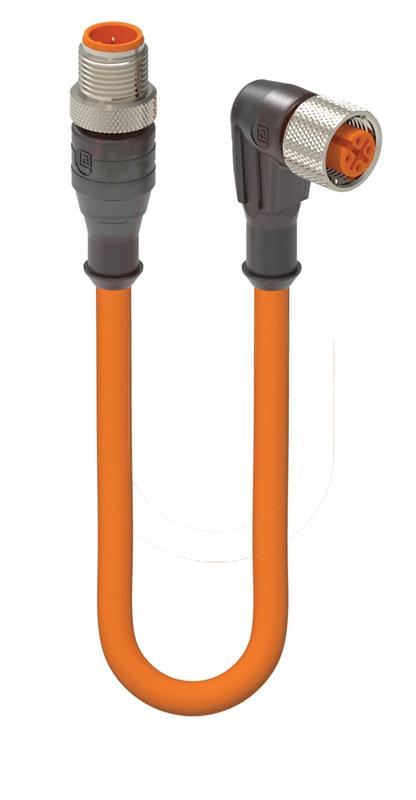

M12 to M12 cordset, Automotive Line, male to female, 4-pin, A-coded, straight to angled, PUR orange cable, unshielded, IP67
M12 to M12 cordset connector, Automotive Line, high welding spark resistance, male to female, 4-pin, A-coded, straight to angled, PUR orange cable (similar to RAL 2003), unshielded, AWM 20549, rated voltage 250 V AC/DC, rated current 4A, suited for IP67 environment
- Availability
- Global
- Status
- Active
Specifications
Information
| Product Family | Sensor / Actuator Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Note Derating | Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Technical Data Side 1
| Side 1 Product Sub Family | Automotive |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Nut |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
Cable Data
| Cable Number | 1006 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | 5 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Cycles (Bending) | 2 Mio. |
| Welding Resistance | Welding spark resistant |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | orange (similar to RAL 2003) |
| Cable Diameter D | ø 5.30 ± 0.15 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.25 ±0.05 mm |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | - 25 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT2 |
| Cable Characteristics | flame retardant, halogen-free, drag chains |
Technical Data Side 2
| Side 2 Product Sub Family | Automotive |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Angled |
| Coding, Side 2 | A |
| Attachment Material, Side 2 | CuZn |
Approvals
| UL | cULus |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes, acc. to IEC 60754-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|
