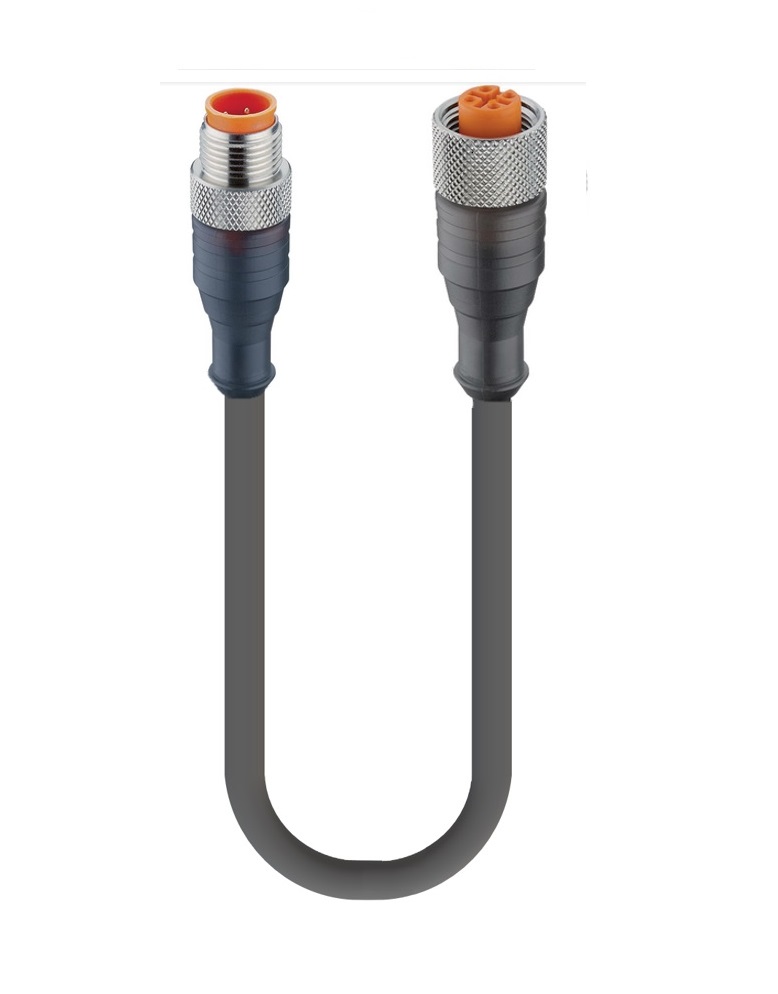

Sensor / Actuator Connectors: Cordset, double ended, M12 Standard, Straight Male, 4-pole to a, M12 Standard, Straight Female, 4-pole; with Grey TPE-C 22 AWG cable
Sensor / Actuator Connectors: Cordset, double ended, M12 Standard, Straight Male, 4-pole to a, M12 Standard, Straight Female, 4-pole, 250 V | 4 A; with Grey TPE-C 22 AWG cable
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
RST 4-RKT 4-771 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 600007145 | RST 4-RKT 4-771/0.3M | 0.3 m | Order online |
| 600007146 | RST 4-RKT 4-771/0.5M | 0.5 m | Order online |
| 600007147 | RST 4-RKT 4-771/0.6M | 0.6 m | Order online |
| 600007148 | RST 4-RKT 4-771/1.5M | 1.5 m | Order online |
| 600007149 | RST 4-RKT 4-771/10M | 10 m | Order online |
| 600007150 | RST 4-RKT 4-771/1M | 1 m | Order online |
| 600007151 | RST 4-RKT 4-771/2M | 2 m | Order online |
| 600007152 | RST 4-RKT 4-771/3M | 3 m | Order online |
| 600007153 | RST 4-RKT 4-771/4M | 4 m | Order online |
| 600007154 | RST 4-RKT 4-771/5M | 5 m | Order online |
| 600007155 | RST 4-RKT 4-771/6M | 6 m | Order online |
| 600007156 | RST 4-RKT 4-771/8M | 8 m | Order online |
Specifications
Face View Side 1
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 250 V |
| Rated Impulse Voltage | 2.5 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 4 A |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Black or Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Grey Transluscent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn, Nickel-plated, External thread |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
Cable Data
| Cable Number | 771 |
|---|---|
| Conductor Size | 22 AWG |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 8 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 M |
| Conductor Material | Cu [Bare Copper] |
| Cable Jacket Material | TPE-C |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ø 4.98 mm |
| Wire Insulation Material | PVC-SR |
| Insulated Wire Diameter | Ø 1.19 mm |
| Ambient Temperature (Fixed Installation) | - 40 to 105°C |
| Ambient Temperature (Flex Installation) | - 15 to 90°C |
| Ambient Temperature (Drag Chain Inst) | - 15 to 90°C |
| UL Cable Type | (UL) PLTC 105C SUN RES OR (CSA) C(UR) AWM I/II A/B 105C, 300V |
| Flammability Class (Cable Jacket) | FT1 |
| Cable Characteristics | Mechanical Properties: Excellent flexibility for C-track /drag chain, High Impact Strength, Tear & Abrasion | Resistance Properties: Chemicals such as Acids, Degreaser Solvents, Alcohol and Alkalis, Petroleum Liquids such as Oil, Gas, and Grease, Weld Spark, Sunlight, and Ozone |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Thread |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | TPU |
| Contact Bearer Color, Side 2 | Black or Orange |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Grey Transluscent |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | CuZn, Nickel-plated, Internal thread |
| O-Ring Material, Side 2 | FKM, green or black |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
| Note, Side 2 | Do not connect or disconnect under load. |
Approvals
| UL-File | E315587 |
|---|---|
| UL | Yes |
| VDE | Yes |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
|---|---|
| Note Derating | Notice derating |
