RST 4-RKT 4-643

Product Number: RST 4-RKT 4-643

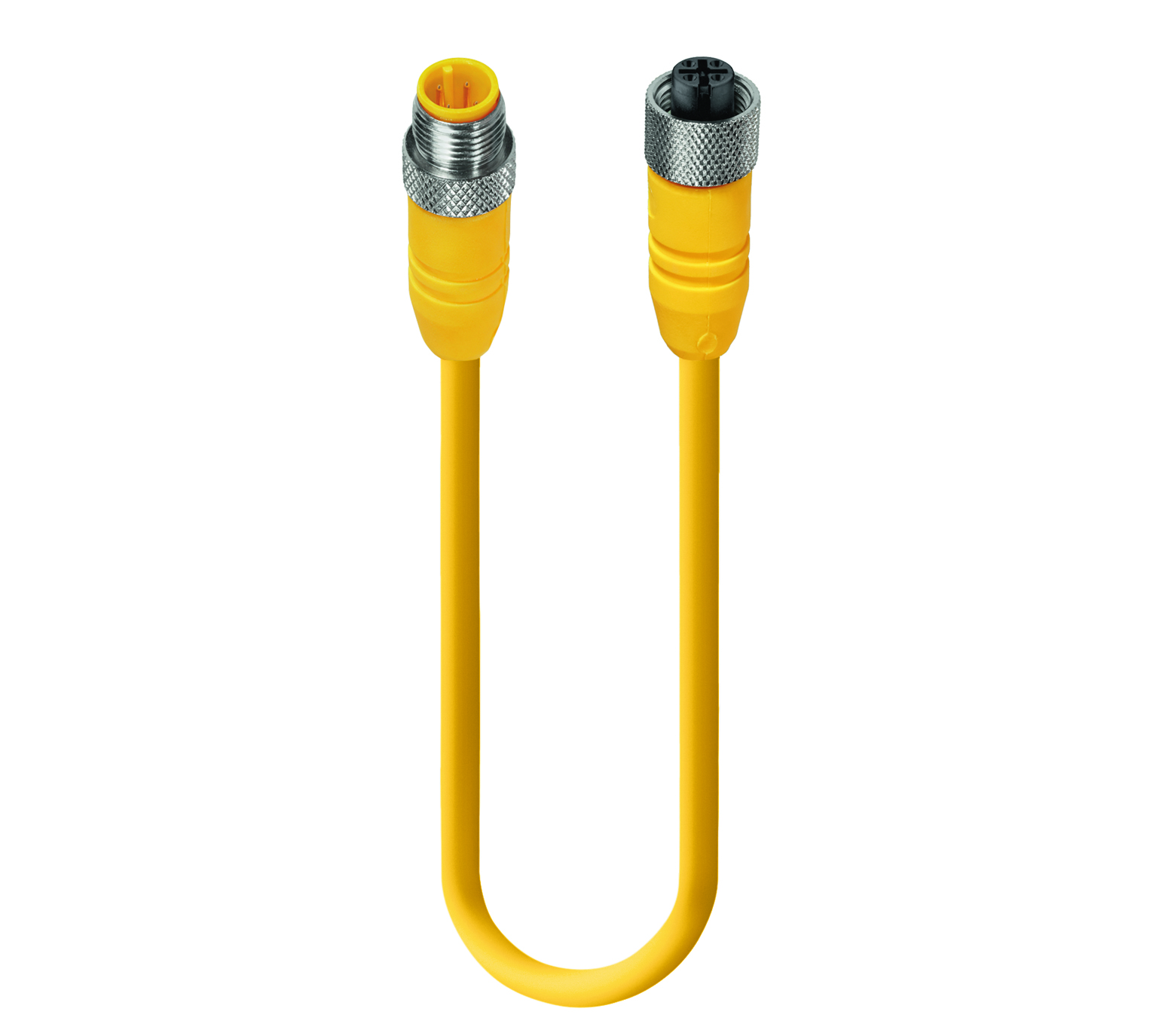

M12 - Male 0° to Female 0° | #Contacts: 4 | 250 V | Cable TPE YE, 22 AWG, IEC | cURus

M12 - Molded Cordset Male Straight to Female Straight | #Contacts: 4 | 250 V / 4 A | Cable TPE Yellow, 4x22 AWG, IEC | cURus 2238

Availability
Global
Status
Active
Orderable items
21
Request a quoteOrder options (21)

Ships from and sold by A5 IT.

Part numbers

RST 4-RKT 4-643 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #Item DescriptionCable LengthOrder
600001888RST 4-RKT 4-643/1M1 mOrder online
600002330RST 4-RKT 4-643/2M2 mOrder online
600002331RST 4-RKT 4-643/4M4 mOrder online
600002332RST 4-RKT 4-643/5M5 mOrder online
600002582RST 4-RKT 4-643/0.3M0.3 mOrder online
600002583RST 4-RKT 4-643/0.6M0.6 mOrder online
600002584RST 4-RKT 4-643/1.5M1.5 mOrder online
600004024RST 4-RKT 4-643/3M3 mOrder online
600005347RST 4-RKT 4-643/10M10 mOrder online
600005349RST 4-RKT 4-643/0.5M0.5 mOrder online
600005351RST 4-RKT 4-643/6M6 mOrder online
600005353RST 4-RKT 4-643/8M8 mOrder online
600005395RST 4-RKT 4-643/20M20 mOrder online
600005396RST 4-RKT 4-643/15M15 mOrder online
600006001RST 4-RKT 4-643/30M30 mOrder online
600006647RST 4-RKT 4-643/25M25 mOrder online
600006648RST 4-RKT 4-643/35M35 mOrder online
600006737RST 4-RKT 4-643/8.5M8.5 mOrder online
600007117RST 4-RKT 4-643/2.5M2.5 mOrder online
600007208RST 4-RKT 4-643/12M12 mOrder online
600007384RST 4-RKT 4-643/40M40 mOrder online

Specifications

Face View Side 1

Product FamilySensor / Actuator Connectors
Connector TypeCordset, double ended
Shielding TypeUnshielded
Voltage Rating250 V
Rated Impulse Voltage2.5 kV
Current Rating4 A

Technical Data Side 1

Side 1 Product Sub FamilyM12 Standard
Side 1 Type of Contact/GenderPin Contact / Male
Connector DesignStraight (0°) Body
Attachment TypeCoupling Screw
Number of Pins4
Coding, Side 1A
Side 1 Contact Resistance≤ 10 mOhm
Insulation Resistance˃ 10^9 Ohm
Mating Cycles≤ 100
Ambient Temperature (Operation)*- 40 °C - + 90 °C
Protection Degree / IP Rating**IP65, IP67
Side 1 Design StandardIEC 61076-2-101
Side 1 Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage CategoryII acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base MaterialCopper-Tin (CuSn)
Side 1 Contact PlatingCopper over Gold (Cu/Au)
Contact Bearer MaterialThermoplastic Polyurethane (TPU)
Contact Bearer ColorYellow
Flammability Class (Contact Bearer)UL 94 HB
Molded Body MaterialPolyurethane (PUR)
Molded Body ColorYellow
Flammability Class (Molded Body)UL 94 HB
Attachment MaterialBrass (Cu/Zn)
Attachment PlatingNickel-plated (Ni)
Fastening Torque (Attachment)M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number643
Conductor Size22 AWG
Number of Wires4
Minimal Bending Radius (Fixed Inst)˃ 7 x D
Minimal Bending Radius (Flexible Inst)˃ 10 x D
Cycles (Bending)˃ 1 M
Conductor MaterialCu
Cable Jacket MaterialThermoplastic Elastomer (TPE)
Cable Jacket ColorYellow
Cable Diameter DØ 5.10 mm (.201”)
Wire Insulation MaterialPolyvinyl Chloride (PVC)
Insulated Wire DiameterØ 1.83 mm [0.072”]
Ambient Temperature (Fixed Installation)- 10 °C - + 105 °C
Ambient Temperature (Flex Installation)- 25 °C - + 105 °C
UL Cable TypePLTC
Flammability Class (Cable Jacket)Jacket FT-4
Cable CharacteristicsOil Resistant, C-Track rated

Technical Data Side 2

Side 2 Product Sub FamilyM12 Standard
Side 2 Type of Contact/GenderSocket Contact / Female
Connector Design, Side 2Straight (0°) Body
Attachment Type, Side 2Coupling Nut
Number of Pins, Side 24
Coding, Side 2A
Contact Resistance, Side 2≤ 10 mOhm
Insulation Resistance, Side 2˃ 10^9 Ohm
Mating Cycles, Side 2≤ 100
Ambient Temperature (Operation), Side 2*- 40 °C - + 90 °C
Operating Temperature (UL), Side 2max. + 50 °C
Protection Degree / IP Rating, Side 2**IP65, IP67
Design Standard, Side 2IEC 61076-2-101
Pollution Degree, Side 23 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2Copper-Tin (CuSn)
Contact Plating, Side 2Copper over Gold (Cu/Au)
Contact Bearer Material, Side 2Thermoplastic Polyurethane (TPU)
Contact Bearer Color, Side 2Yellow
Flammability Class (Contact Bearer), Side 2UL 94 HB
Molded Body Material, Side 2Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2Yellow
Flammability Class (Molded Body), Side 2UL 94 HB
Attachment Material, Side 2Brass (Cu/Zn)
Attachment Plating, Side 2Nickel-plated (Ni)
O-Ring Material, Side 2FKM, green
Fastening Torque (Attachment), Side 2M 12x1: (50-60) Ncm, hand-tight

Approvals

UL-FileE104696
ULUL 2238; cURus

Safety & Environmental Compliance

RoHS CompliantYes
