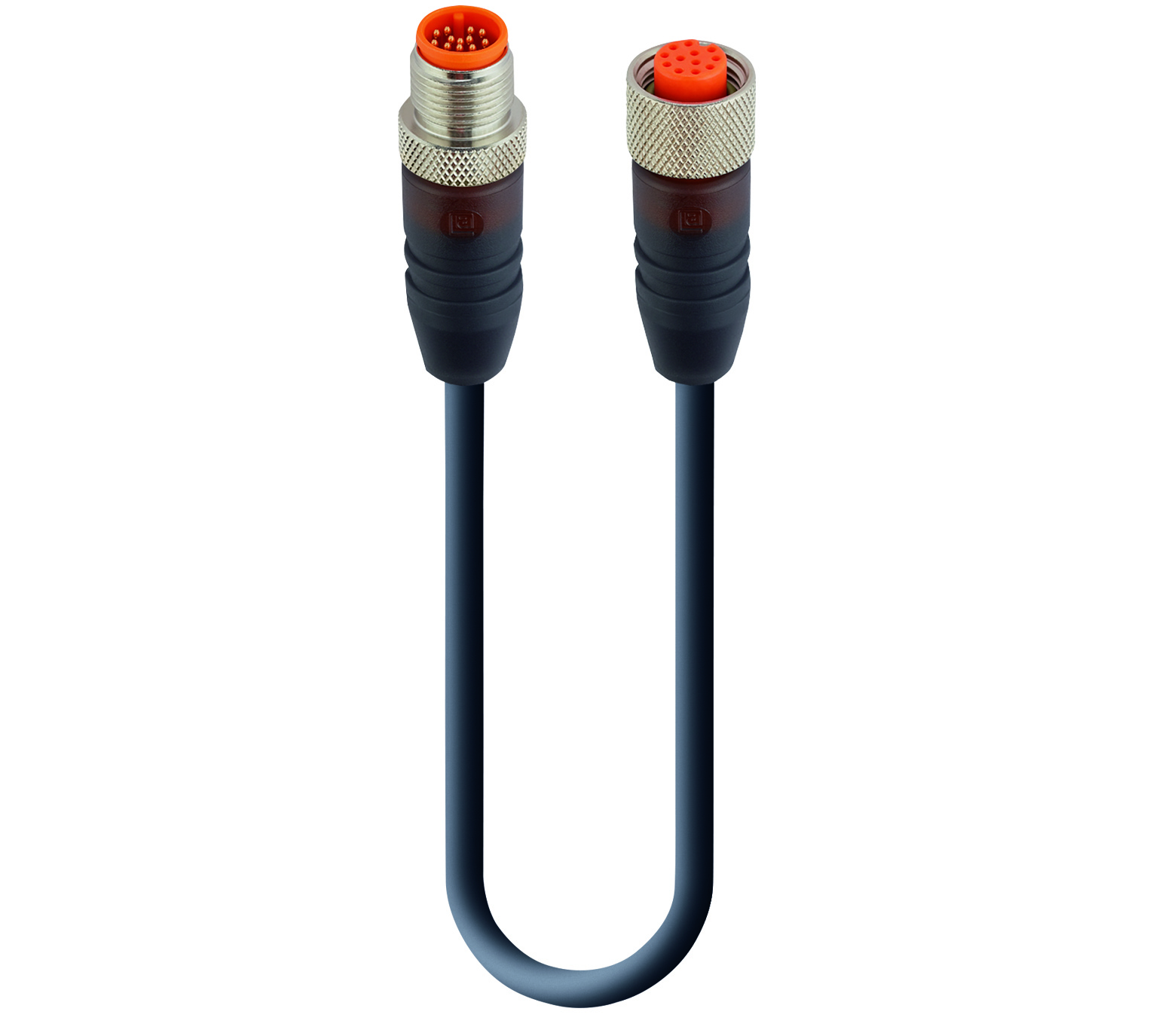

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 12-pin M12 Standard connector to female straight A-coded translucent 12-pin M12 Standard connector, 30 V AC/DC, 1.5 A; PUR black cable, 12-wires, 0.25 mm2
Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 12-pin M12 Standard connector to female straight A-coded translucent 12-pin M12 Standard connector, 30 V AC/DC, 1.5 A; PUR black cable, 12-wires, 0.25 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
RST 12-RKT 12-346 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 9272 | RST 12-RKT 12-346/0,6 M | 0.6 m | Order online |
| 934637017 | RST 12-RKT 12-346/10 M | 10 m | Order online |
| 105882 | RST 12-RKT 12-346/2 M | 2 m | Order online |
| 22555 | RST 12-RKT 12-346/20 M | 20 m | Order online |
| 934636311 | RST 12-RKT 12-346/3 M | 3 m | Order online |
| 106316 | RST 12-RKT 12-346/5 M | 5 m | Order online |
| 25715 | RST 12-RKT 12-346/0.3 M | 0.3 m | Order online |
| 25716 | RST 12-RKT 12-346/0,5 M | — | Order online |
| 20911 | RST 12-RKT 12-346/0,65 M | — | Order online |
| 25718 | RST 12-RKT 12-346/6 M | — | Order online |
| 8104 | RST 12-RKT 12-346/1 M | — | Order online |
| 30993 | RST 12-RKT 12-346/1,5 M | — | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 30 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 30 V AC/DC |
| Current Rating | 1.5 A |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating | Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 2 | blue |
| Pin 3 | white |
| Pin 4 | green |
| Pin 5 | pink |
| Pin 6 | yellow |
| Pin 7 | black |
| Pin 8 | grey |
| Pin 9 | red |
| Pin 10 | purple |
| Pin 11 | grey-pink |
| Pin 12 | red-blue |
Face View Side 2
| Pin 1 | brown |
|---|---|
| Pin 2 | blue |
| Pin 3 | white |
| Pin 4 | green |
| Pin 5 | pink |
| Pin 6 | yellow |
| Pin 7 | black |
| Pin 8 | grey |
| Pin 9 | red |
| Pin 10 | purple |
| Pin 11 | grey-pink |
| Pin 12 | red-blue |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 12 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Translucent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 346 |
|---|---|
| Conductor Size | 0.25 mm2 |
| Number of Wires | 12 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 2 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black matt similarly RAL 9005 |
| Cable Diameter D | ø 6.40 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.20 ± 0.05 mm |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Cable Characteristics | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; LABS-free of lacquer wetting disturbing substances; Coldness flexibility, Suitable for drag chain applications |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 12 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 25 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PBT |
| Contact Bearer Color, Side 2 | Orange |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Translucent |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| O-Ring Material, Side 2 | FKM, green |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
| Oil Resistance | Good chemical and oil resistance |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
