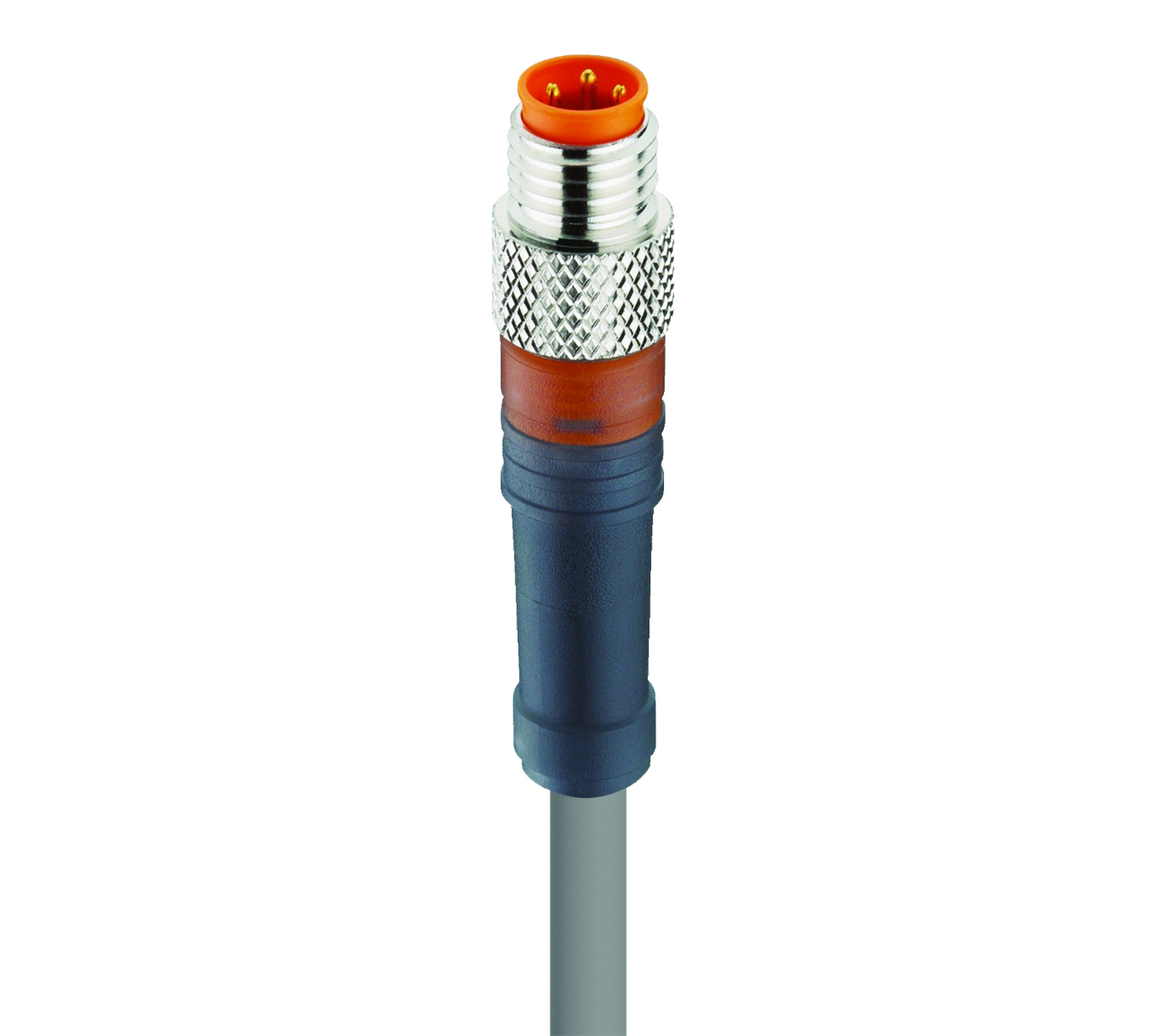

M8 Standard Sensor/Actuator Single-Ended Cordset: Male, straight, 3-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC grey cable, 3-wires, 0.34 mm2
M8 Standard Sensor/Actuator Single-Ended Cordset: Male, straight, 3-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC grey cable, 3-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
RSMV 3-106 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 59473 | RSMV 3-106/10 M | 10 m | Order online |
| 59472 | RSMV 3-106/15 M | 15 m | Order online |
| 59469 | RSMV 3-106/20 M | 20 m | Order online |
| 2271 | RSMV 3-106/25 M | 25 m | Order online |
| 108315 | RSMV 3-106/40 M | 40 m | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M8 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-104 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 3 | blue |
| Pin 4 | black |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Translucent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
Circuitry
| Fastening Torque (Attachment) | M 8x1: 30 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 106 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 3 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 3 x D |
| Conductor Material | Cu |
| Cable Jacket Material | PVC TM2 |
| Cable Jacket Color | grey RAL 7000 |
| Cable Diameter D | ø 4.90 mm |
| Wire Insulation Material | PVC TI2 |
| Insulated Wire Diameter | ø 1.60 mm |
| Ambient Temperature (Fixed Installation) | - 30 °C - + 70 °C |
| Ambient Temperature (Flex Installation) | + 5 °C - + 70 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1 , VDE 0482-265-2-1 , EN 50265-2-1 |
| Cable Characteristics | Mainly plasticizer diffusion free; Exclusion of silicone |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | Good chemical and oil resistance |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
