Product Number: RSM 5-RKM 5-293

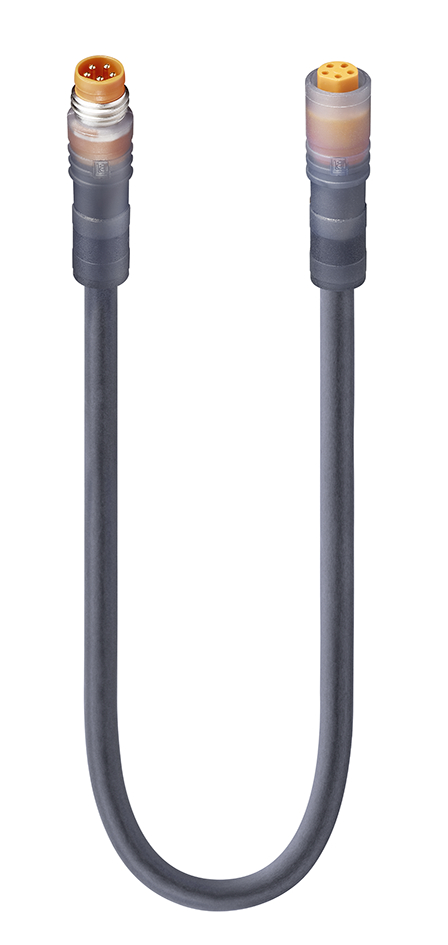

Sensor/Actuator Double-Ended Cordset: Male straight B-coded translucent 5-pin M8 Snap-In connector to female straight B-coded translucent 5-pin M8 Snap-In connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm2

Availability: Global
Status: Active
Orderable items: 8

Ships from and sold by A5 IT.

Part numbers

RSM 5-RKM 5-293 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
934894017	RSM 5-RKM 5-293/0,3 M	0.3 m	Order online
934894018	RSM 5-RKM 5-293/0,6 M	0.6 m	Order online
934894019	RSM 5-RKM 5-293/1 M	1 m	Order online
934894020	RSM 5-RKM 5-293/2 M	2 m	Order online
934894021	RSM 5-RKM 5-293/3 M	3 m	Order online
934894022	RSM 5-RKM 5-293/5 M	5 m	Order online
934894023	RSM 5-RKM 5-293/10 M	10 m	Order online
934894024	RSM 5-RKM 5-293/15 M	15 m	Order online

Specifications

Information

Product Family	Sensor / Actuator Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	60 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	0.8 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Rated Current (UL)*	3 A
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Face View Side 1

Pin 1	brown
Pin 2	white
Pin 3	blue
Pin 4	black
Pin 5	grey

Face View Side 2

Pin 1	brown
Pin 2	white
Pin 3	blue
Pin 4	black
Pin 5	grey

Technical Data Side 1

Side 1 Product Sub Family	M8 Snap-In
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Snap- and Screw-Locking
Number of Pins	5
Coding, Side 1	B
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 75 °C
Protection Degree / IP Rating**	IP65 (in combination with female M8 Snap-In connector); IP65, IP67 (in combination with female M8 Standard connector)
Side 1 Design Standard	IEC 61076-2-104
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA 66 GF
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Note	Do not connect or disconnect under load.

Cable Data

Cable Number	293
Conductor Size	0.34 mm2
Number of Wires	5
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 5.0 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.30 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness Flexibility

Technical Data Side 2

Side 2 Product Sub Family	M8 Snap-In
Side 2 Type of Contact/Gender	Female
Connector Design, Side 2	Straight
Attachment Type, Side 2	Snap-Locking
Number of Pins, Side 2	5
Coding, Side 2	B
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C
Operating Temperature (UL), Side 2	max. + 75 °C
Protection Degree / IP Rating, Side 2**	IP65
Design Standard, Side 2	IEC 61076-2-104
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PA 66 GF
Contact Bearer Color, Side 2	Orange
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Translucent
Flammability Class (Molded Body), Side 2	UL 94 HB

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating
