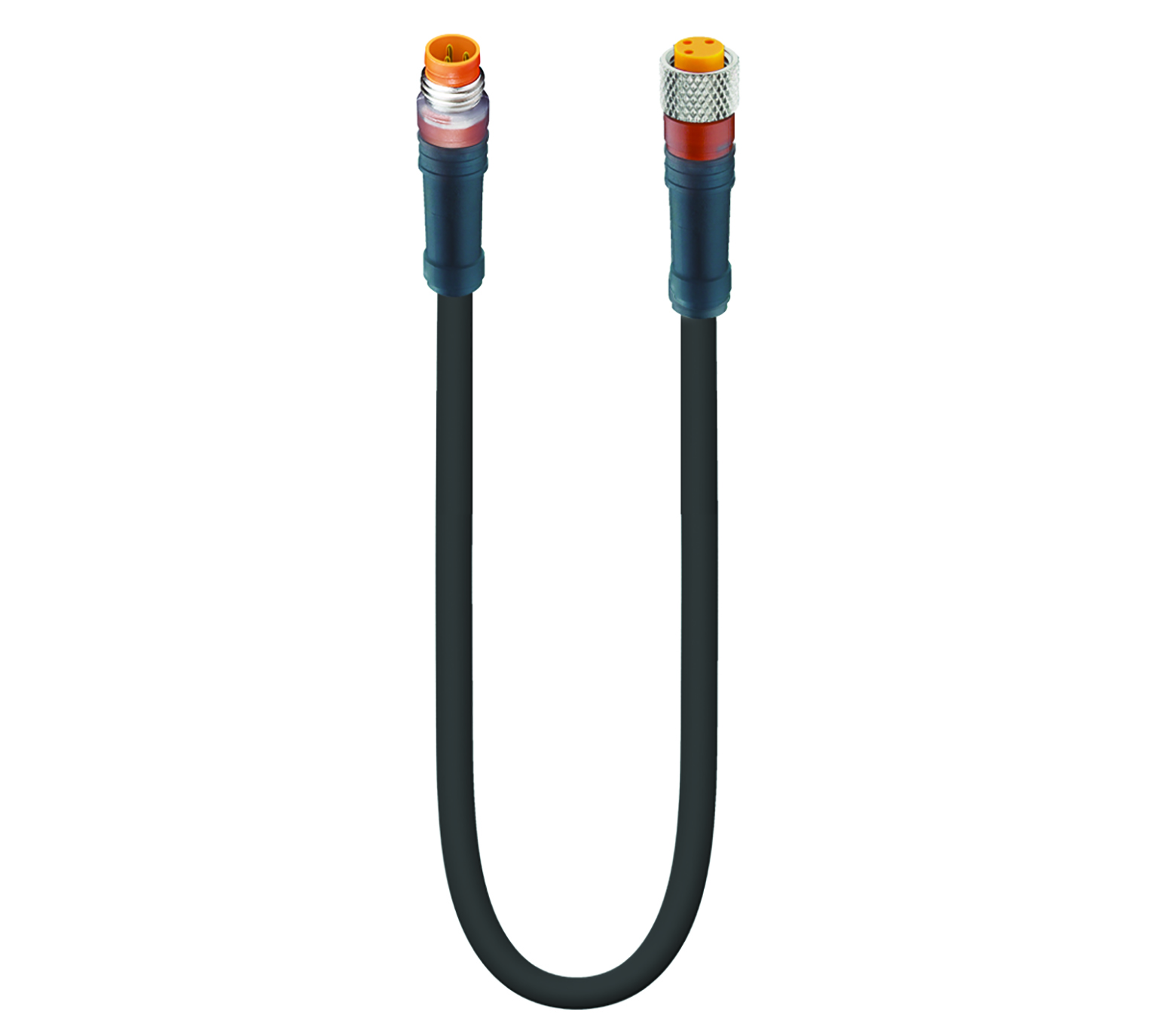

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 3-pin M8 Snap-In connector to female straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PVC black cable, 3-wires, 0.34 mm2
Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 3-pin M8 Snap-In connector to female straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PVC black cable, 3-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSM 3-RKMV 3-294 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 4315 | RSM 3-RKMV 3-294/5 M | 5 m | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 30 V AC/DC |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 4 A |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating | Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 3 | blue |
| Pin 4 | black |
Face View Side 2
| Pin 1 | brown |
|---|---|
| Pin 3 | blue |
| Pin 4 | black |
Technical Data Side 1
| Side 1 Product Sub Family | M8 Snap-In |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Snap- and Screw-Locking |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Operating Temperature (UL) | max. + 70 °C |
| Protection Degree / IP Rating** | IP65 (in combination with female M8 Snap-In connector); IP65, IP67 (in combination with female M8 Standard connector) |
| Side 1 Design Standard | IEC 61076-2-104 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Translucent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 294 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PVC class 43 |
| Cable Jacket Color | black |
| Cable Diameter D | ø 5.0 ± 0.20 mm |
| Wire Insulation Material | SR-PVC |
| Insulated Wire Diameter | ø 1.45 mm |
| Ambient Temperature (Fixed Installation) | - 30 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 10 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 10 °C - + 60 °C |
| UL Cable Type | AWM: 2464 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
| Cable Characteristics | Free of lacquer wetting disturbing substances; Exclusion of silicone |
Technical Data Side 2
| Side 2 Product Sub Family | M8 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 3 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 90 °C |
| Operating Temperature (UL), Side 2 | max. + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-104 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | TPU |
| Contact Bearer Color, Side 2 | Orange |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Translucent |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| O-Ring Material, Side 2 | FKM, green |
| Fastening Torque (Attachment), Side 2 | M 8x1: 30 Ncm, hand-tight |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | Good chemical and oil resistance |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
