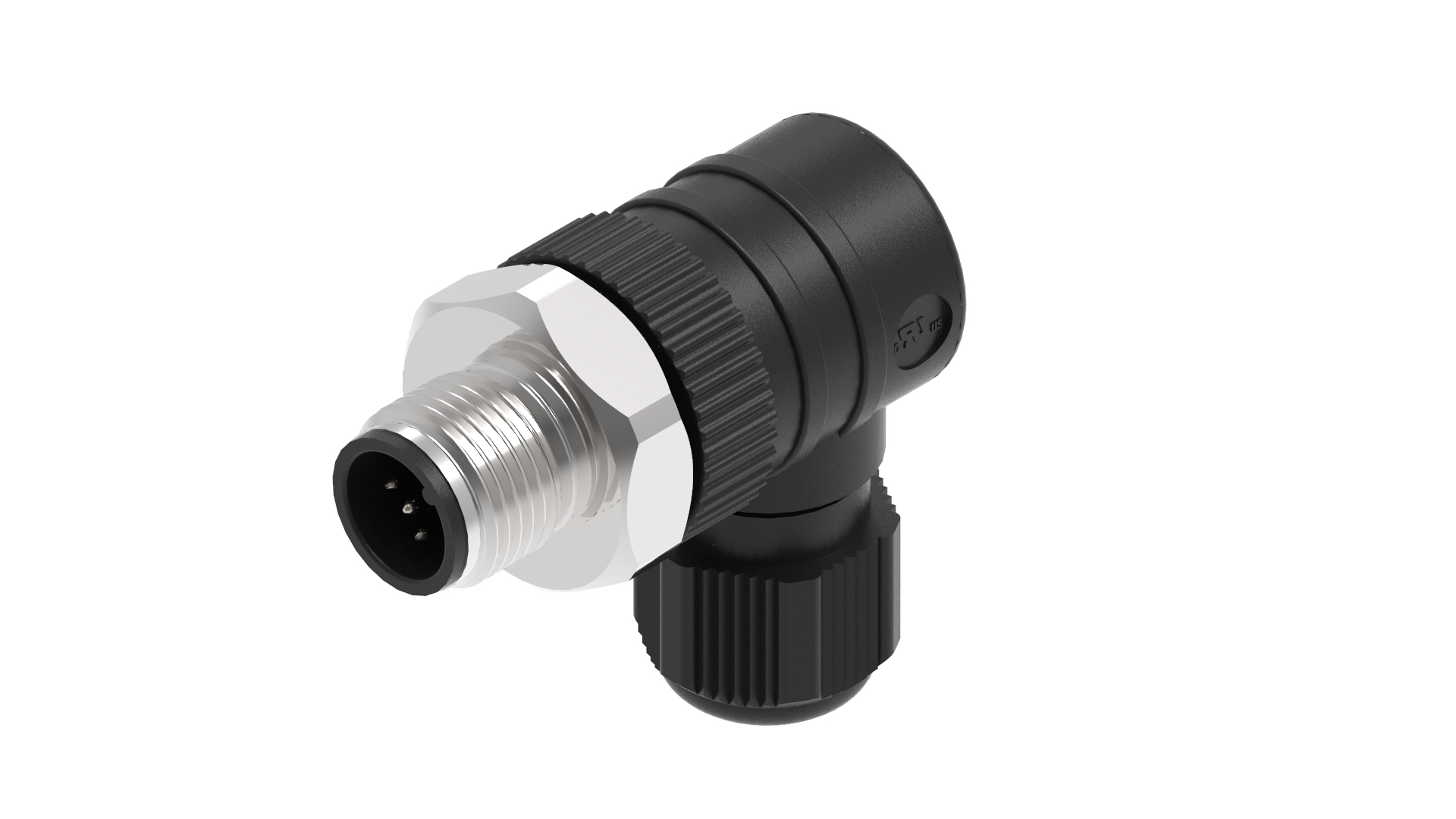

M12 Field Attachable Connector: male, angled, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
M12 Field Attachable Connector: male, straight, 3-pin, A-coded, unshielded, black housing, screw type, 230 V AC/DC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSCWN 5/7 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 46901 | RSCWN 5/7 | Order online |
Specifications
Face View
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | male |
| Connector Design | angled |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Attachment Type | Coupling Screw |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 30 V AC/DC |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | screw terminal |
| Maximum Wire Cross Section | max. 0,75 mm2 |
| Cable Gland | PG7 |
| Strain-Relief | clamping cage |
| Suitable Cables | Ø4 - Ø6 mm |
| Ambient Temperature (Operation)* | -25°C to +85°C |
| Operating Temperature (UL) | max. 65 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | CuSnZn |
| Contact Bearer Material | PA |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-2 |
| Housing Material | PBT |
| Housing Color | black |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | PBT |
| Cable Gland Gasket | NBR, black |
| Attachment Material | stainless steel |
| O-Ring Material | NBR |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
