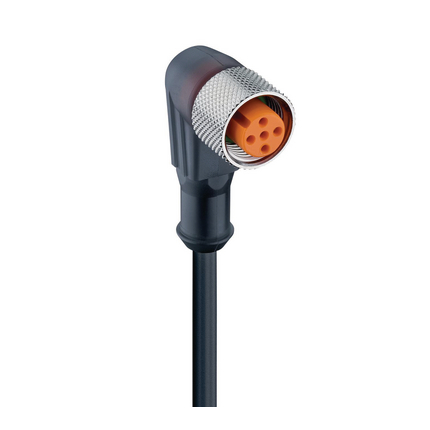

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC black cable, 5-wires, 0.34 mm2
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC black cable, 5-wires, 0.34 mm2
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 2
Part numbers
RKWT 5-MF56 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| RKWT 5-MF56/0200 | RKWT 5-MF56 | 2 m | Order online |
| RKWT 5-MF56/1000 | RKWT 5-MF56 | 10 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Angled |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 60 V |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Face View
| Pin 1 | Brown |
|---|---|
| Pin 2 | White |
| Pin 3 | Blue |
| Pin 4 | Black |
| Pin 5 | Grey |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Translucent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| O-Ring Material | FKM, Green |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | MF56 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 5 |
| Minimal Bending Radius (Fixed Inst) | 4 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Diameter D | ø 5.7 ± 0.20 mm |
| Wire Insulation Material | PVC |
| Ambient Temperature (Fixed Installation) | -30 °C - +80 °C |
| Flammability Class (Cable Jacket) | IEC60332-1/FT-2 |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
