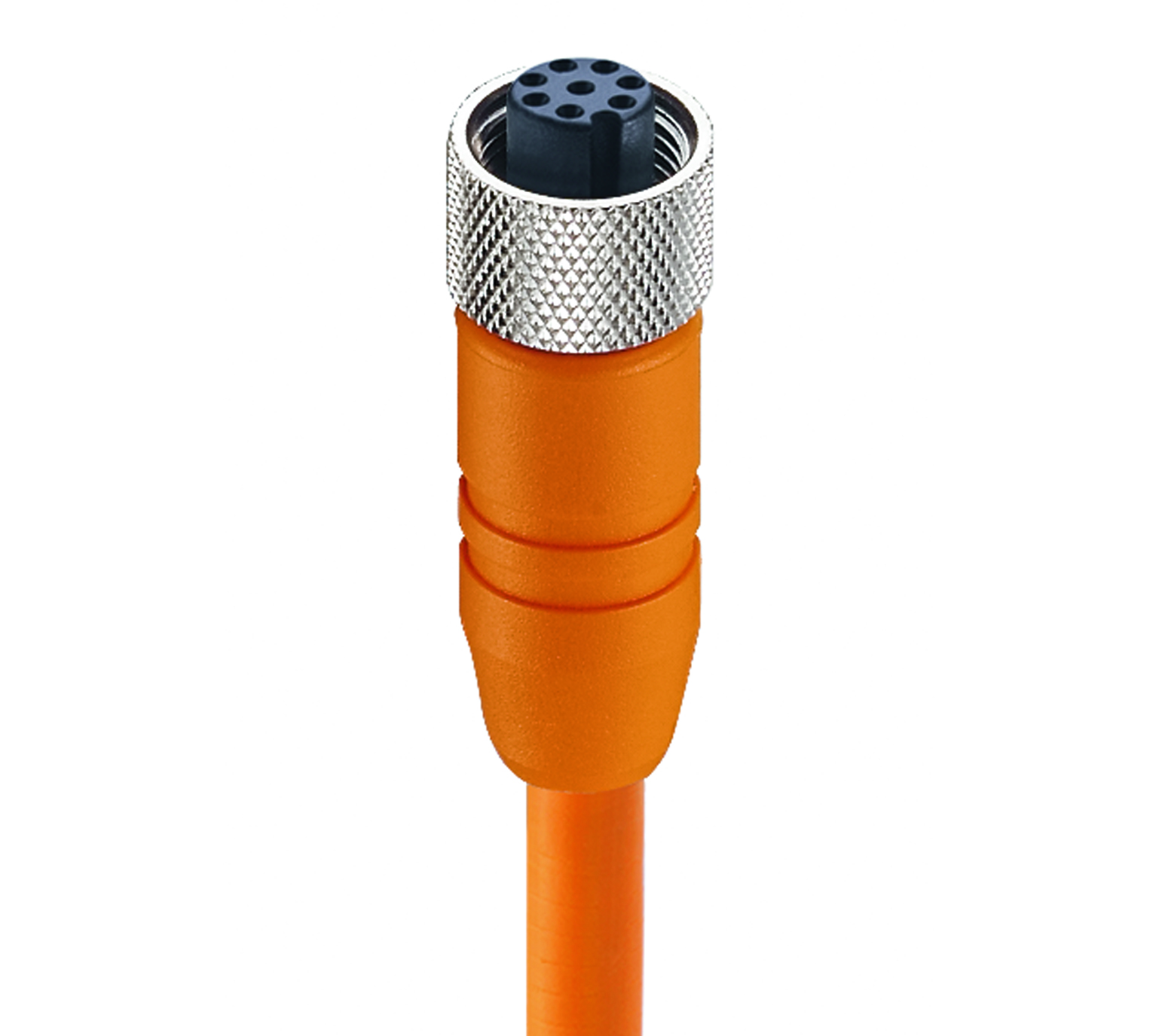

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 8-pin, A-coded, shielded, orange body, 30 V AC/DC, 2 A; PVC orange cable, 8-wires, 0.25 mm2
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 8-pin, A-coded, shielded, orange body, 30 V AC/DC, 2 A; PVC orange cable, 8-wires, 0.25 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
RKTS 8-184 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Rated Current | Order |
|---|---|---|---|---|
| 11423 | RKTS 8-184/2 M | 2 m | 2 A | Order online |
| 11424 | RKTS 8-184/5 M | 5 m | 2 A | Order online |
| 17567 | RKTS 8-184/20 M | 20 m | 2 A | Order online |
| 25581 | RKTS 8-184/25 M | 25 m | 2 A | Order online |
| 26166 | RKTS 8-184/30 M | 30 m | 2 A | Order online |
| 934636174 | RKTS 8-184/50 M | 50 m | 2 A | Order online |
| 934636477 | RKTS 8-184/40 M | 40 m | 2 A | Order online |
| 8853 | RKTS 8-184/1 M | 1 m | 2 A | Order online |
| 11422 | RKTS 8-184/10 M | 10 m | 2 A | Order online |
| 17998 | RKTS 8-184/15 M | 15 m | 2 A | Order online |
| 9187 | RKTS 8-184/3 M | 3 m | 2 A | Order online |
| 600002764 | RKTS 8-184/5 M | 5 m | 2 A | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 8 |
| Coding, Side 1 | A |
| Shielding Type | Shielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 30 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 30 V AC/DC |
| Current Rating | 2 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Update and Revision | Revision Number: 0.68 Revision Date: 02-20-2026 |
Face View
| Pin 1 | white |
|---|---|
| Pin 2 | brown |
| Pin 3 | green |
| Pin 4 | yellow |
| Pin 5 | grey |
| Pin 6 | pink |
| Pin 7 | blue |
| Pin 8 | red |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
| O-Ring Material | FKM, green |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 184 |
|---|---|
| Conductor Size | 0.25 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | orange |
| Cable Diameter D | ø 6.6 ± 0.20 mm |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | ø 1.30 mm |
| Overall Shield (Cable) | C-Shield |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 105 °C |
| Ambient Temperature (Flex Installation) | + 5 °C - + 105 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1 , VDE 0482-265-2-1 , EN 50265-2-1 |
| Cable Characteristics | Mainly plasticizer diffusion free; Exclusion of silicone |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | Good chemical and oil resistance |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
History
| Update and Revision | Revision Number: 0.68 Revision Date: 02-20-2026 |
|---|
