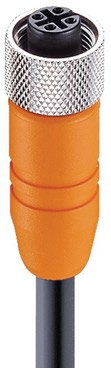

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PU based black cable, 4-wires, 0.25 mm2
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PU based black cable,4-wires, 0.25 mm2
- Availability
- Asia Pacific
- Status
- Active
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Shielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | -30 °C - +80 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Face View
| Pin 1 | Brown |
|---|---|
| Pin 2 | White |
| Pin 3 | Blue |
| Pin 4 | Black |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| O-Ring Material | FKM,Green |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | MF6646 |
|---|---|
| Conductor Size | 0.25 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | 4 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | Special compound Polyurethane based |
| Cable Jacket Color | Black |
| Cable Diameter D | ø 4.97 mm |
| Wire Insulation Material | PVC |
| Ambient Temperature (Fixed Installation) | -30 °C - +80 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1/FT-2 |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
