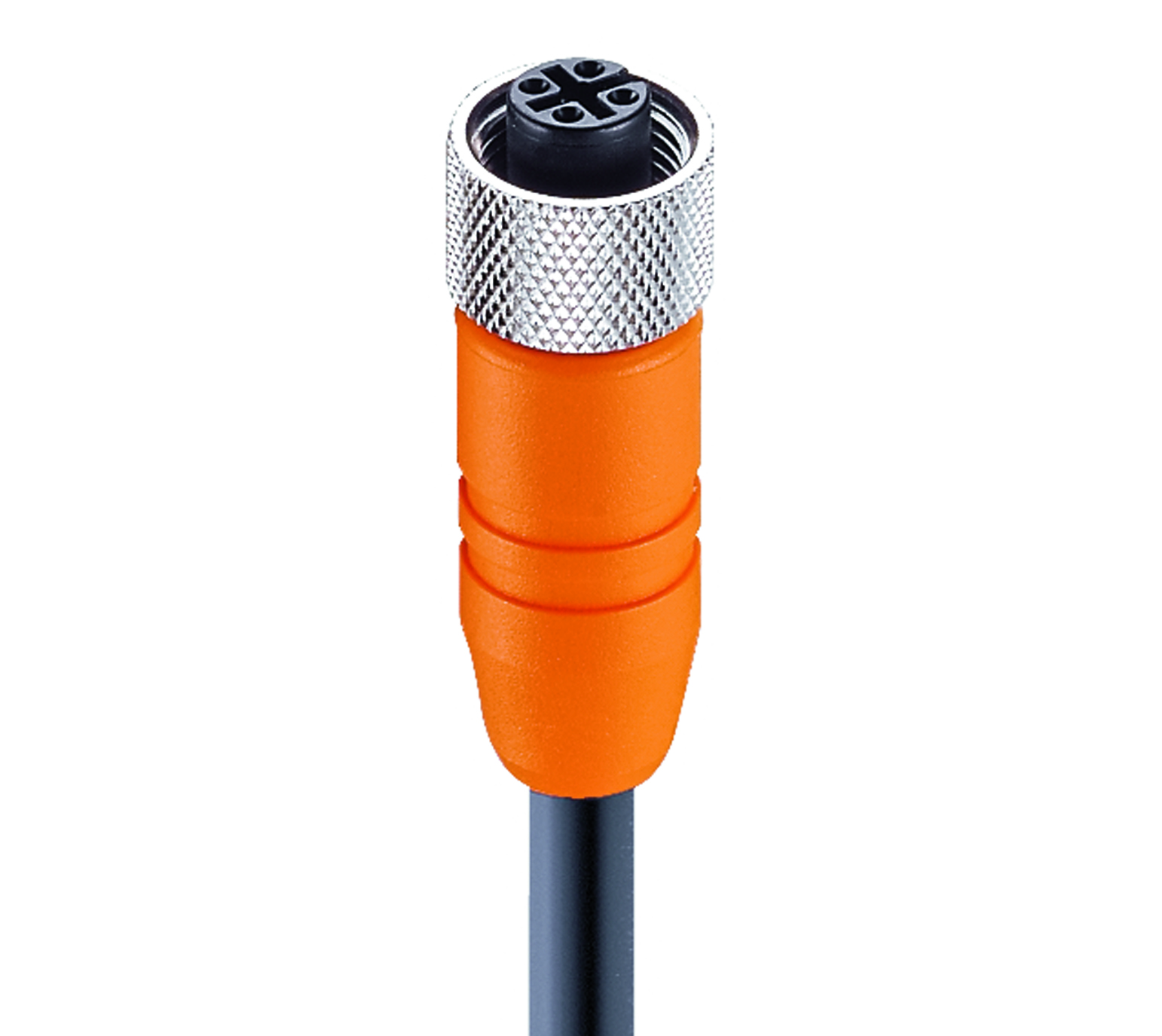

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm2
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, shielded, orange body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 26
Part numbers
RKTS 4-288 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Rated Current | Order |
|---|---|---|---|---|
| 1907 | RKTS 4-288/35 M | 35 m | 4 A | Order online |
| 4429 | RKTS 4-288/1,5 M | 1.5 m | 4 A | Order online |
| 5528 | RKTS 4-288/0,3 M | 0.3 m | 4 A | Order online |
| 5529 | RKTS 4-288/0,5 M | 0.5 m | 4 A | Order online |
| 49202 | RKTS 4-288/10 M | 10 m | 4 A | Order online |
| 49203 | RKTS 4-288/2 M | 2 m | 4 A | Order online |
| 49205 | RKTS 4-288/5 M | 5 m | 4 A | Order online |
| 65773 | RKTS 4-288/30 M | 30 m | 4 A | Order online |
| 65828 | RKTS 4-288/25 M | 25 m | 4 A | Order online |
| 92031 | RKTS 4-288/6 M | 6 m | 4 A | Order online |
| 103195 | RKTS 4-288/3 M | 3 m | 4 A | Order online |
| 934636936 | RKTS 4-288/1 M | 1 m | 4 A | Order online |
| 934637108 | RKTS 4-288/50 M | 50 m | 4 A | Order online |
| 934637552 | RKTS 4-288/40 M | 40 m | 4 A | Order online |
| 49314 | RKTS 4-288/15 M | 15 m | 4 A | Order online |
| 60434 | RKTS 4-288/20 M | 20 m | 4 A | Order online |
| 21637 | RKTS 4-288/12 M | 12 m | 4 A | Order online |
| 21638 | RKTS 4-288/18 M | 18 m | 4 A | Order online |
| 8264 | RKTS 4-288/7,5 M | 7.5 m | 4 A | Order online |
| 600003885 | RKTS 4-288/10 M | 10 m | 4 A | Order online |
| 600003889 | RKTS 4-288/5 M | 5 m | 4 A | Order online |
| 600004541 | RKTS 4-288/2 M | 2 m | 4 A | Order online |
| 6X0065828 | RKTS 4-288/25 M | 25 m | 4 A | Order online |
| 630065773 | RKTS 4-288/30 M | 30 m | 4 A | Order online |
| 23372 | RKTS 4-288/11 M | — | 4 A | Order online |
| 34682 | RKTS 4-288/8 M | — | 4 A | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Shielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 250 V AC |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Operating Temperature (UL) | max. + 50 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Update and Revision | Revision Number: 0.75 Revision Date: 02-20-2026 |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | TPU |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
| O-Ring Material | FKM, green |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 288 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 M |
| Cycles (Torsion) | ˃ 1 M @ ± 180 °/1 m |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black |
| Cable Diameter D | ø 5.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.30 mm |
| Overall Shield (Cable) | Mesh wire |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Cable Characteristics | Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
| Oil Resistance | Good chemical and oil resistance |
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
History
| Update and Revision | Revision Number: 0.75 Revision Date: 02-20-2026 |
|---|
